DORMER A9763.2X155 ADX / PFX Drills

Product Code: A9763.2X155

$55.07$50.06 Ex. GST

Product Code: A9763.2X155 SKU A9763.2X155 Categories , ,

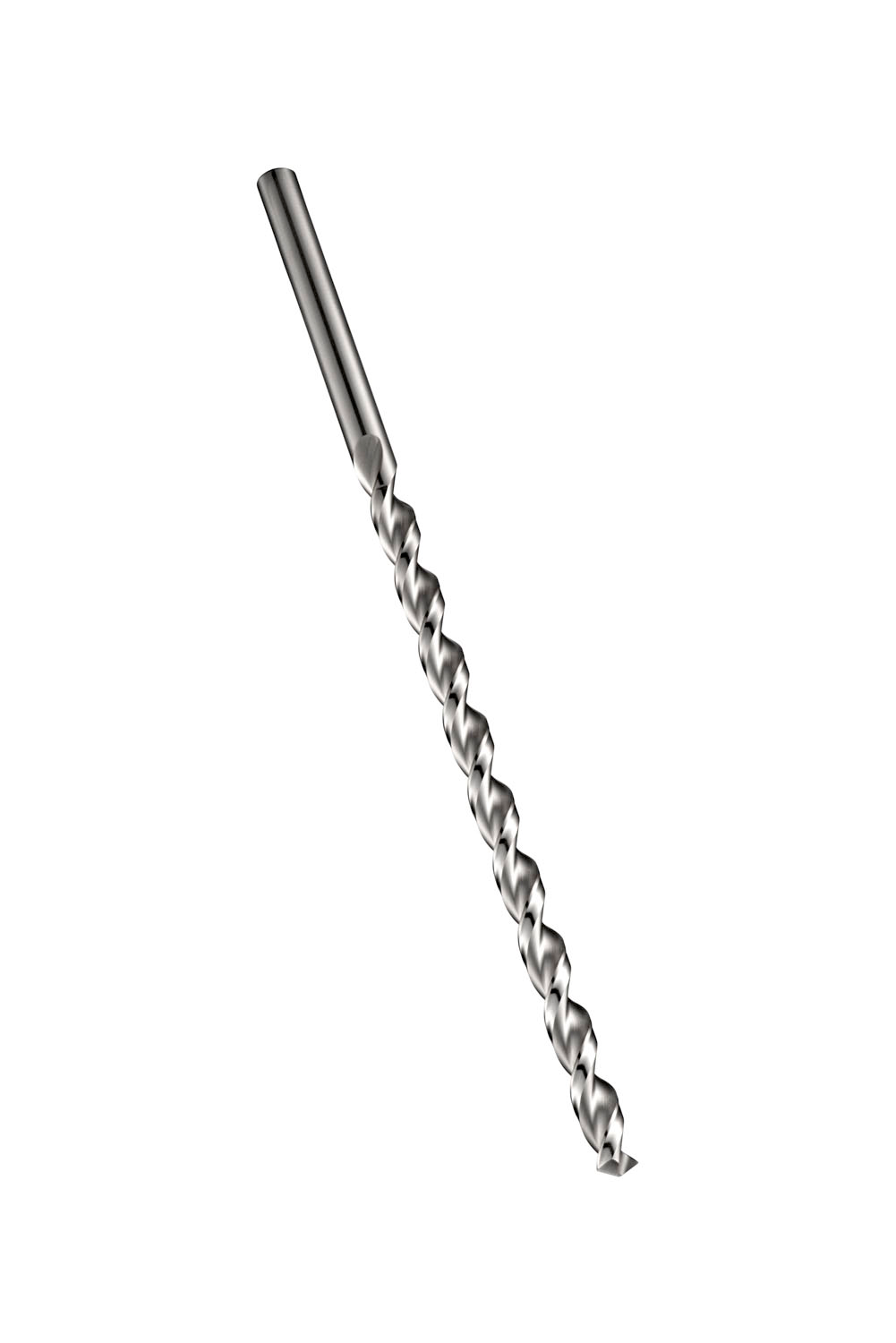

DORMER A9763.2X155 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

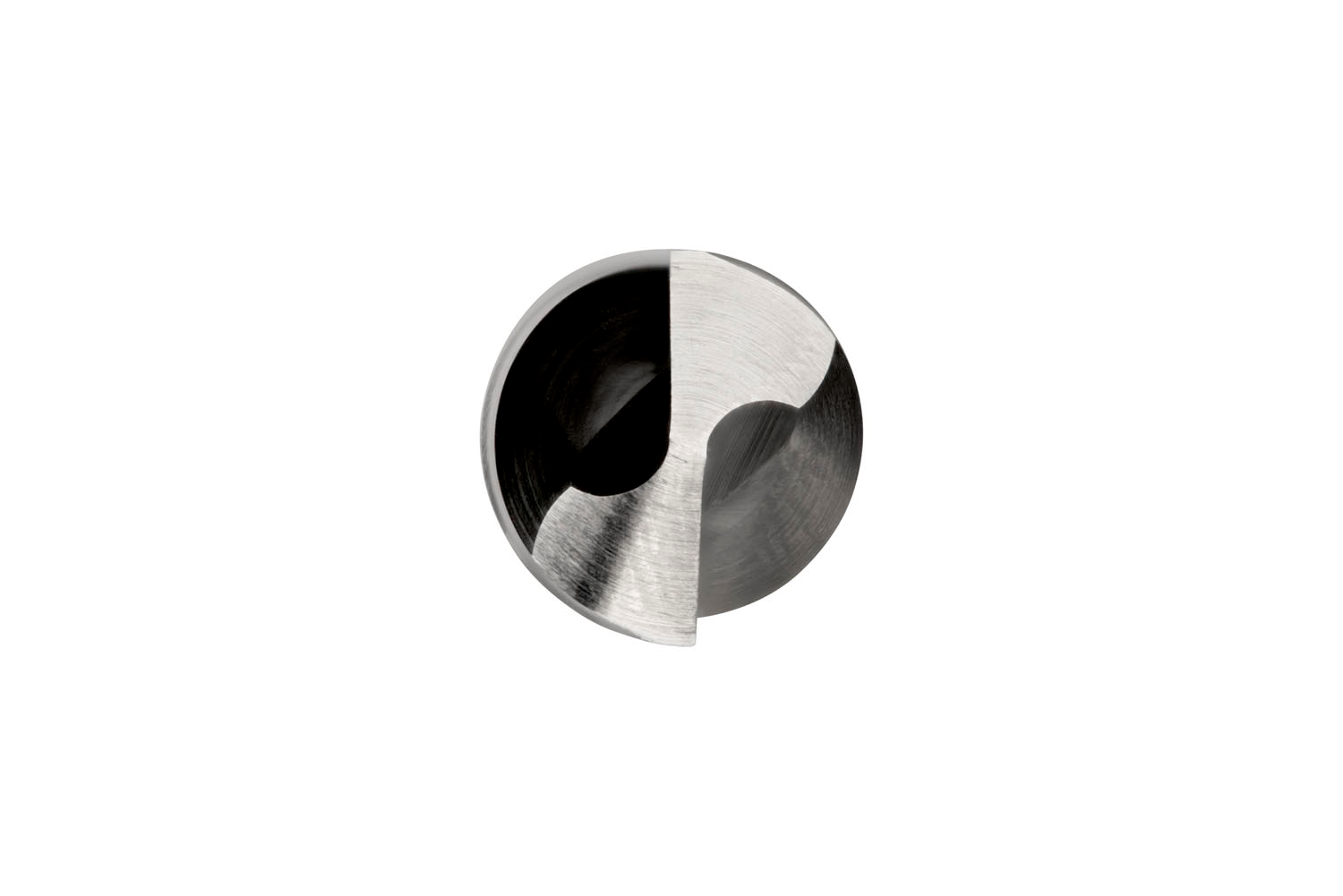

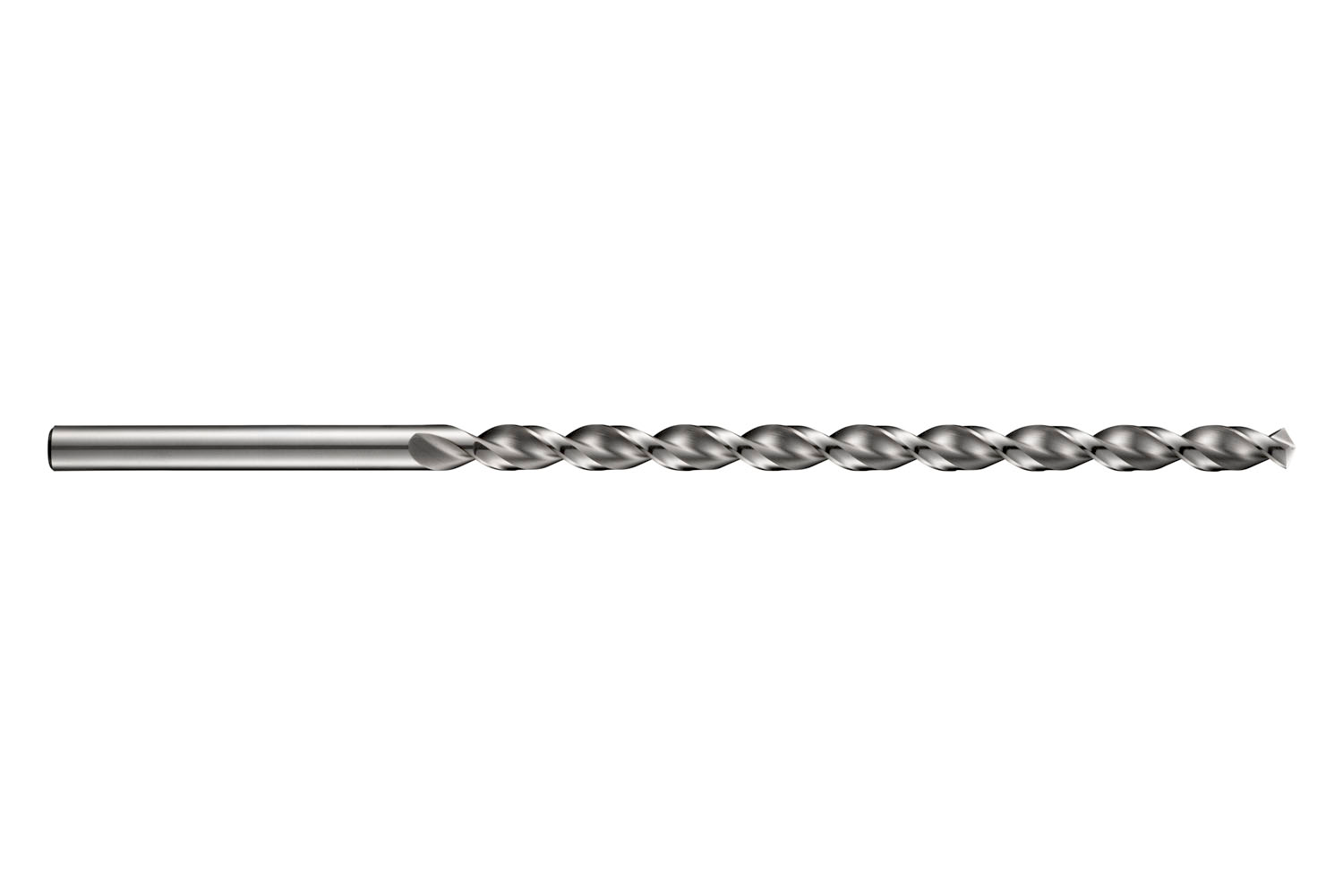

Extra long length PFX drill with straight shank, diameter 3.2mm with an overall length of 155mm and flute length of 105mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

Additional information

Weight 0.0535 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760279793
Product number (SAP): 86012336
Ordering code ANSI: A9763.2X155
Product Line: PFX
Gross weight – grams: 13.9
Cutting diameter – millimeter (DC): 3.2 mm
Cutting diameter – inch (DC): 0.126 inch
Length chip flute – millimeter (LCF): 105 mm
Overall length – millimeter (OAL): 155 mm
Connection diameter – millimeter (DCON MS): 3.2 mm
Length chip flute – inch (LCF): 4.1339 inch
ISO: A9763.2X155

Brand

DORMER
