DORMER A9764.2X175 ADX / PFX Drills

Product Code: A9764.2X175

$68.55$62.32 Ex. GST

Product Code: A9764.2X175 SKU A9764.2X175 Categories , ,

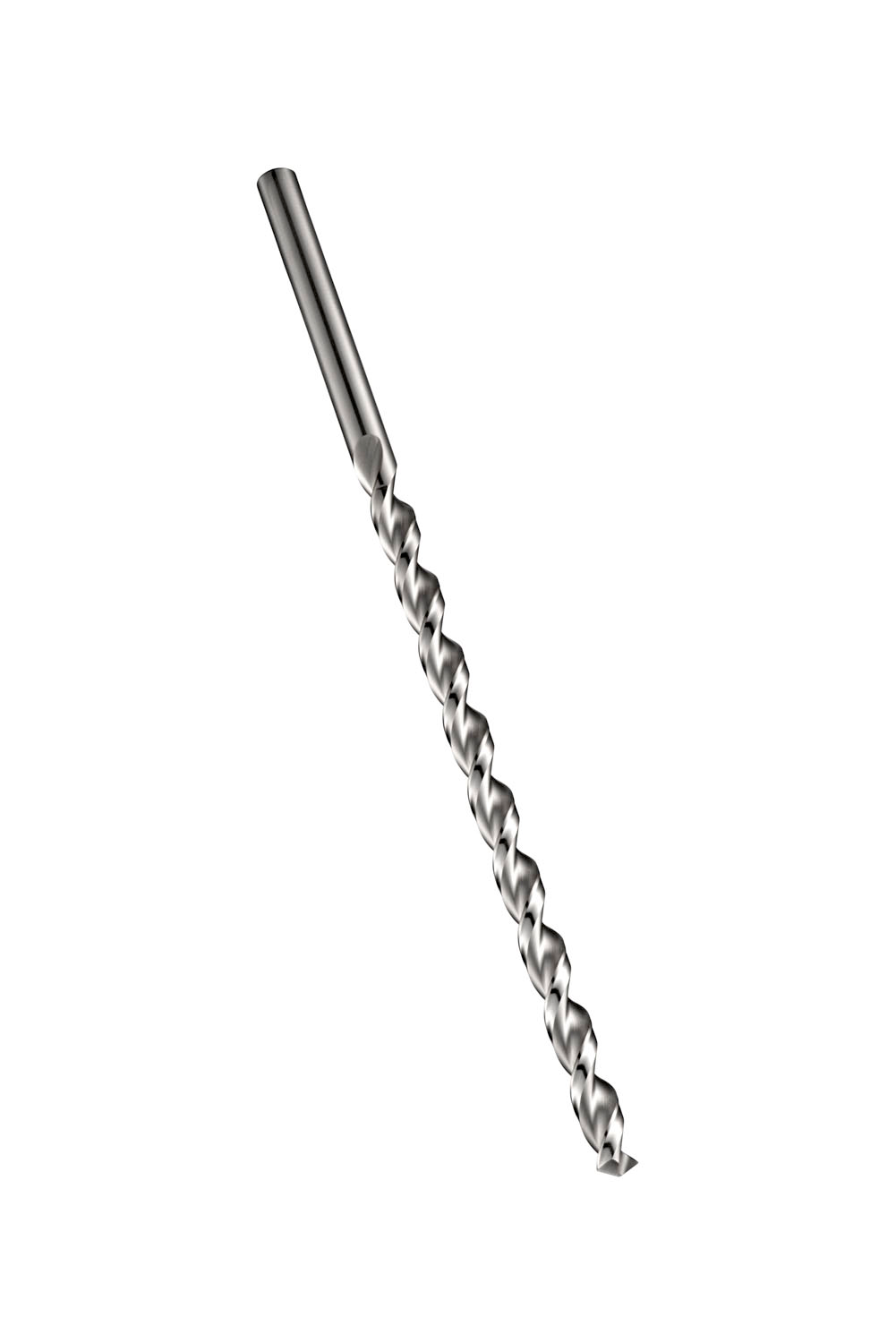

DORMER A9764.2X175 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

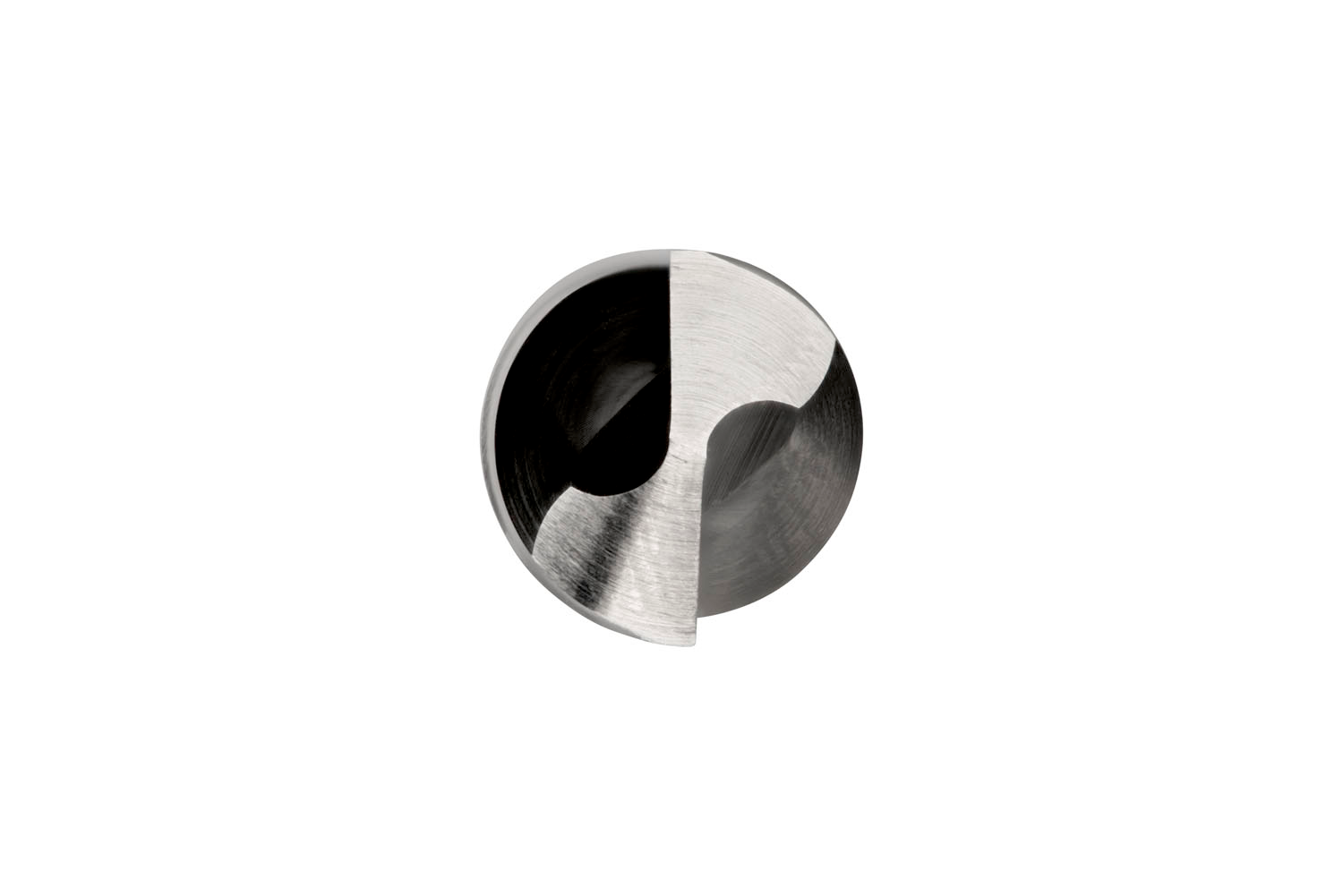

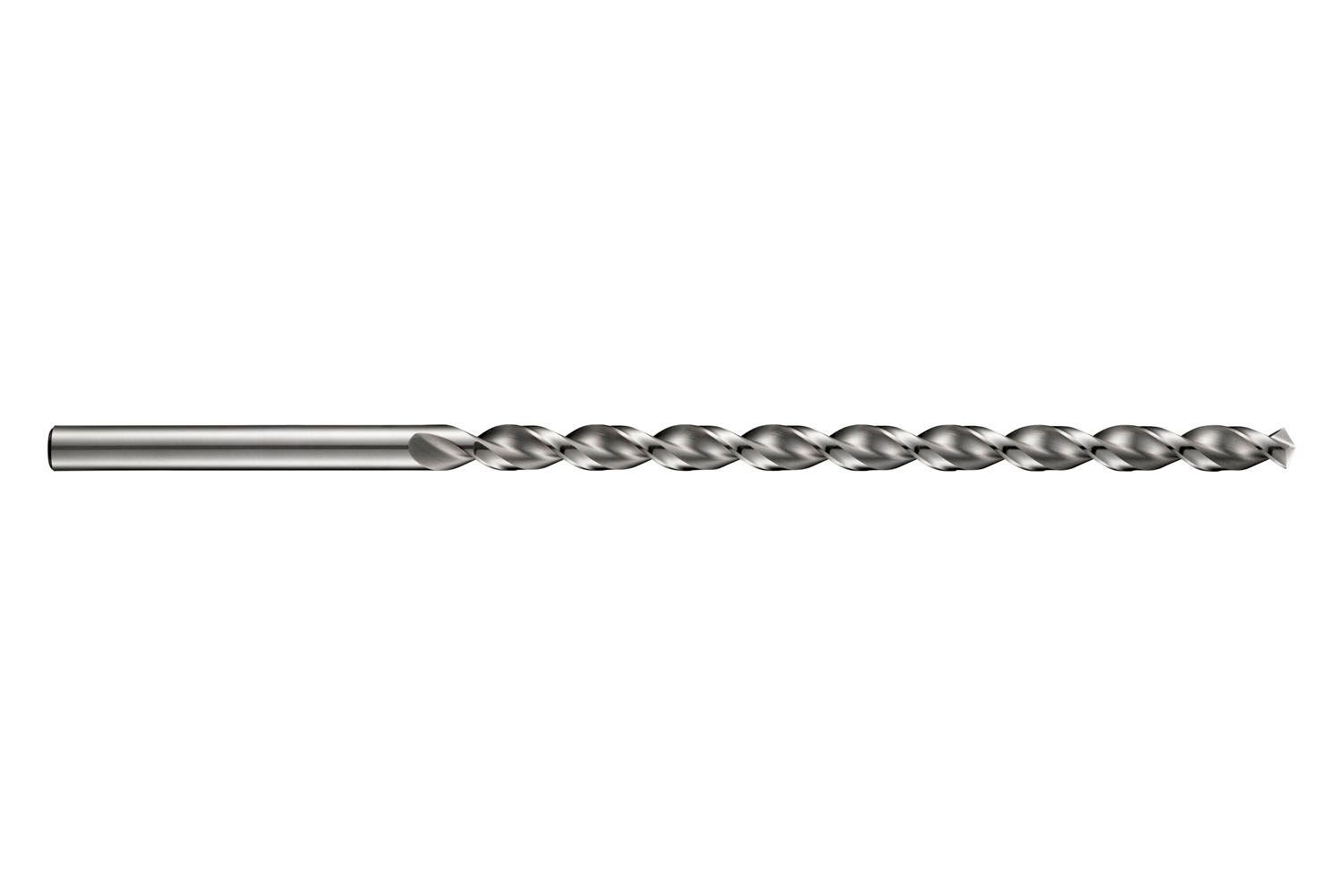

Extra long length PFX drill with straight shank, diameter 4.2mm with an overall length of 175mm and flute length of 120mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

Additional information

Weight 0.0666 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760279854
Product number (SAP): 86012348
Ordering code ANSI: A9764.2X175
Product Line: PFX
Gross weight – grams: 17.4
Cutting diameter – millimeter (DC): 4.2 mm
Cutting diameter – inch (DC): 0.1654 inch
Length chip flute – millimeter (LCF): 120 mm
Overall length – millimeter (OAL): 175 mm
Connection diameter – millimeter (DCON MS): 4.2 mm
Length chip flute – inch (LCF): 4.7244 inch
ISO: A9764.2X175

Brand

DORMER
