DORMER A9765.9X205 ADX / PFX Drills

Product Code: A9765.9X205

$108.21$98.37 Ex. GST

Product Code: A9765.9X205 SKU A9765.9X205 Categories , ,
DORMER A9765.9X205 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

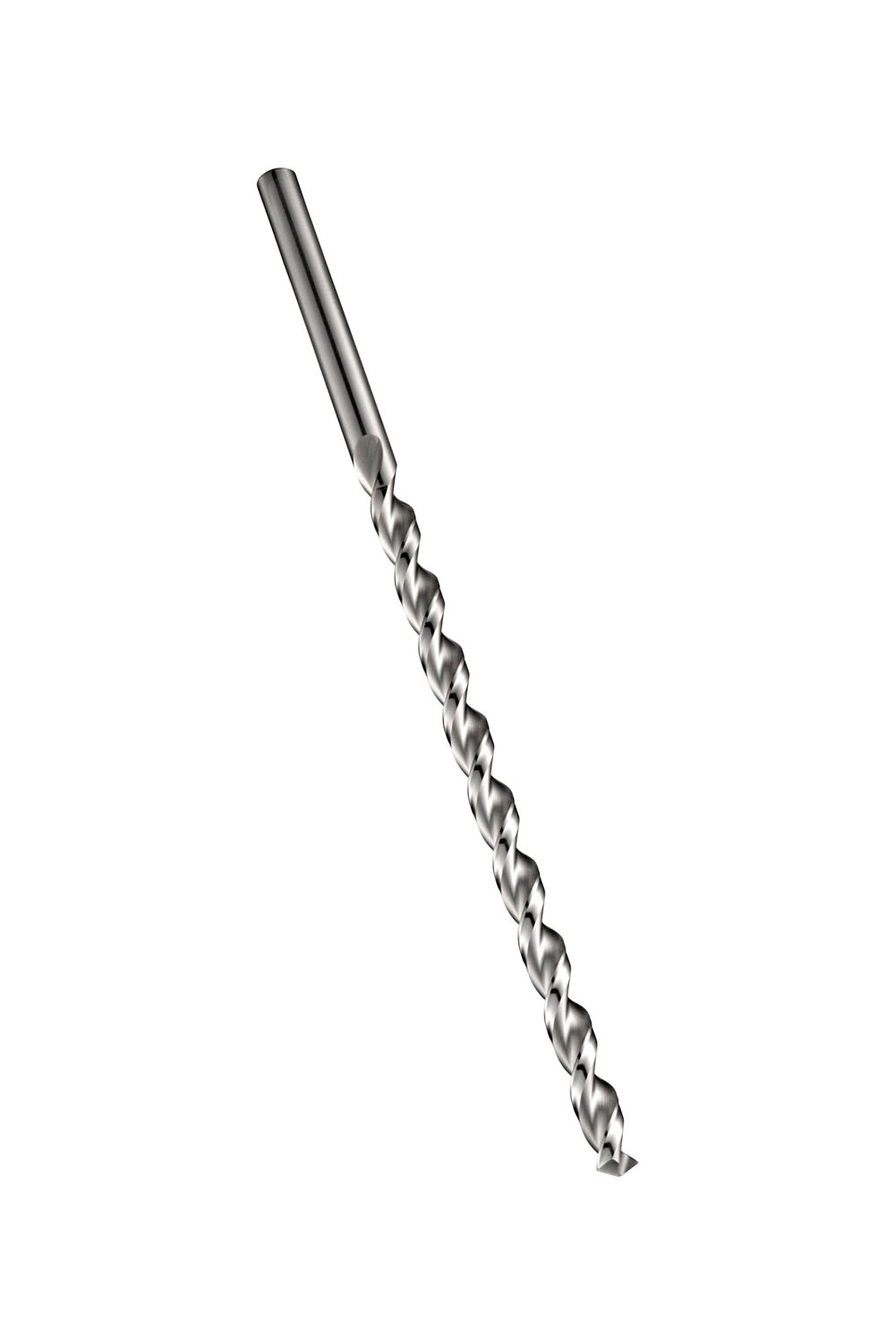

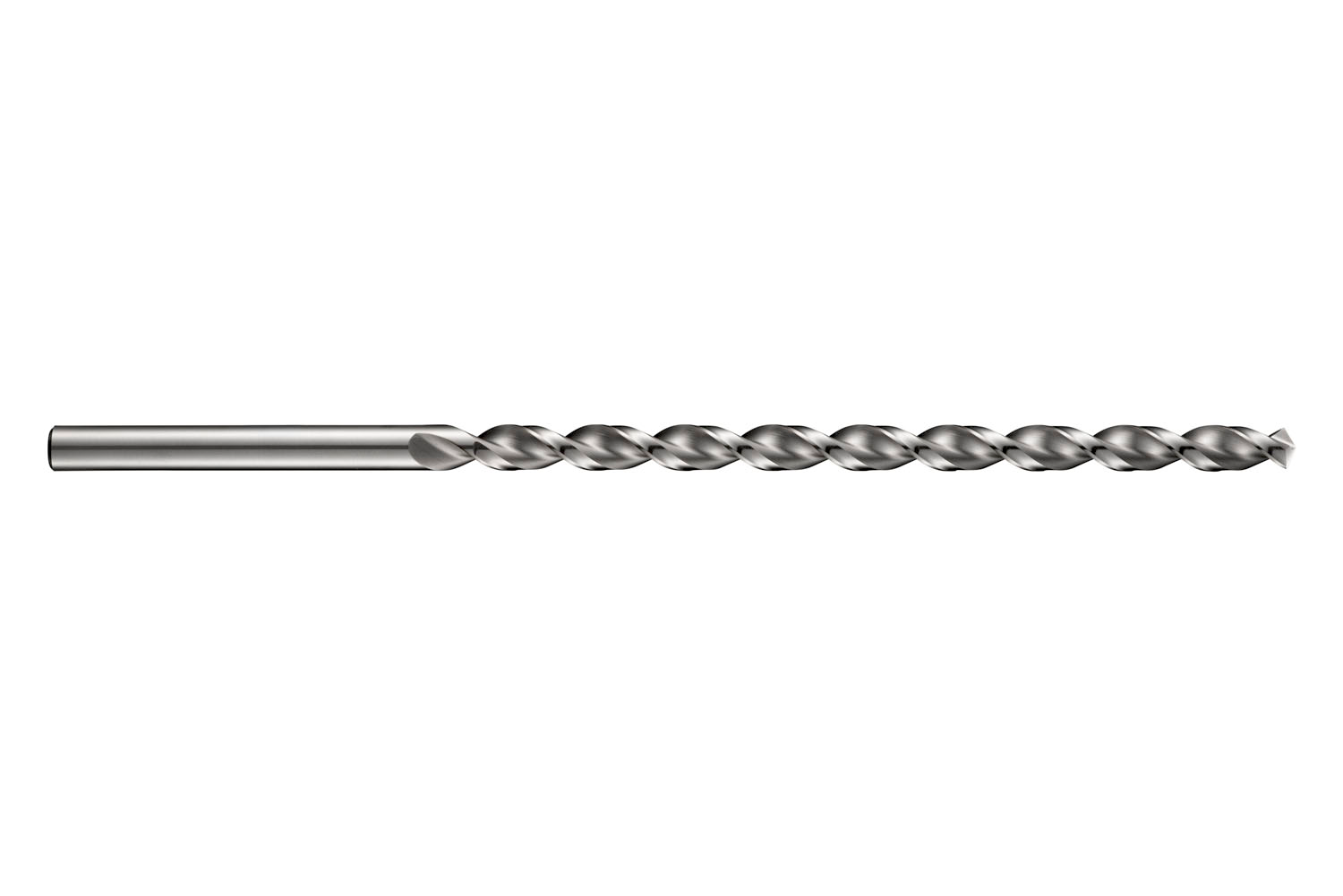

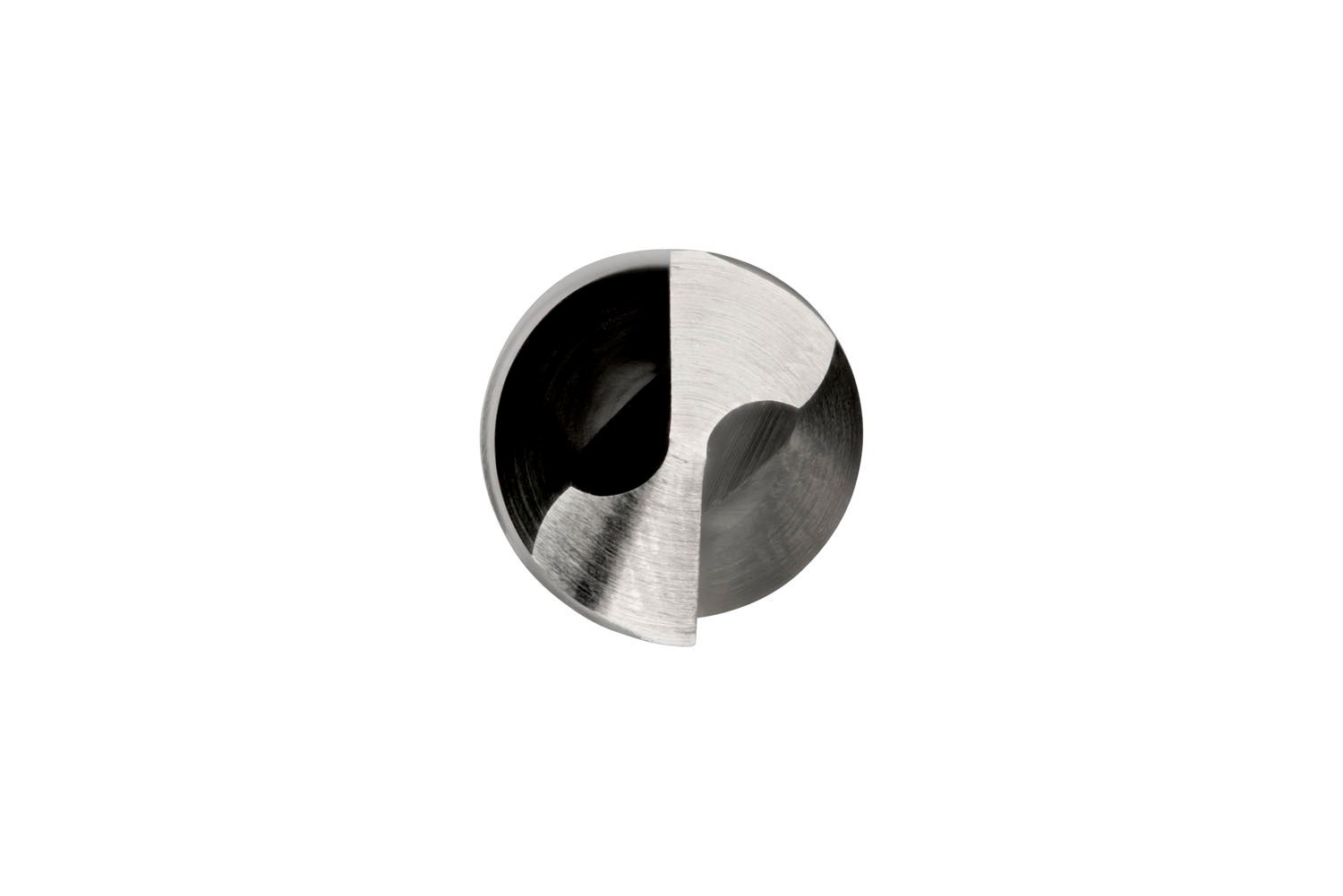

Extra long length PFX drill with straight shank, diameter 5.9mm with an overall length of 205mm and flute length of 140mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

Additional information

Weight 0.1051 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760279991
Product number (SAP): 86012365
Ordering code ANSI: A9765.9X205
Product Line: PFX
Gross weight – grams: 36.9
Cutting diameter – millimeter (DC): 5.9 mm
Cutting diameter – inch (DC): 0.2323 inch
Length chip flute – millimeter (LCF): 140 mm
Overall length – millimeter (OAL): 205 mm
Connection diameter – millimeter (DCON MS): 5.9 mm
Length chip flute – inch (LCF): 5.5118 inch
ISO: A9765.9X205

Brand

DORMER
