DORMER A9767.0X225 ADX / PFX Drills

Product Code: A9767.0X225

$130.30$118.45 Ex. GST

Product Code: A9767.0X225 SKU A9767.0X225 Categories , ,

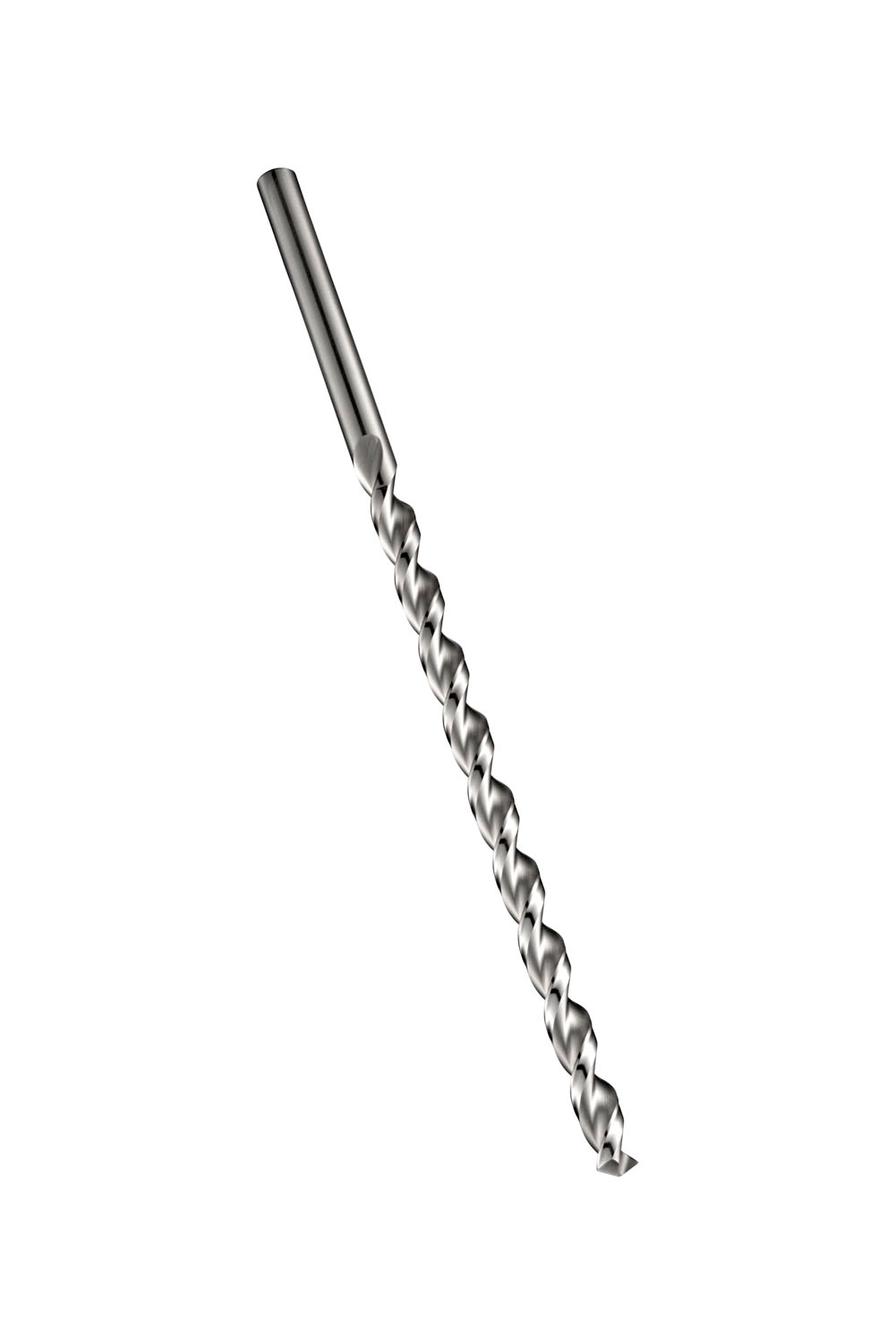

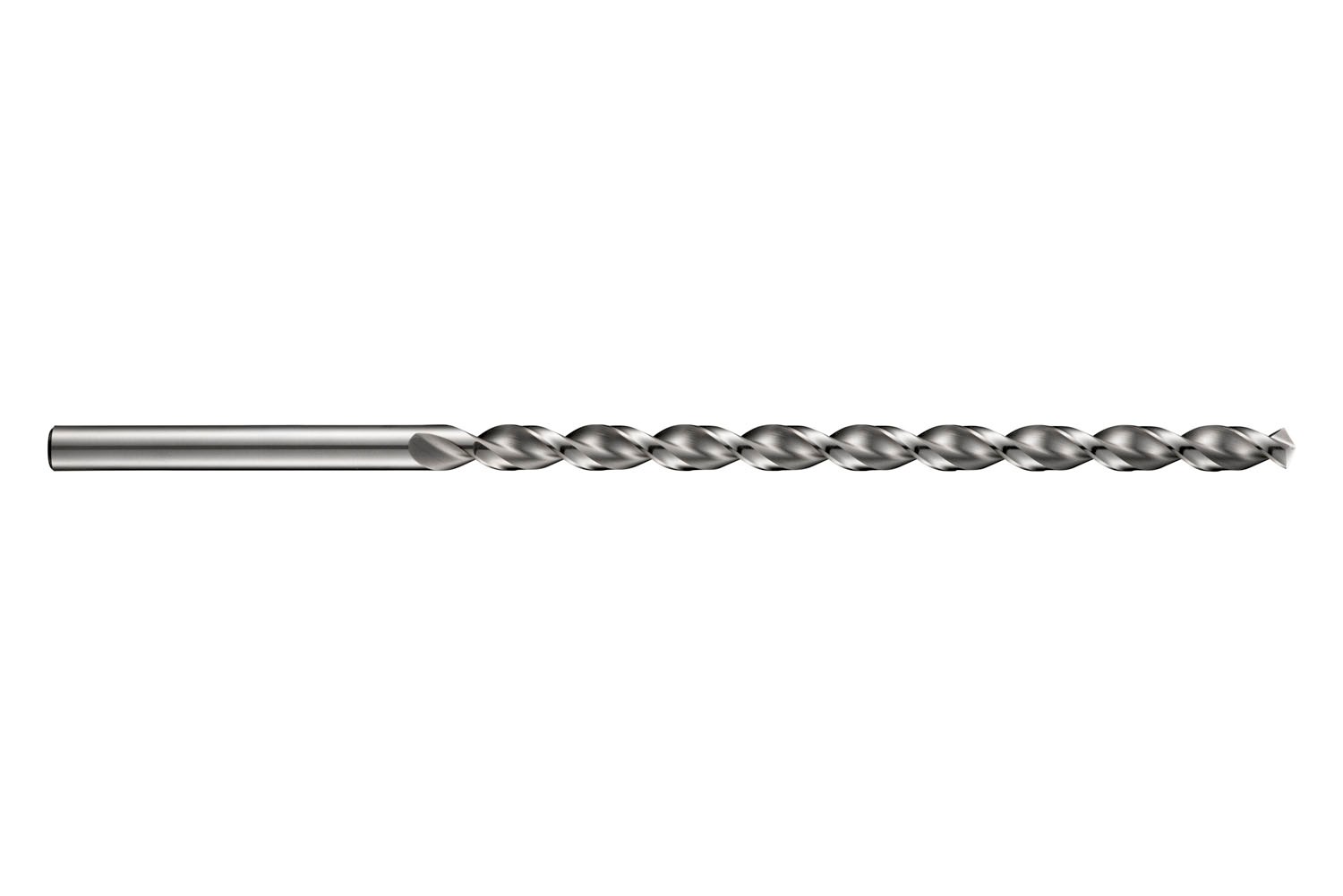

DORMER A9767.0X225 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Extra long length PFX drill with straight shank, diameter 7mm with an overall length of 225mm and flute length of 155mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

Additional information

Weight 0.1265 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760148631
Product number (SAP): 86012378
Ordering code ANSI: A9767.0X225
Product Line: PFX
Gross weight – grams: 52.3
Cutting diameter – millimeter (DC): 7 mm
Cutting diameter – inch (DC): 0.2756 inch
Length chip flute – millimeter (LCF): 155 mm
Overall length – millimeter (OAL): 225 mm
Connection diameter – millimeter (DCON MS): 7 mm
Length chip flute – inch (LCF): 6.1024 inch
ISO: A9767.0X225

Brand

DORMER
