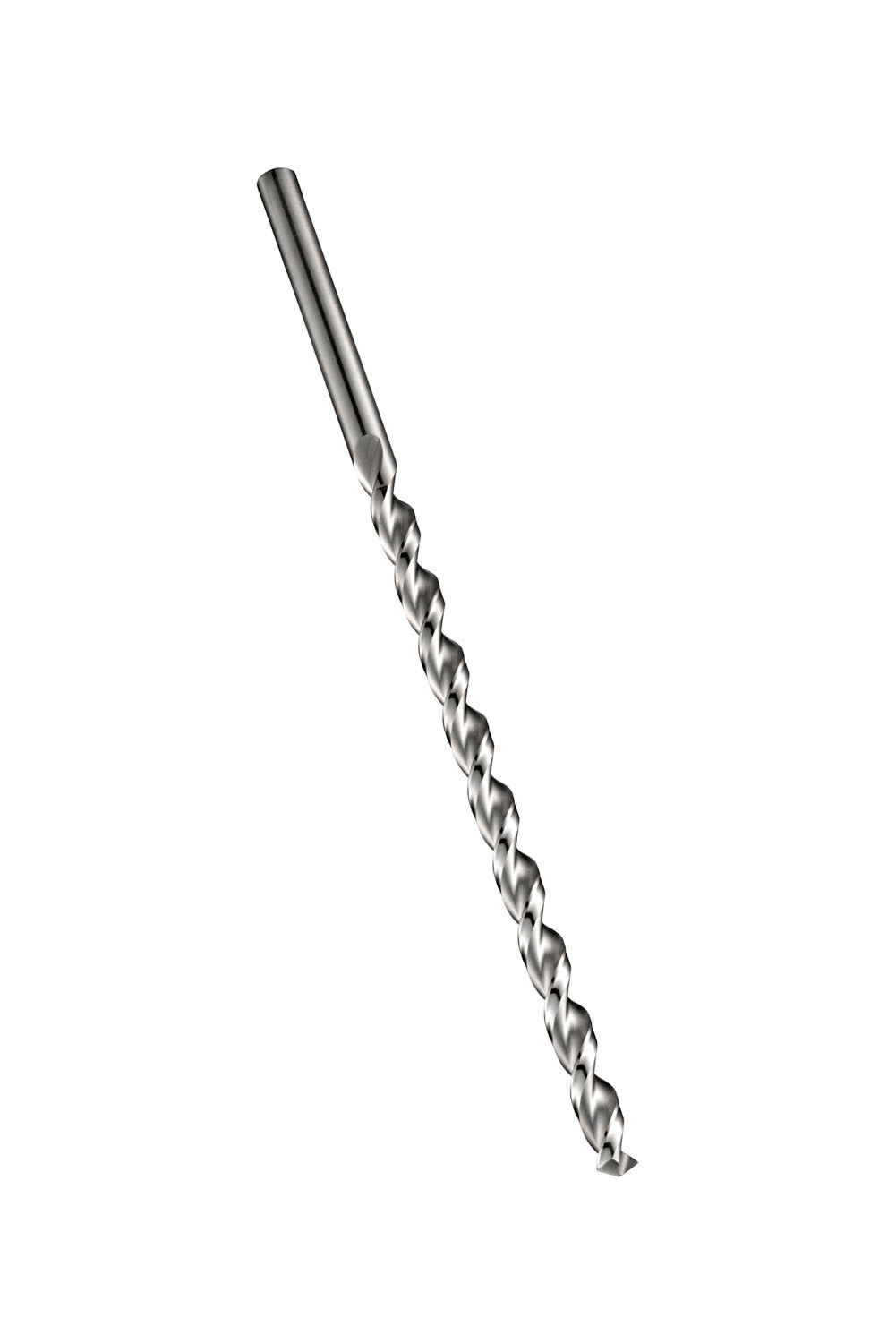

DORMER A9767/16 ADX / PFX Drills

Product Code: A9767/16

$321.77$292.52 Ex. GST

Product Code: A9767/16 SKU A9767/16 Categories , ,
DORMER A9767/16 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

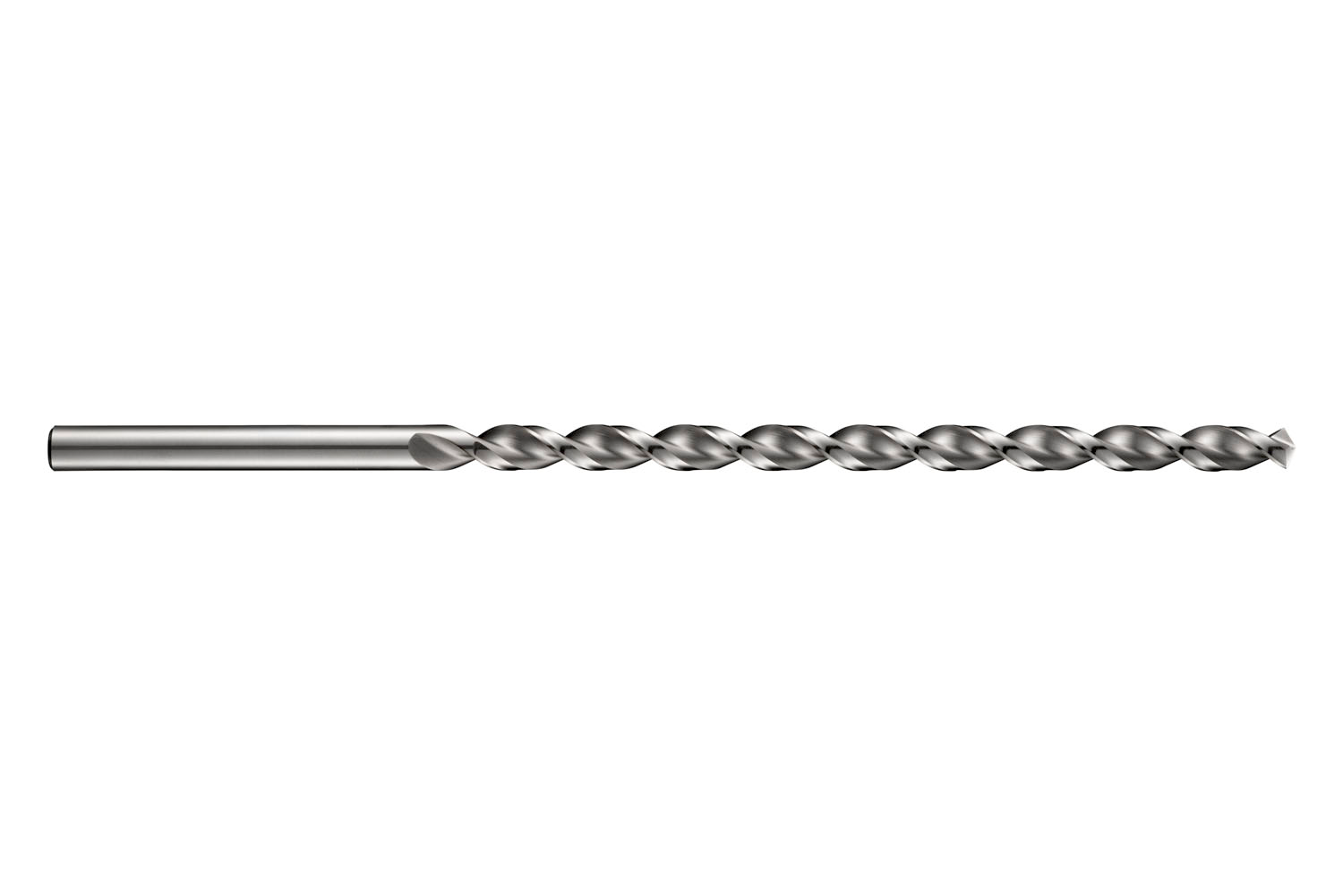

Extra long length PFX drill with straight shank, diameter 0.4375″ (7/16) with an overall length of 280mm and flute length of 195mm according to DIN 1869 / 1 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 15xD drilling without pecking in steel

Additional information

Weight 0.3124 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760347379
Product number (SAP): 86012380
Ordering code ANSI: A9767/16
Product Line: PFX
Gross weight – grams: 160.4
Cutting diameter – fractional inch (DC): 7/16
Cutting diameter – millimeter (DC): 11.11 mm
Cutting diameter – inch (DC): 0.4375 inch
Length chip flute – millimeter (LCF): 195 mm
Overall length – millimeter (OAL): 280 mm
Connection diameter – millimeter (DCON MS): 11.11 mm
Length chip flute – inch (LCF): 7.6772 inch
ISO: A9767/16
