DORMER A9771/4 ADX / PFX Drills

Product Code: A9771/4

$126.90$115.36 Ex. GST

Product Code: A9771/4 SKU A9771/4 Categories , ,

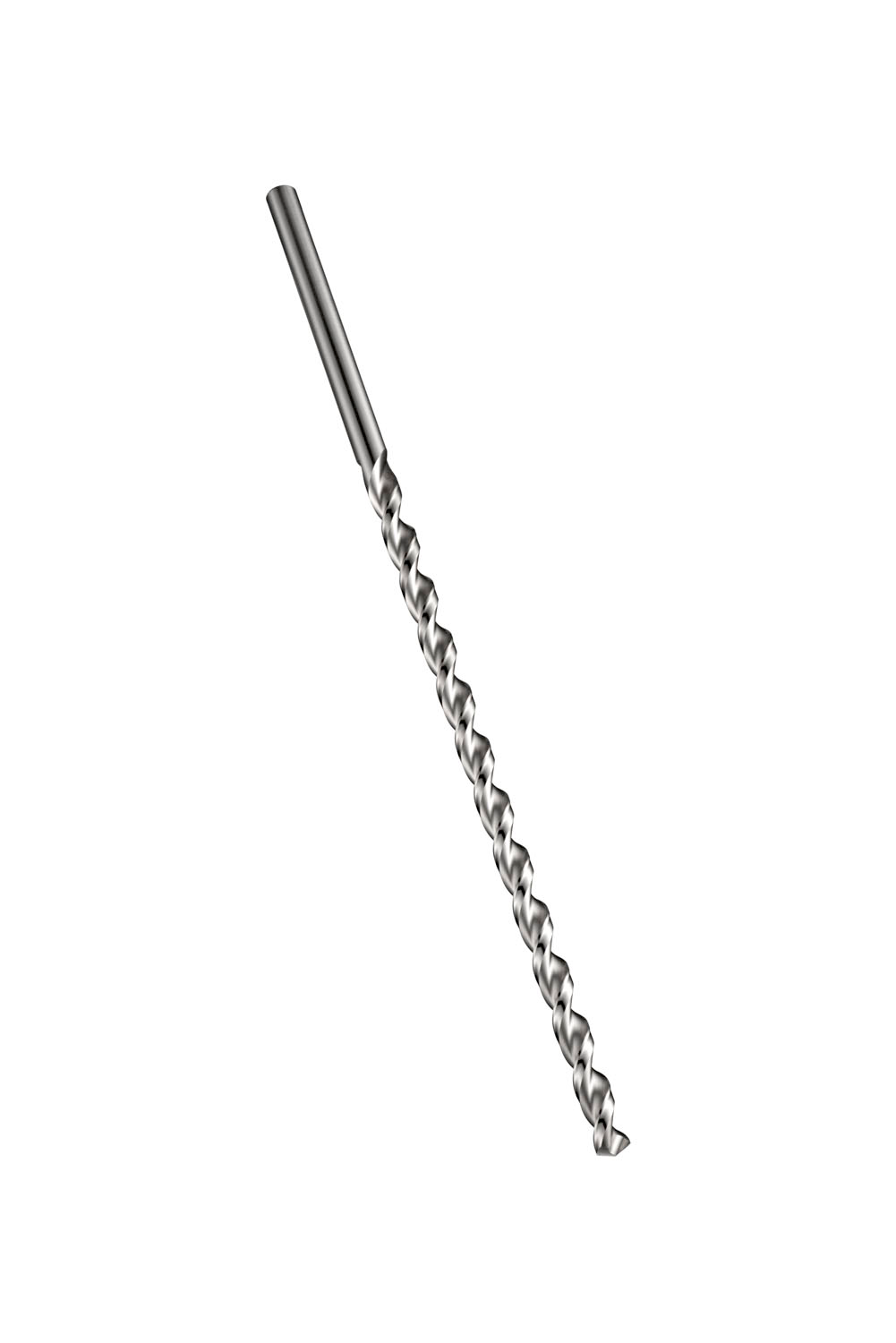

DORMER A9771/4 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

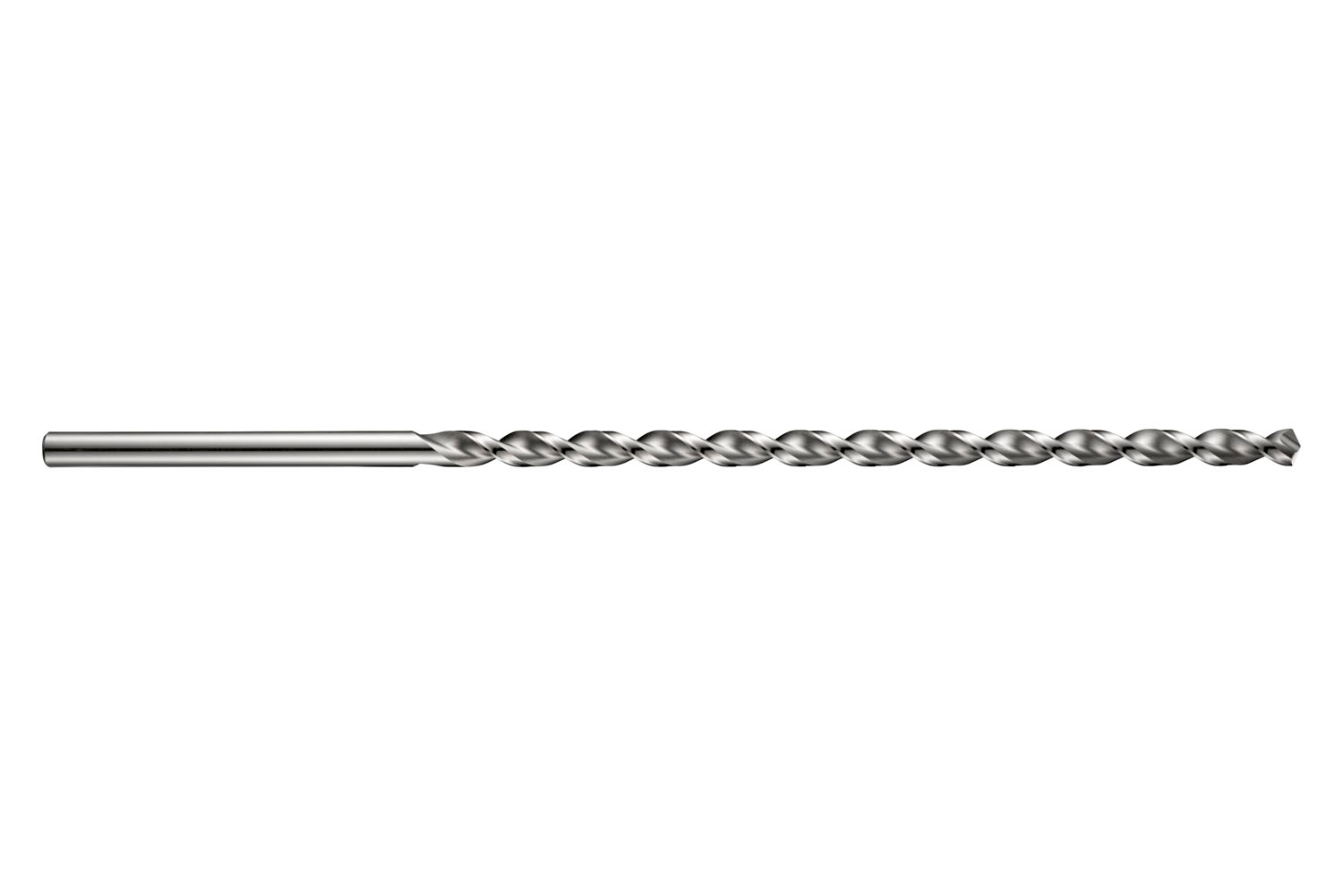

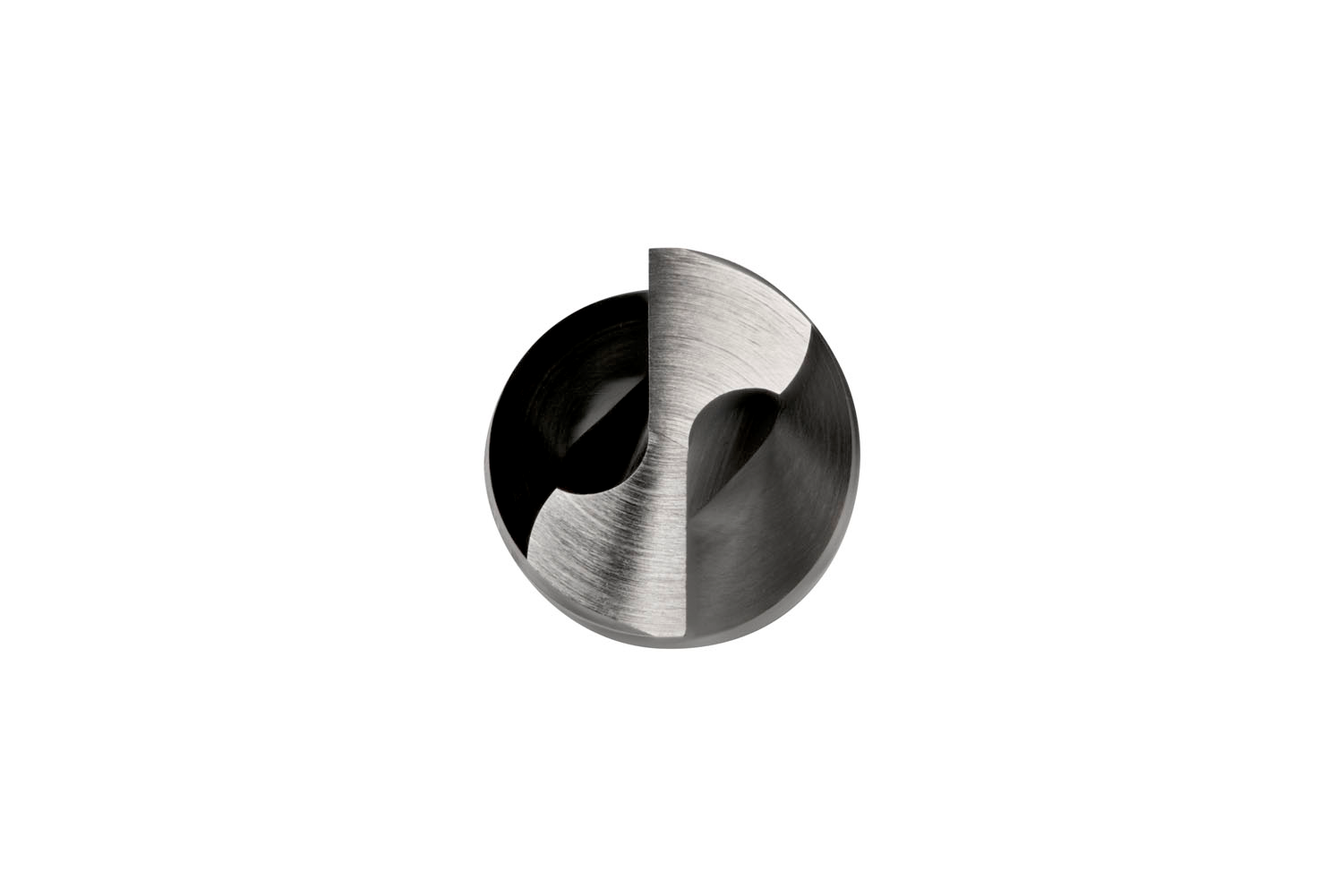

Extra long length PFX drill with straight shank, diameter 0.2500″ (1/4) with an overall length of 275mm and flute length of 190mm according to DIN 1869 / 2 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

Additional information

Weight 0.1232 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760347232
Product number (SAP): 86012387
Ordering code ANSI: A9771/4
Product Line: PFX
Gross weight – grams: 49.5
Cutting diameter – fractional inch (DC): 1/4
Cutting diameter – millimeter (DC): 6.35 mm
Cutting diameter – inch (DC): 0.25 inch
Length chip flute – millimeter (LCF): 190 mm
Overall length – millimeter (OAL): 275 mm
Connection diameter – millimeter (DCON MS): 6.35 mm
Length chip flute – inch (LCF): 7.4803 inch
ISO: A9771/4

Brand

DORMER
