DORMER A9771.5 ADX / PFX Drills

Product Code: A9771.5

$70.82$64.38 Ex. GST

Product Code: A9771.5 SKU A9771.5 Categories , ,

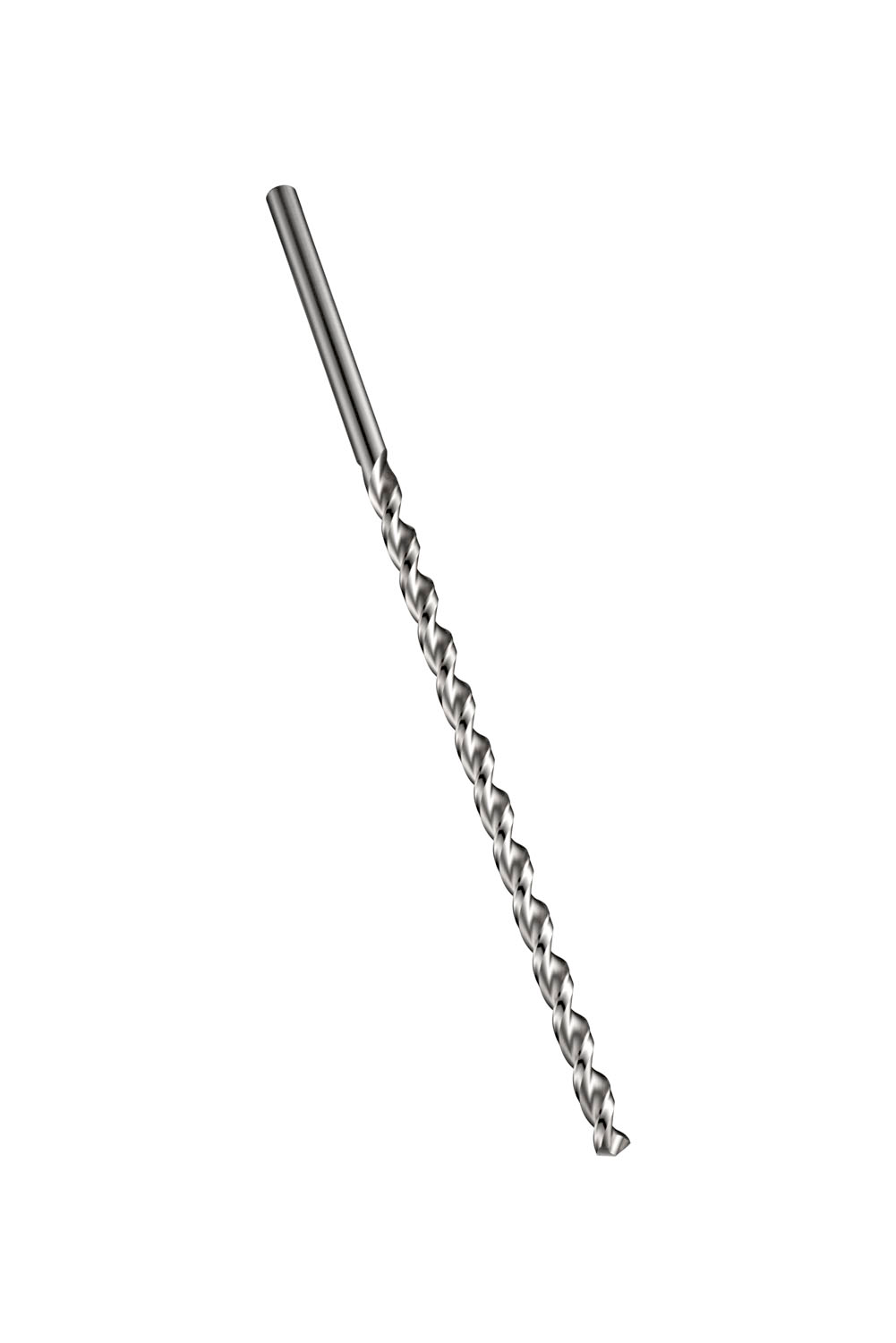

DORMER A9771.5 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

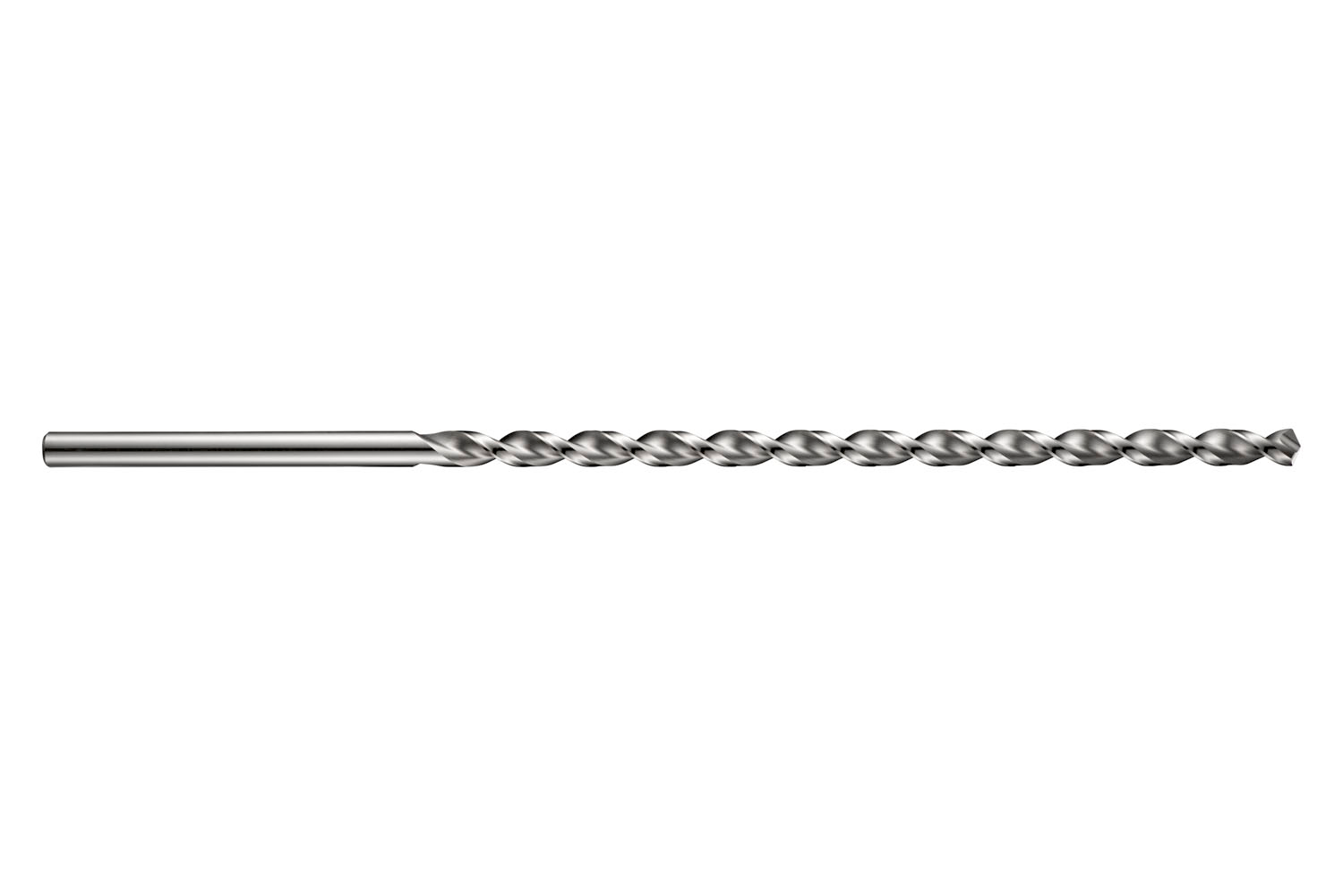

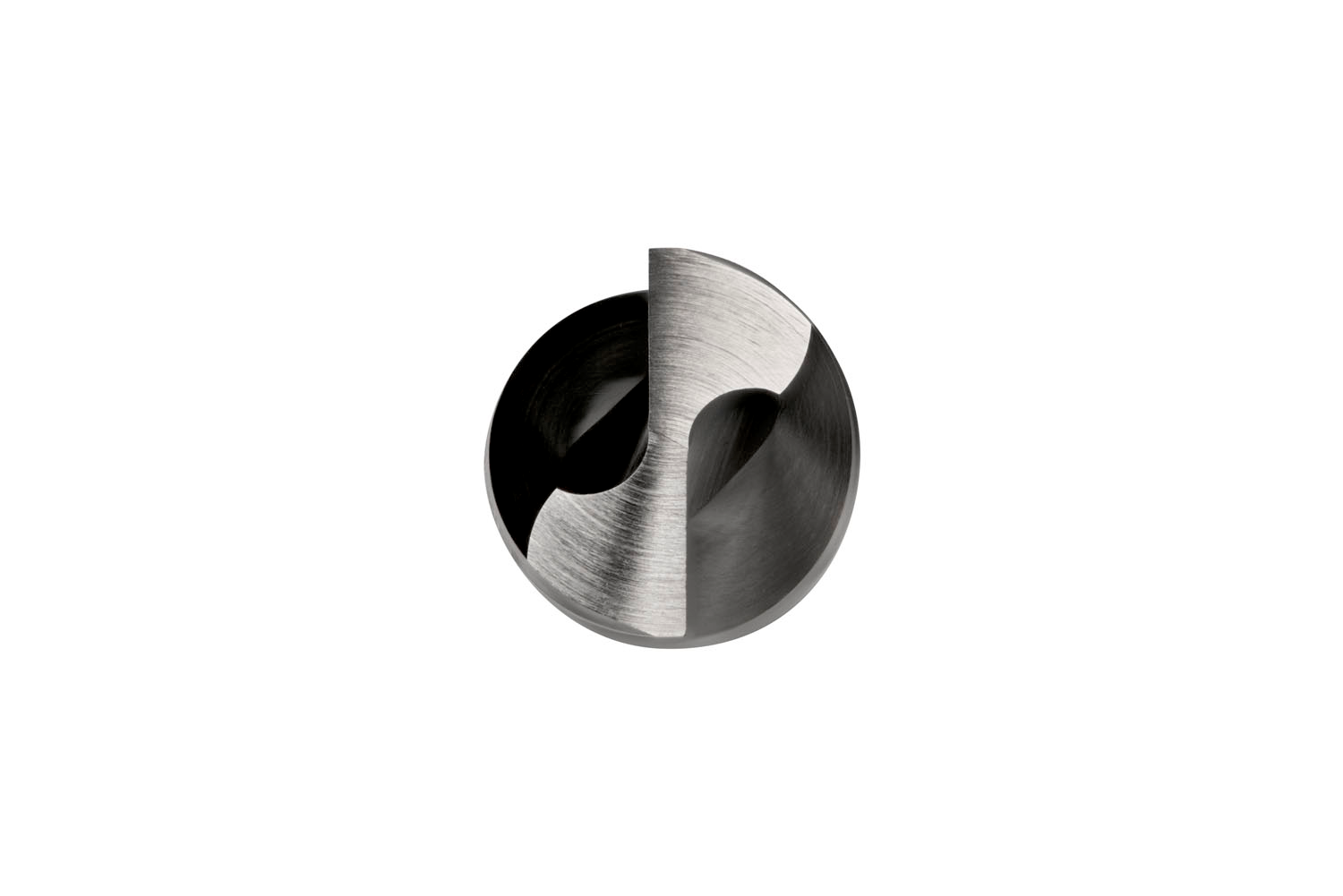

Extra long length PFX drill with straight shank, diameter 1.5mm with an overall length of 150mm and flute length of 100mm according to DIN 1869 / 2 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

Additional information

Weight 0.0688 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760347386
Product number (SAP): 86012385
Ordering code ANSI: A9771.5
Product Line: PFX
Gross weight – grams: 9.2
Cutting diameter – millimeter (DC): 1.5 mm
Cutting diameter – inch (DC): 0.0591 inch
Length chip flute – millimeter (LCF): 100 mm
Overall length – millimeter (OAL): 150 mm
Connection diameter – millimeter (DCON MS): 1.5 mm
Length chip flute – inch (LCF): 3.937 inch
ISO: A9771.5

Brand

DORMER
