DORMER A9771/8 ADX / PFX Drills

Product Code: A9771/8

$64.58$58.71 Ex. GST

Product Code: A9771/8 SKU A9771/8 Categories , ,

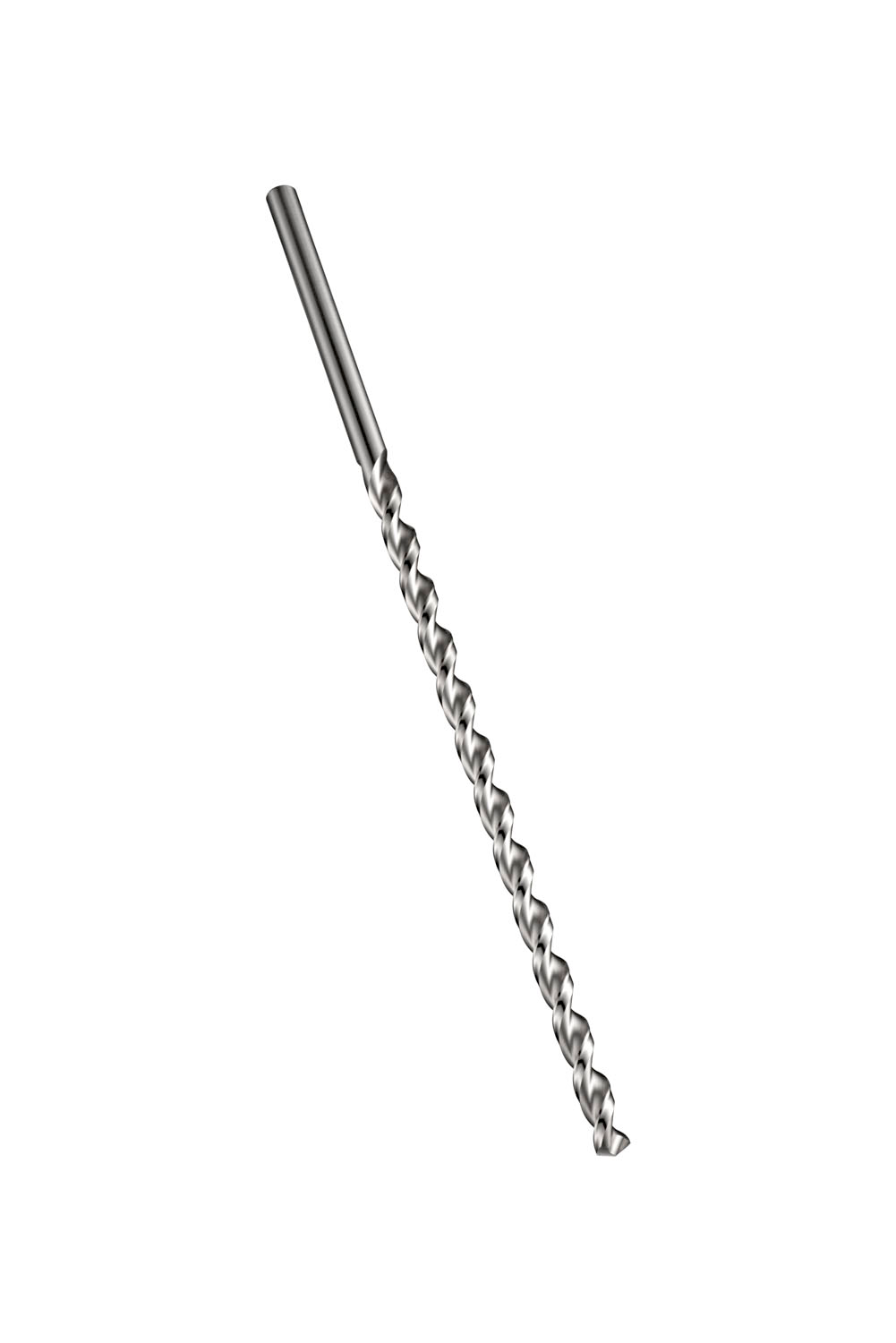

DORMER A9771/8 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

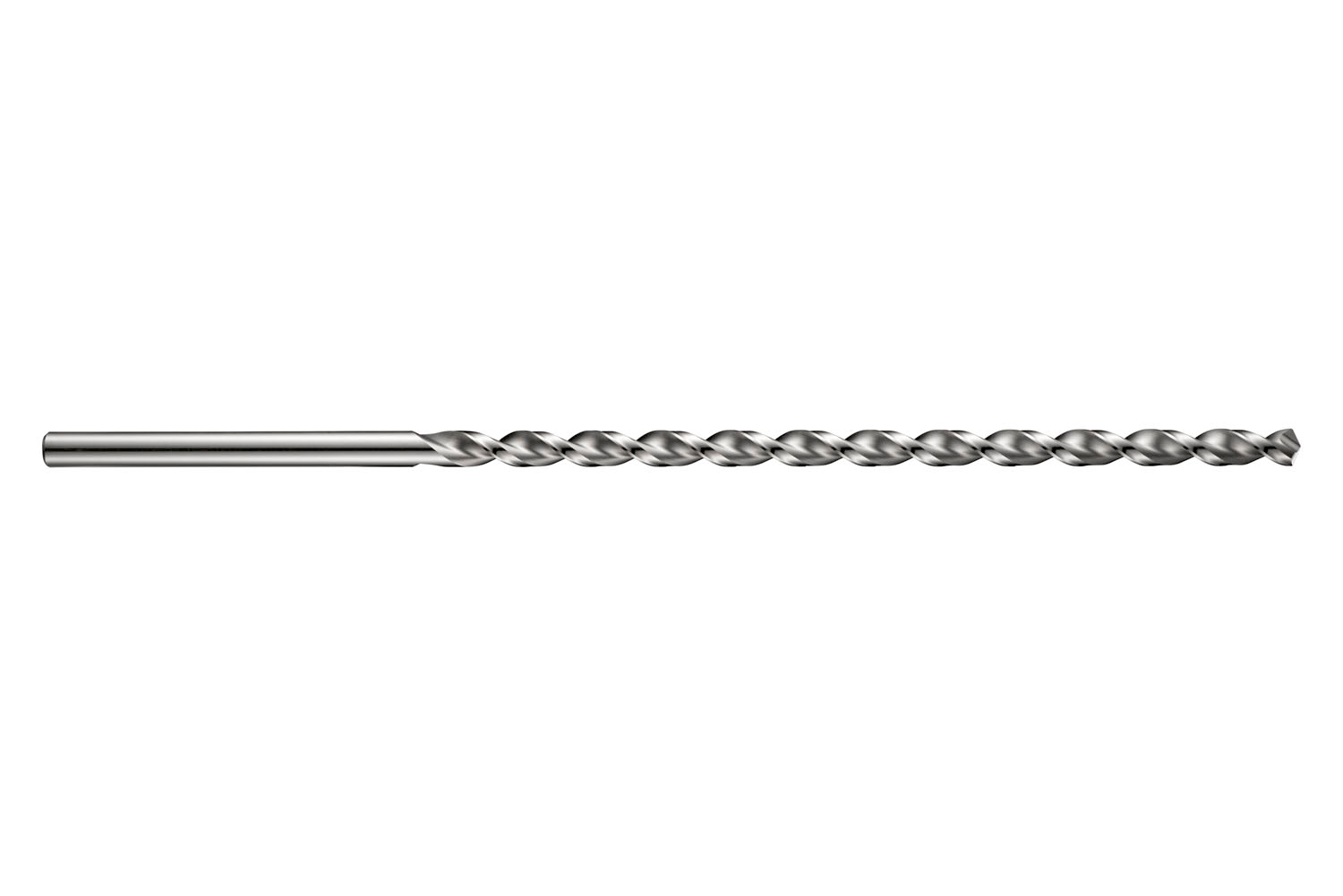

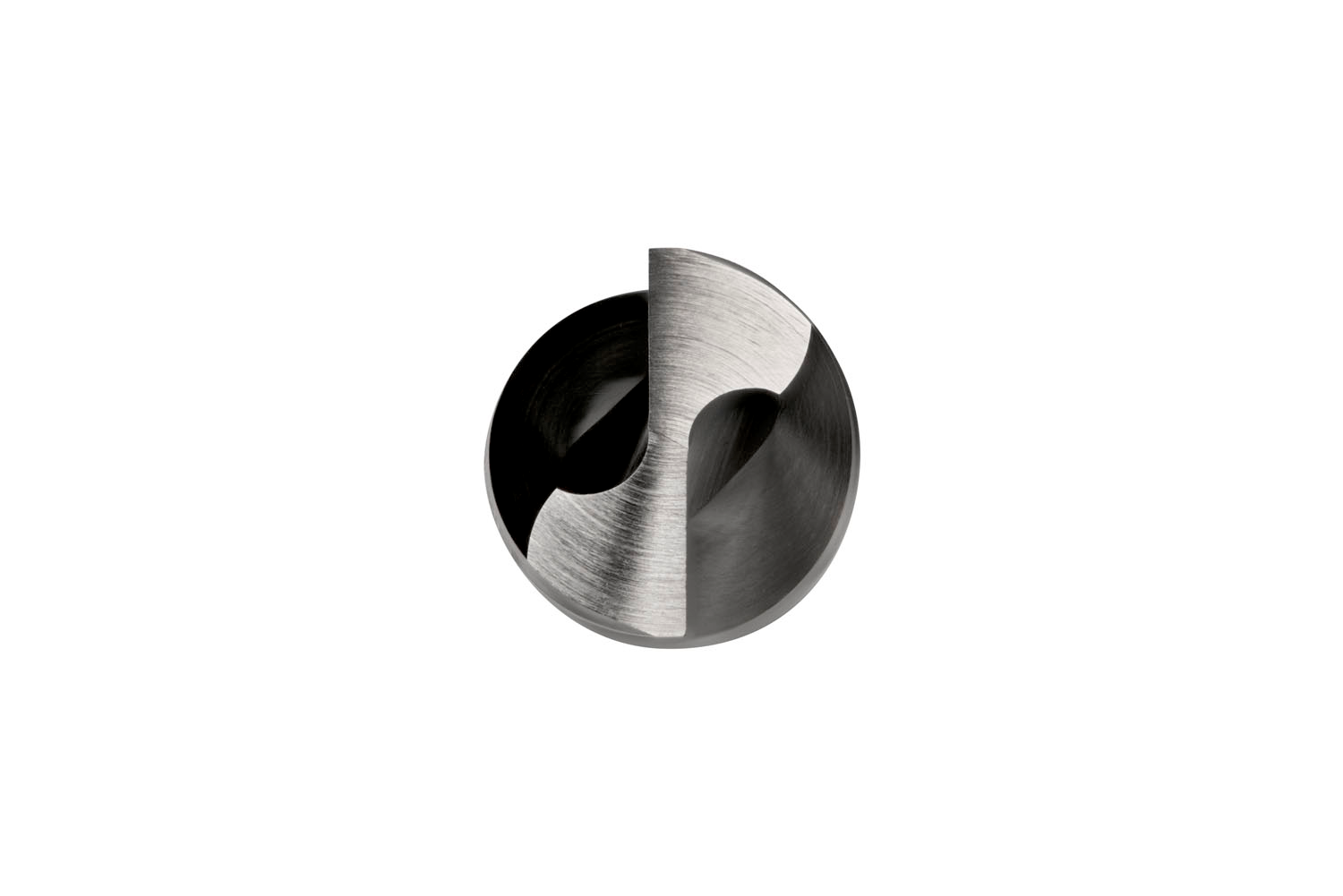

Extra long length PFX drill with straight shank, diameter 0.1250″ (1/8) with an overall length of 200mm and flute length of 135mm according to DIN 1869 / 2 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

Additional information

Weight 0.0627 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760347218
Product number (SAP): 86012388
Ordering code ANSI: A9771/8
Product Line: PFX
Gross weight – grams: 16.5
Cutting diameter – fractional inch (DC): 1/8
Cutting diameter – millimeter (DC): 3.18 mm
Cutting diameter – inch (DC): 0.125 inch
Length chip flute – millimeter (LCF): 135 mm
Overall length – millimeter (OAL): 200 mm
Connection diameter – millimeter (DCON MS): 3.18 mm
Length chip flute – inch (LCF): 5.315 inch
ISO: A9771/8

Brand

DORMER
