DORMER A97711.0 ADX / PFX Drills

Product Code: A97711.0

$370.49$336.81 Ex. GST

Product Code: A97711.0 SKU A97711.0 Categories , ,

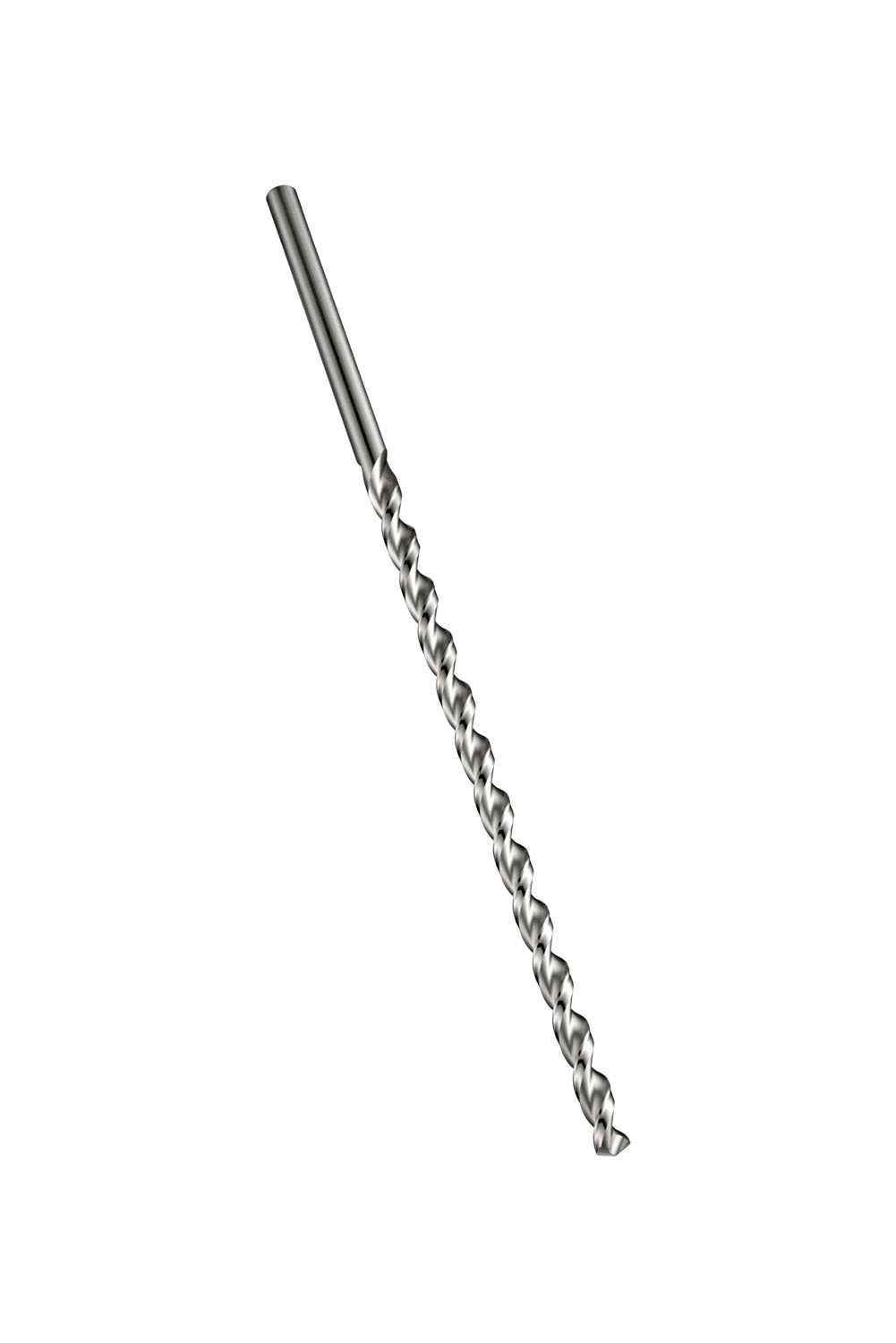

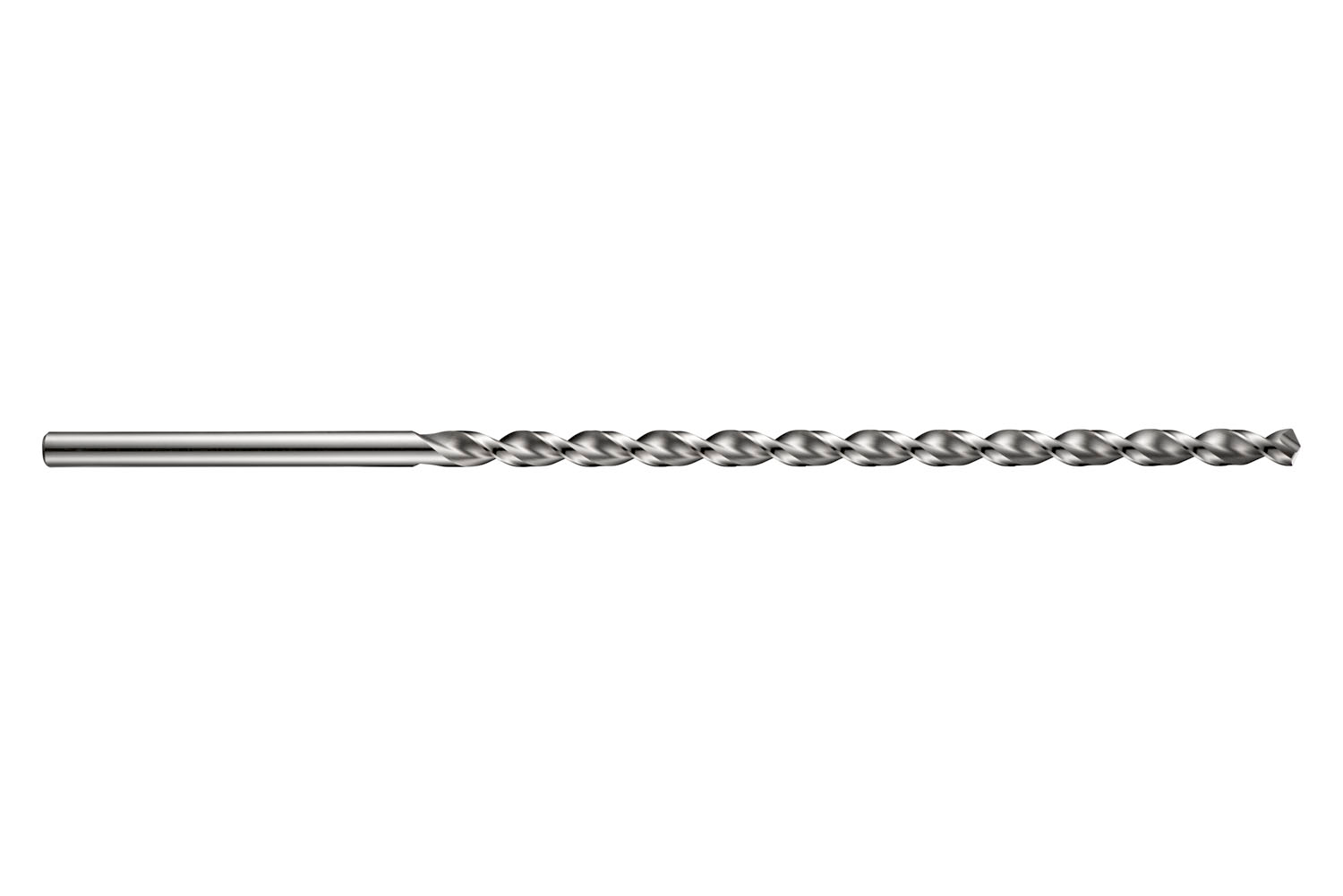

DORMER A97711.0 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

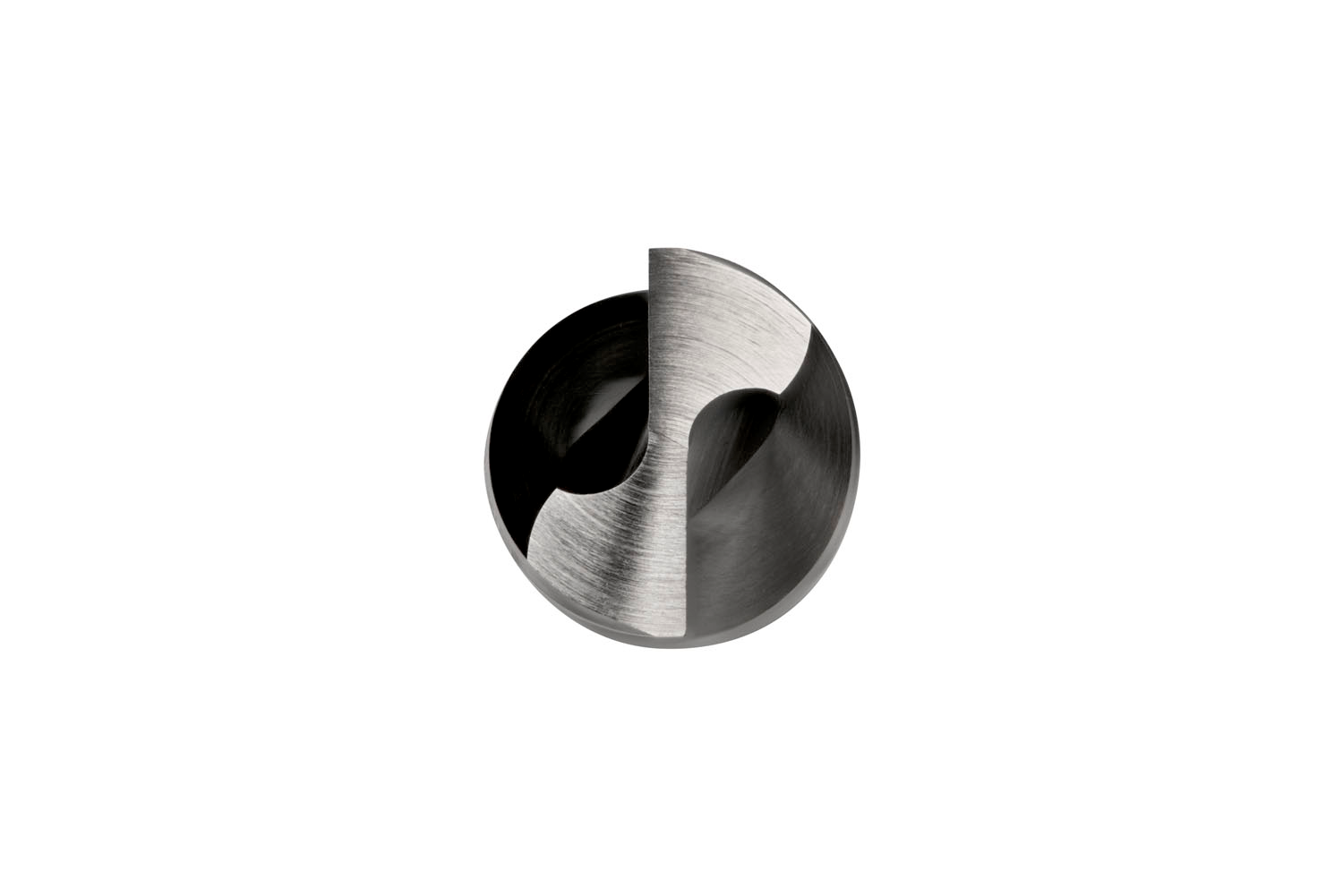

Extra long length PFX drill with straight shank, diameter 11mm with an overall length of 365mm and flute length of 250mm according to DIN 1869 / 2 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

Additional information

Weight 0.3597 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760347263
Product number (SAP): 86012391
Ordering code ANSI: A97711.0
Product Line: PFX
Gross weight – grams: 200.7

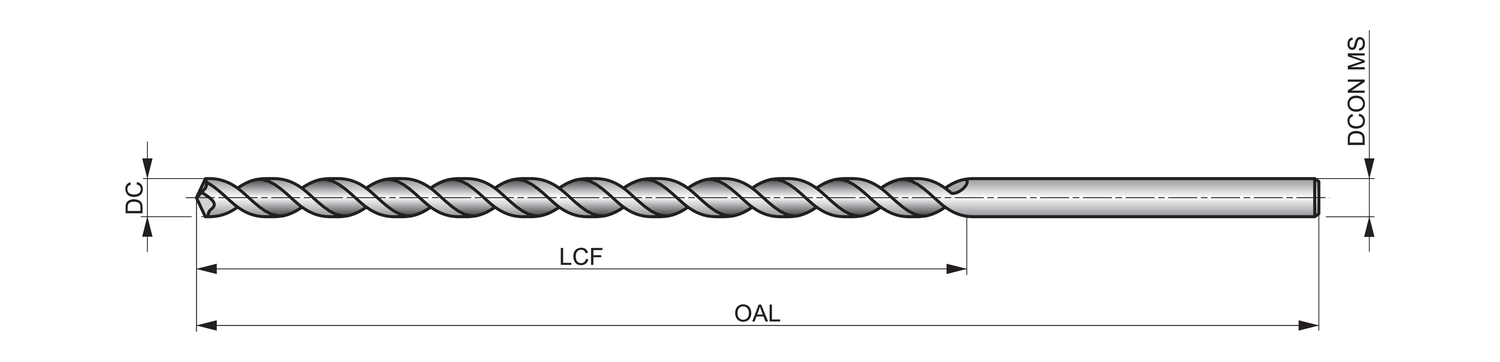

Cutting diameter – millimeter (DC): 11 mm
Cutting diameter – inch (DC): 0.4331 inch
Length chip flute – millimeter (LCF): 250 mm
Overall length – millimeter (OAL): 365 mm
Connection diameter – millimeter (DCON MS): 11 mm
Length chip flute – inch (LCF): 9.8425 inch
ISO: A97711.0

Brand

DORMER
