DORMER A9775.0X245 ADX / PFX Drills

Product Code: A9775.0X245

$89.51$81.37 Ex. GST

Product Code: A9775.0X245 SKU A9775.0X245 Categories , ,
DORMER A9775.0X245 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

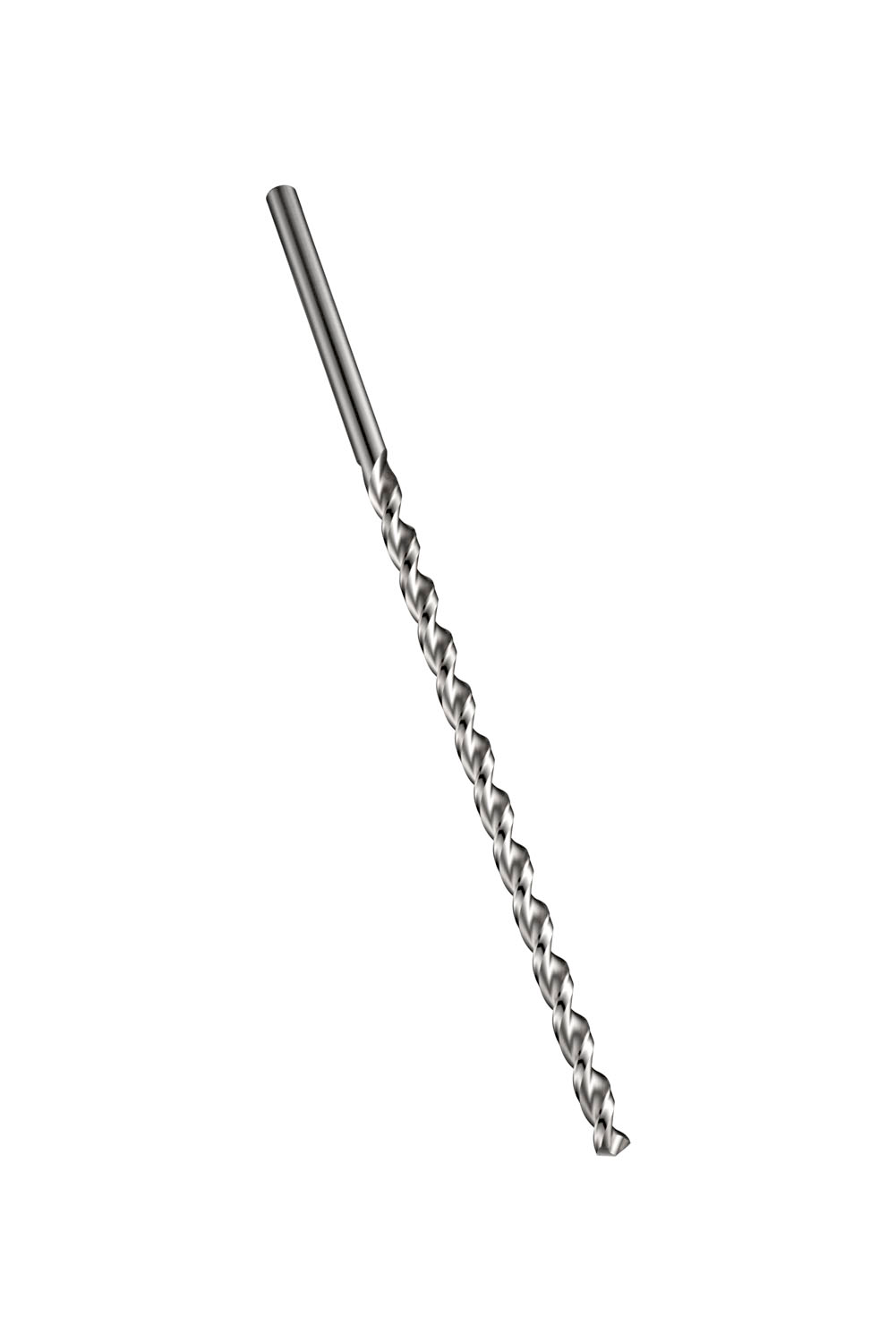

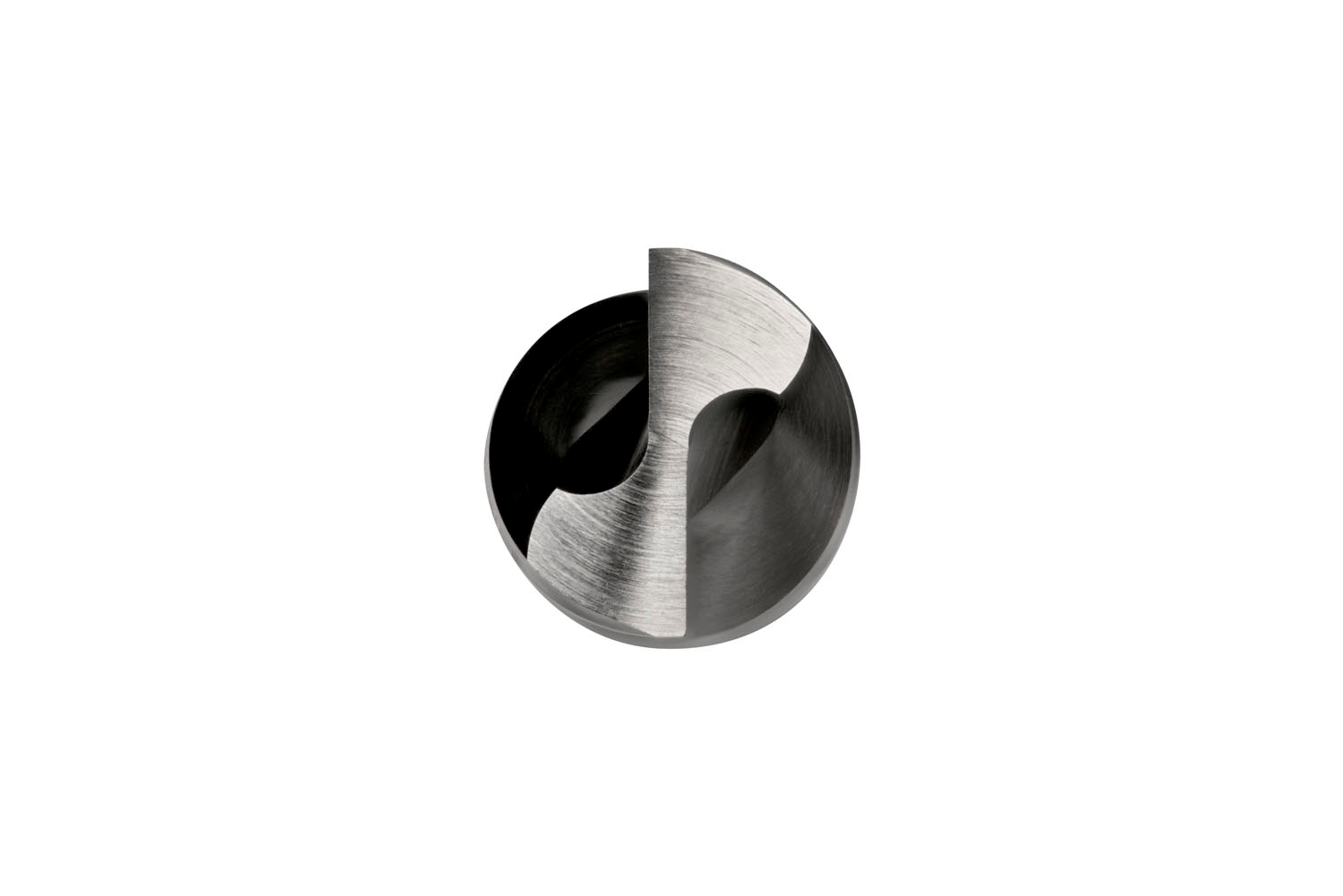

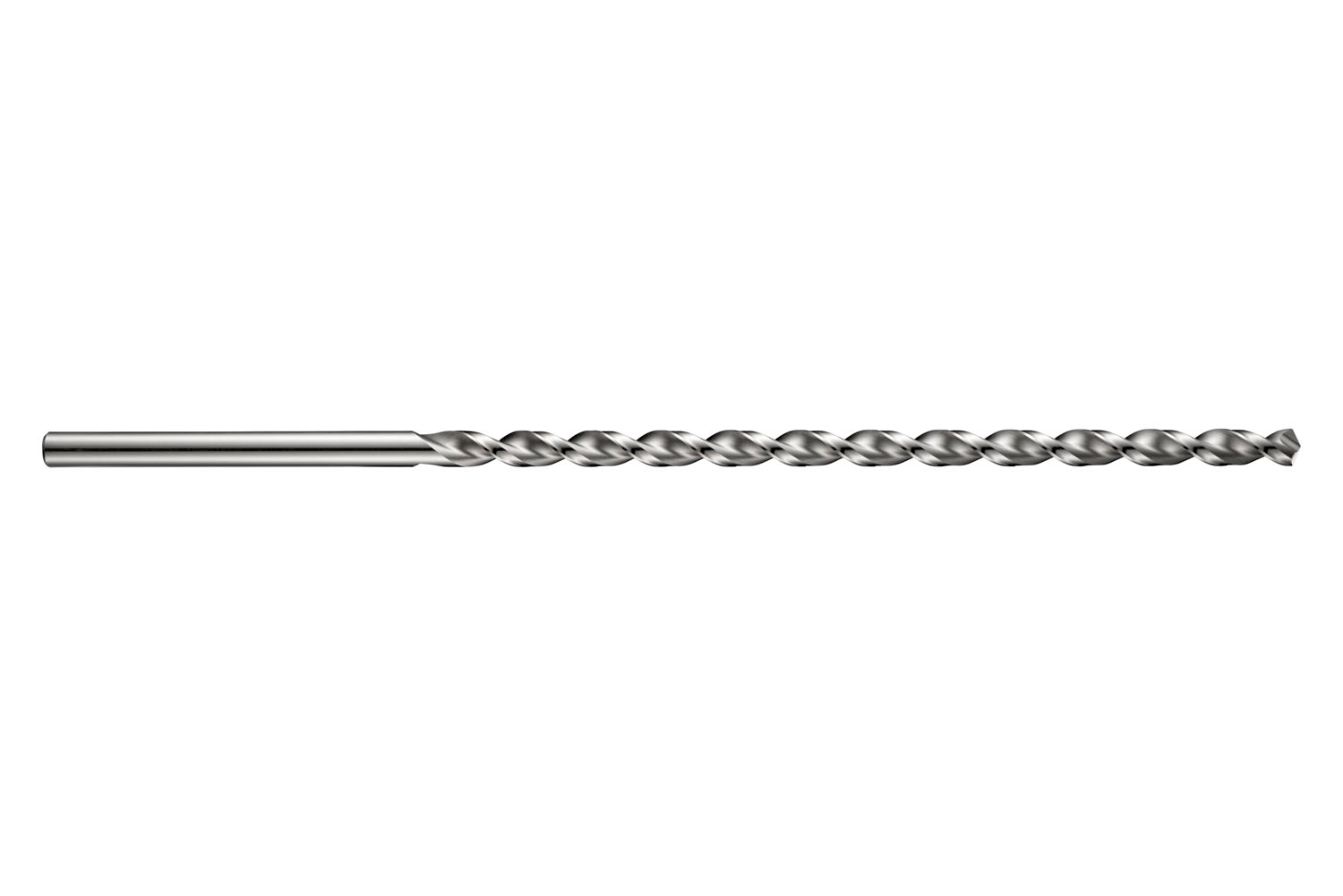

Extra long length PFX drill with straight shank, diameter 5mm with an overall length of 245mm and flute length of 170mm according to DIN 1869 / 2 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

Additional information

Weight 0.0869 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760148747
Product number (SAP): 86012405
Ordering code ANSI: A9775.0X245
Product Line: PFX
Gross weight – grams: 32.5
Cutting diameter – millimeter (DC): 5 mm
Cutting diameter – inch (DC): 0.1969 inch
Length chip flute – millimeter (LCF): 170 mm
Overall length – millimeter (OAL): 245 mm
Connection diameter – millimeter (DCON MS): 5 mm
Length chip flute – inch (LCF): 6.6929 inch
ISO: A9775.0X245

Brand

DORMER
