DORMER A9778.0X305 ADX / PFX Drills

Product Code: A9778.0X305

$188.08$170.98 Ex. GST

Product Code: A9778.0X305 SKU A9778.0X305 Categories , ,
DORMER A9778.0X305 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

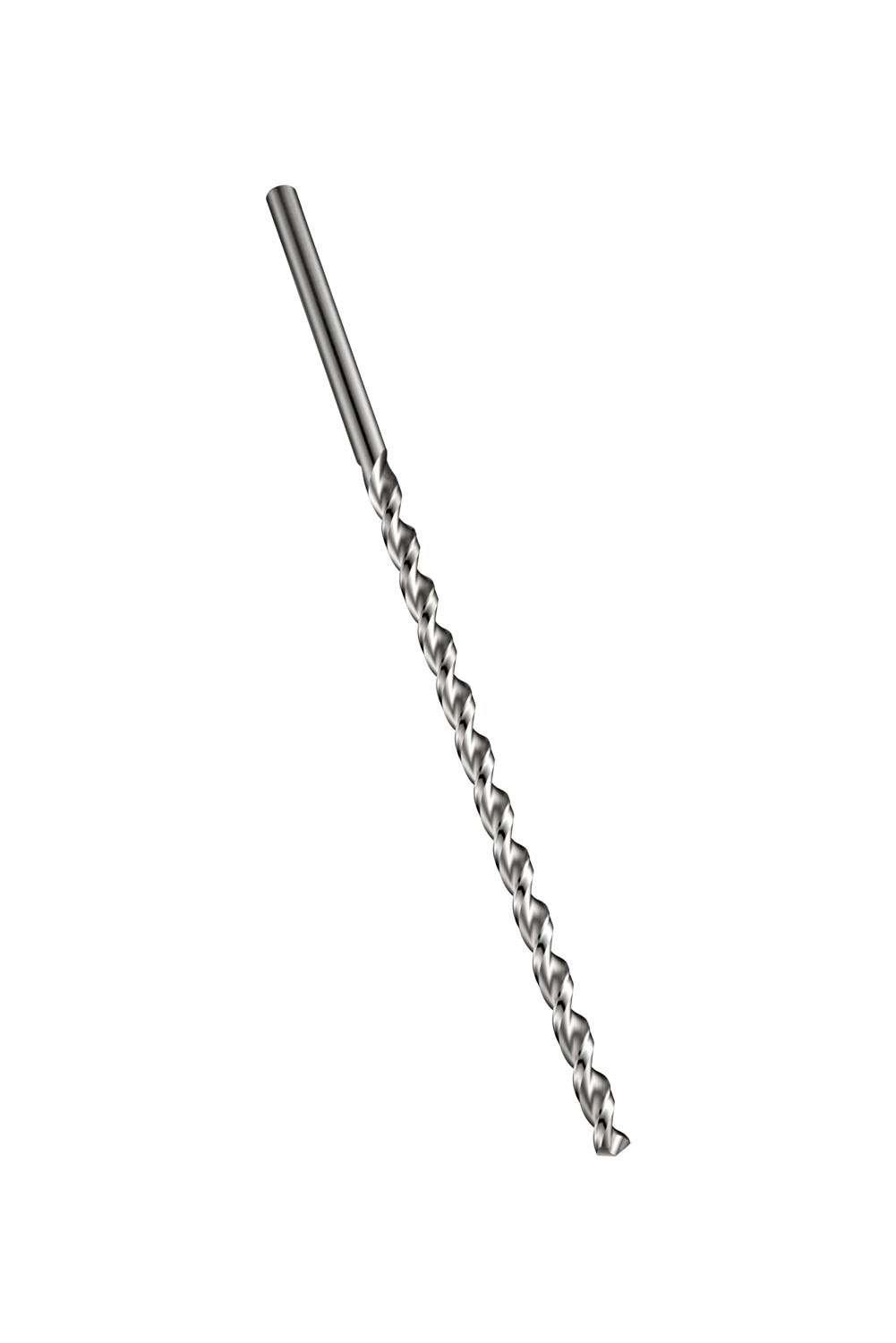

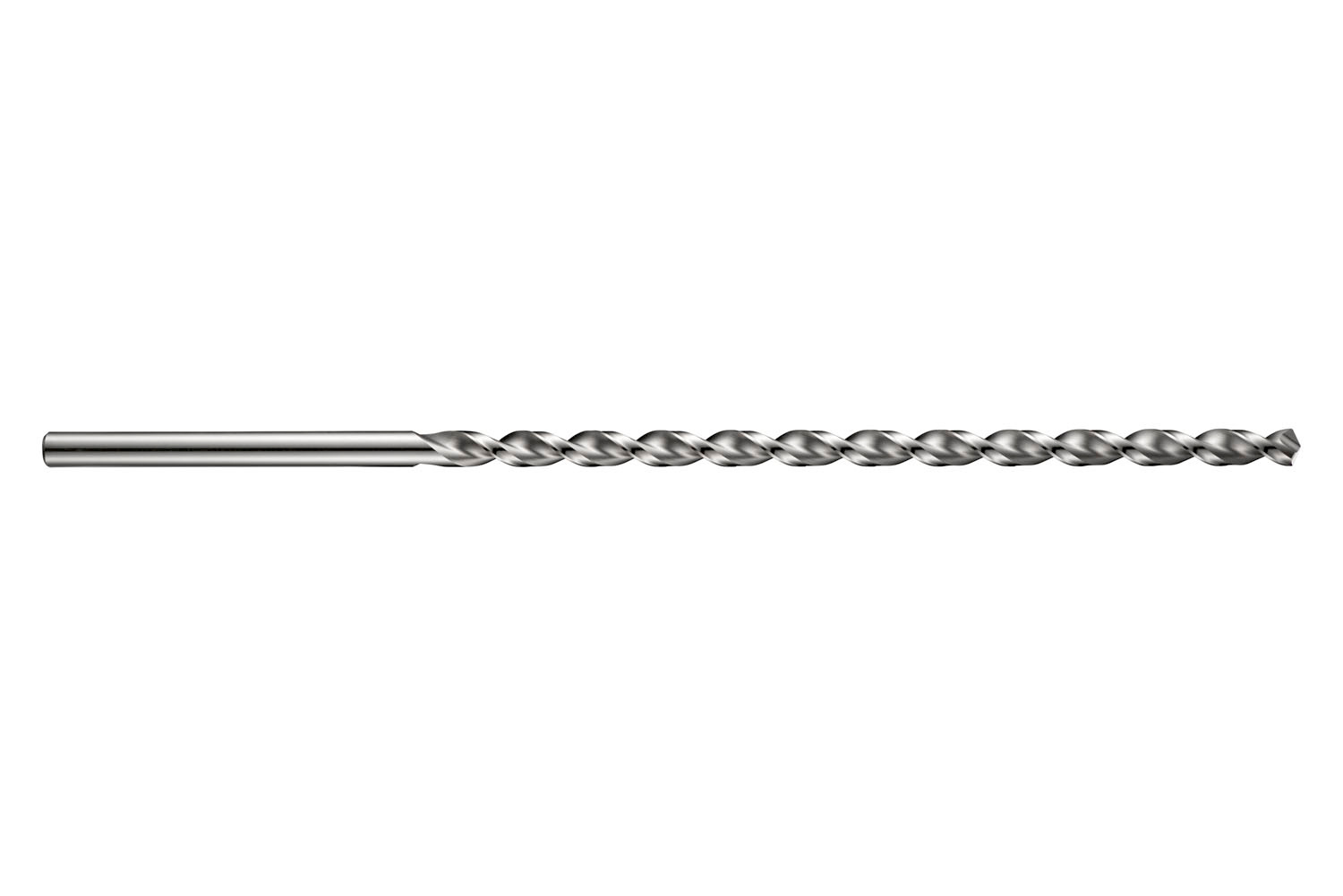

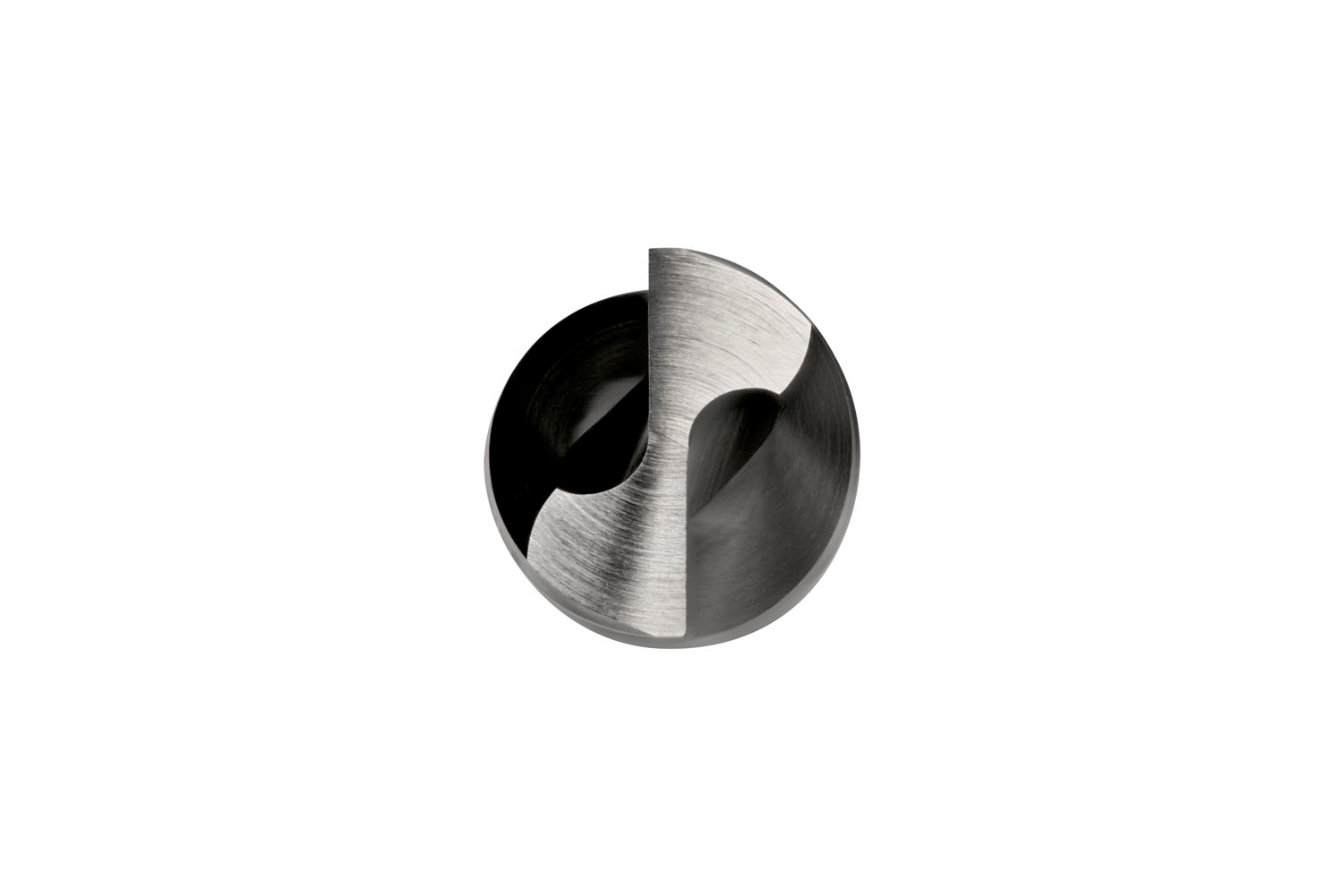

Extra long length PFX drill with straight shank, diameter 8mm with an overall length of 305mm and flute length of 210mm according to DIN 1869 / 2 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

Additional information

Weight 0.1826 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760148808
Product number (SAP): 86012411
Ordering code ANSI: A9778.0X305
Product Line: PFX
Gross weight – grams: 87.7
Cutting diameter – millimeter (DC): 8 mm
Cutting diameter – inch (DC): 0.315 inch
Length chip flute – millimeter (LCF): 210 mm
Overall length – millimeter (OAL): 305 mm
Connection diameter – millimeter (DCON MS): 8 mm
Length chip flute – inch (LCF): 8.2677 inch
ISO: A9778.0X305

Brand

DORMER
