DORMER A9778.5X305 ADX / PFX Drills

Product Code: A9778.5X305

$215.27$195.70 Ex. GST

Product Code: A9778.5X305 SKU A9778.5X305 Categories , ,
DORMER A9778.5X305 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

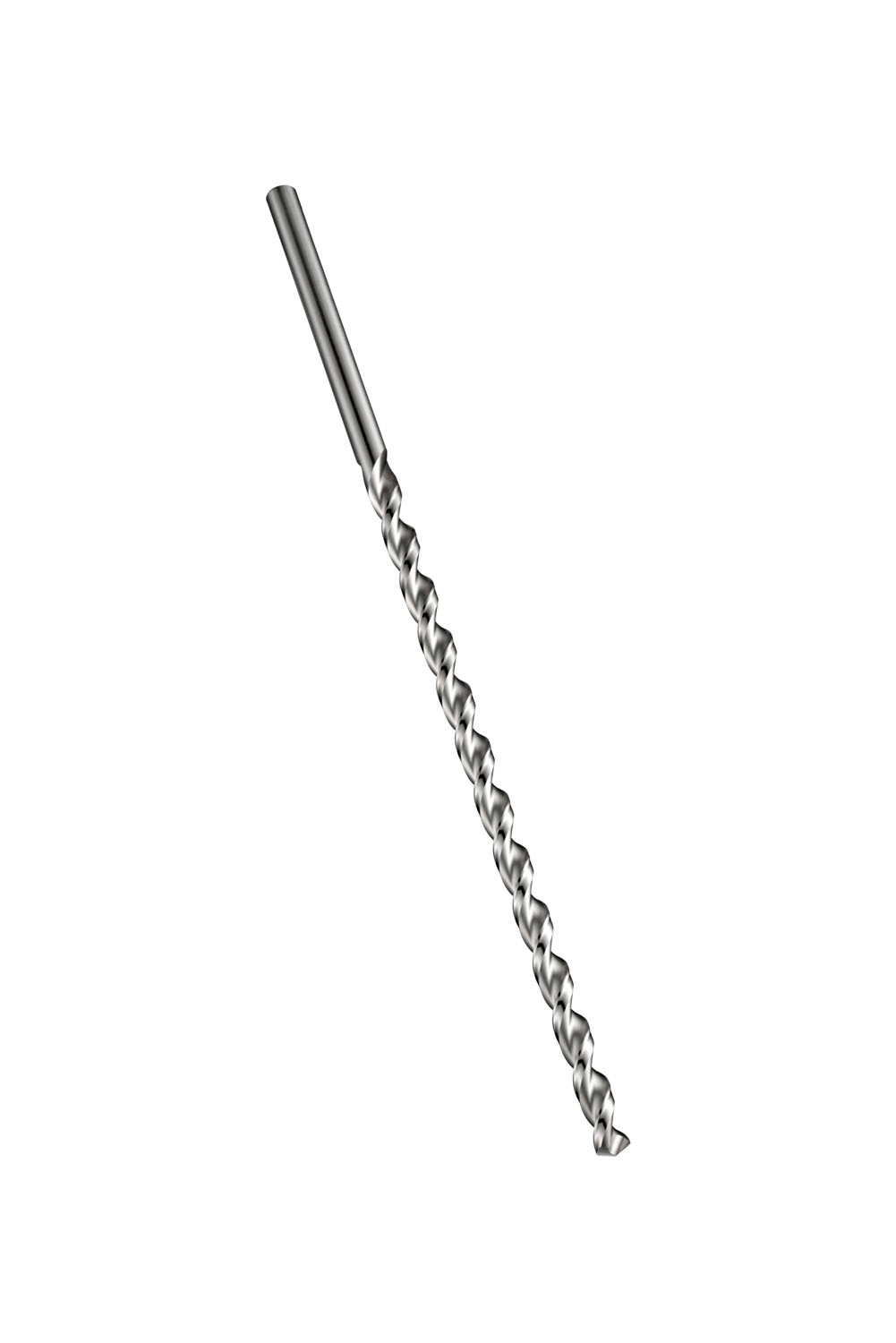

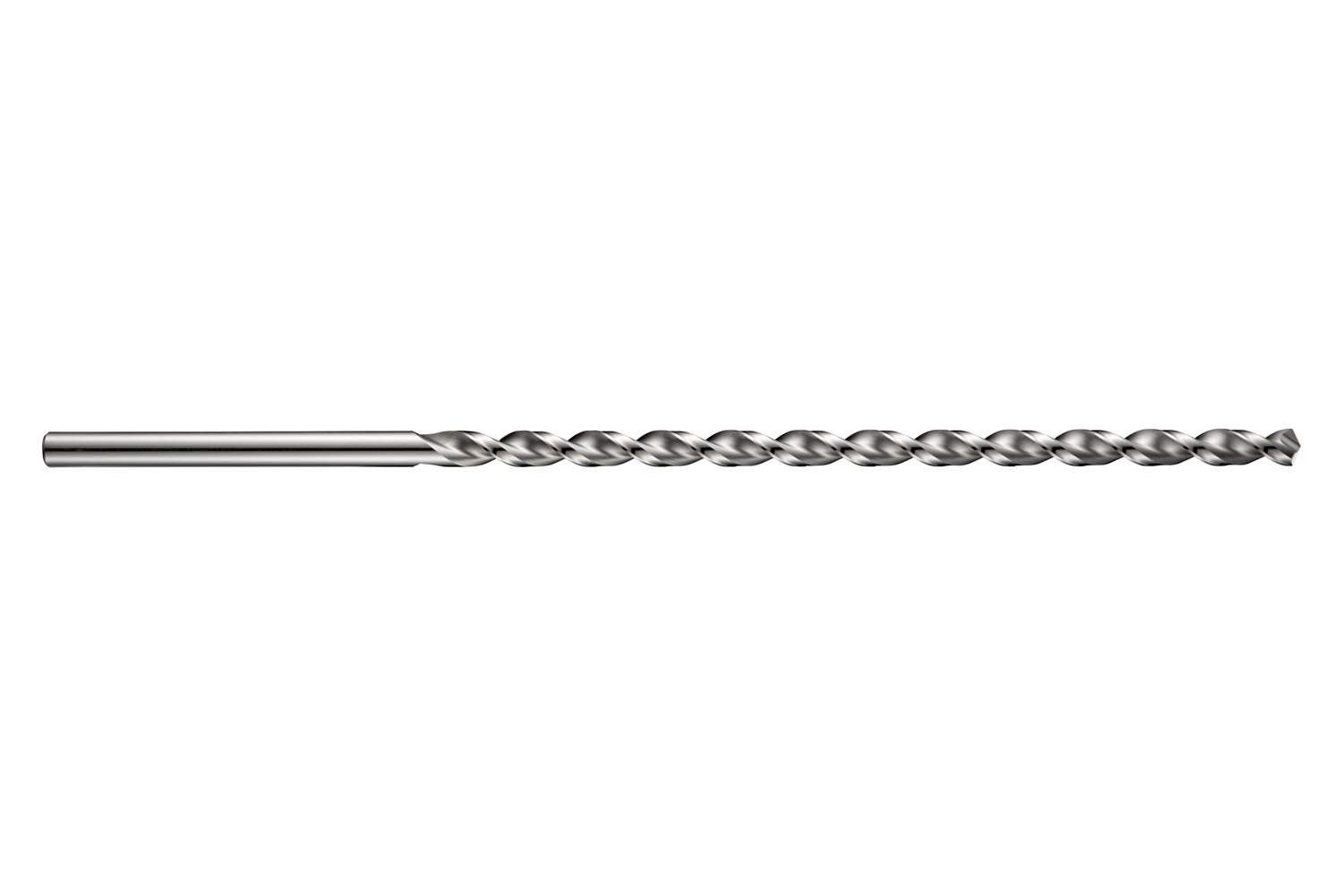

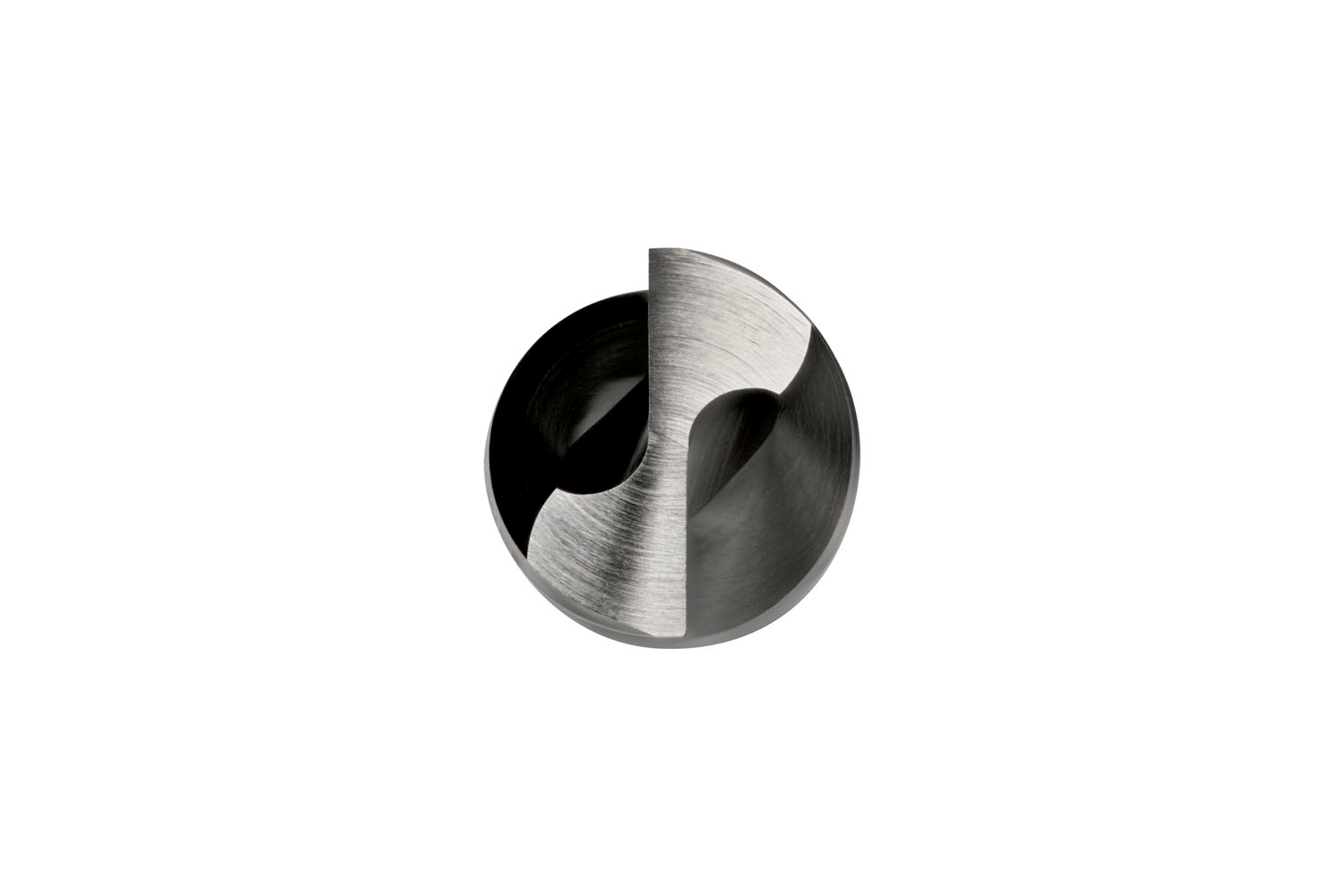

Extra long length PFX drill with straight shank, diameter 8.5mm with an overall length of 305mm and flute length of 210mm according to DIN 1869 / 2 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

Additional information

Weight 0.2090 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760148815
Product number (SAP): 86012412
Ordering code ANSI: A9778.5X305
Product Line: PFX
Gross weight – grams: 95
Cutting diameter – millimeter (DC): 8.5 mm
Cutting diameter – inch (DC): 0.3346 inch
Length chip flute – millimeter (LCF): 210 mm
Overall length – millimeter (OAL): 305 mm
Connection diameter – millimeter (DCON MS): 8.5 mm
Length chip flute – inch (LCF): 8.2677 inch
ISO: A9778.5X305

Brand

DORMER
