DORMER A9779.0X320 ADX / PFX Drills

Product Code: A9779.0X320

$257.40$234.00 Ex. GST

Product Code: A9779.0X320 SKU A9779.0X320 Categories ,

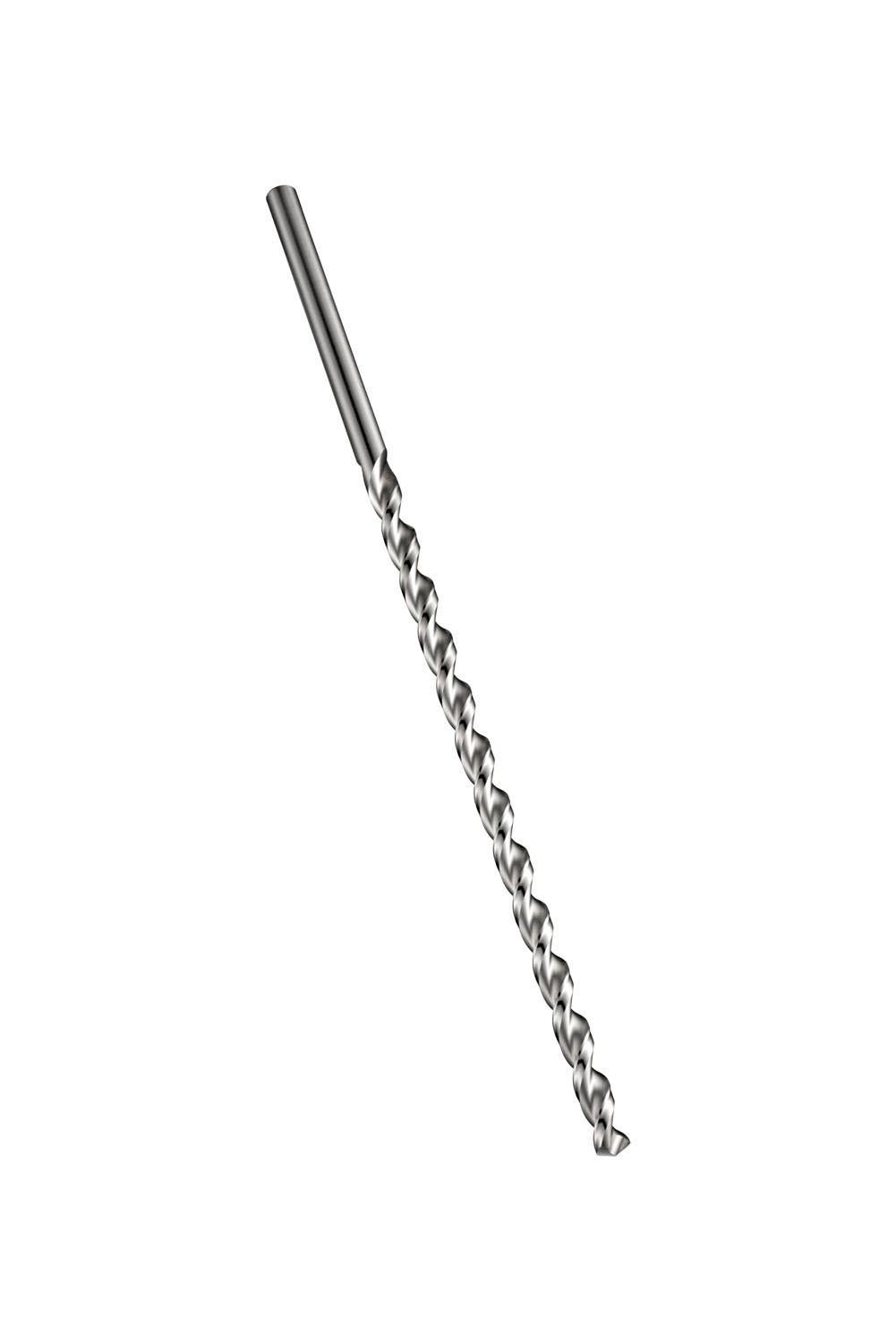

DORMER A9779.0X320 ADX / PFX Drills
DORMER A9779.0X320 ADX / PFX Drills - Image 2

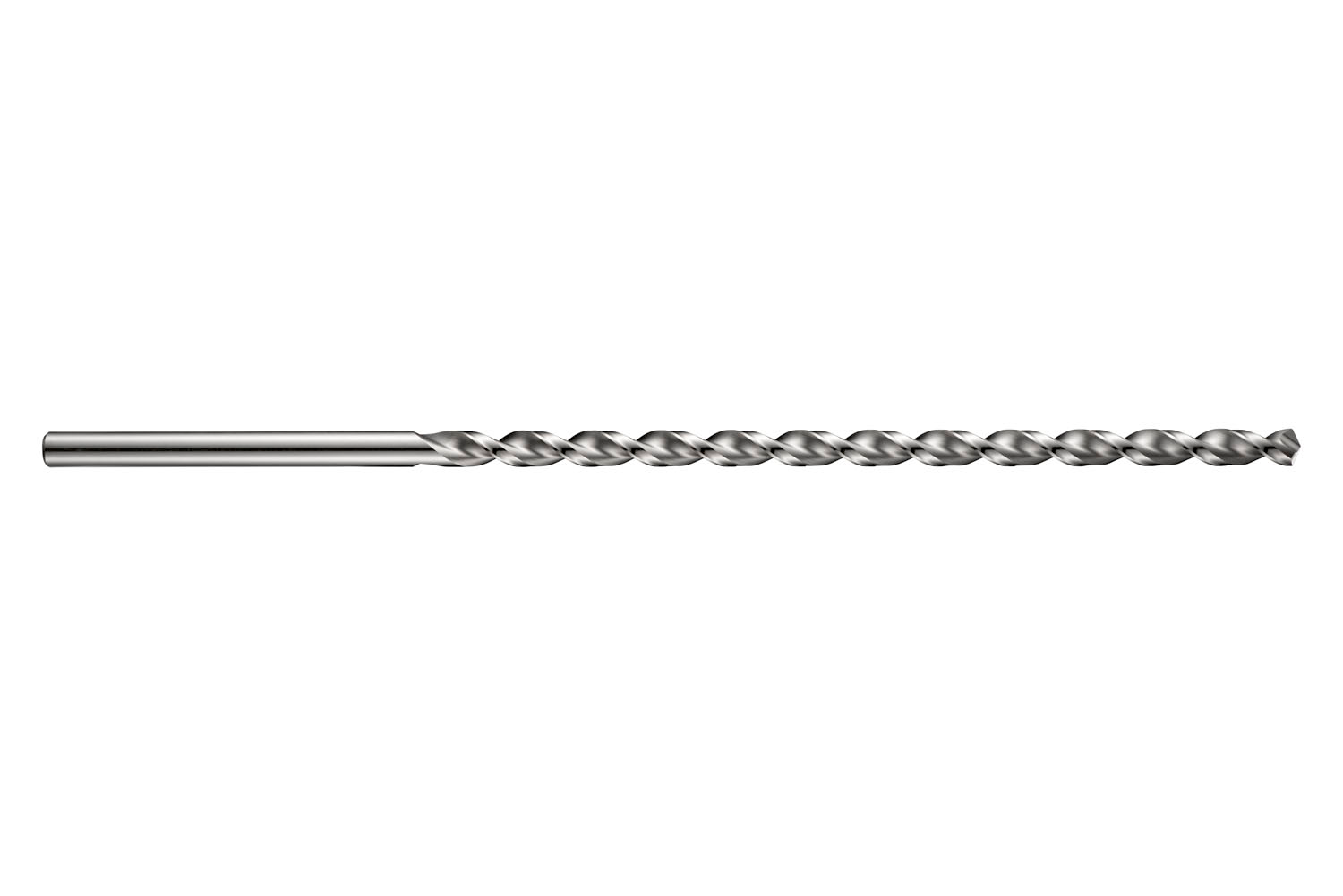

DORMER A9779.0X320 ADX / PFX Drills - Image 3

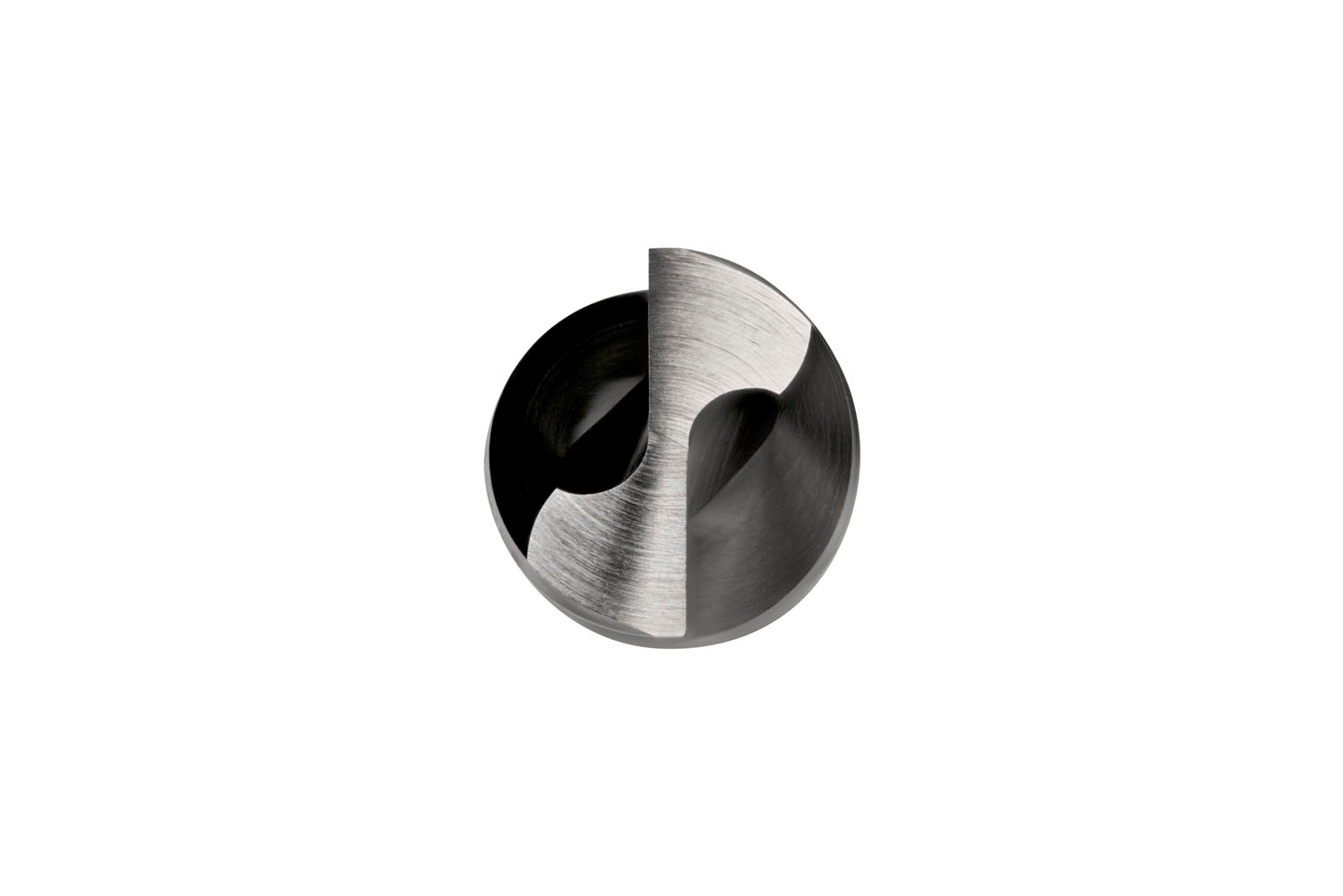

DORMER A9779.0X320 ADX / PFX Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Extra long length PFX drill with straight shank, diameter 9mm with an overall length of 320mm and flute length of 220mm according to DIN 1869 / 2 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 20xD drilling without pecking in steel

Additional information

Weight 0.1075 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760148822
Product number (SAP): 86012413
Ordering code ANSI: A9779.0X320
Product Line: PFX
Gross weight – grams: 107.545
Cutting diameter – millimeter (DC): 9 mm
Cutting diameter – inch (DC): 0.3543 inch
Length chip flute – millimeter (LCF): 220 mm
Overall length – millimeter (OAL): 320 mm
Connection diameter – millimeter (DCON MS): 9 mm
Length chip flute – inch (LCF): 8.6614 inch
ISO: A9779.0X320

Brand

DORMER
