DORMER A9781/4 ADX / PFX Drills

Product Code: A9781/4

$157.49$143.17 Ex. GST

Product Code: A9781/4 SKU A9781/4 Categories , ,
DORMER A9781/4 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

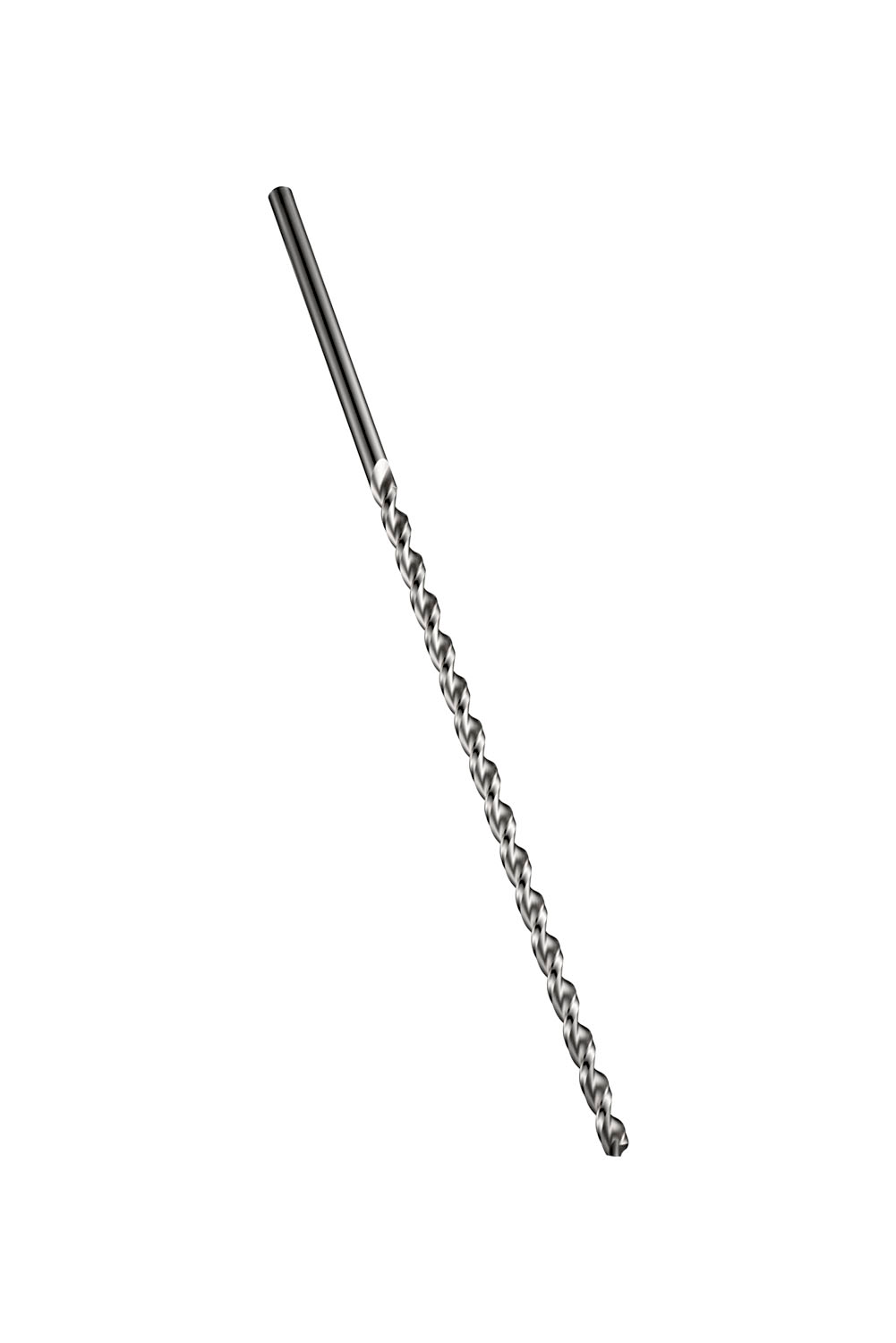

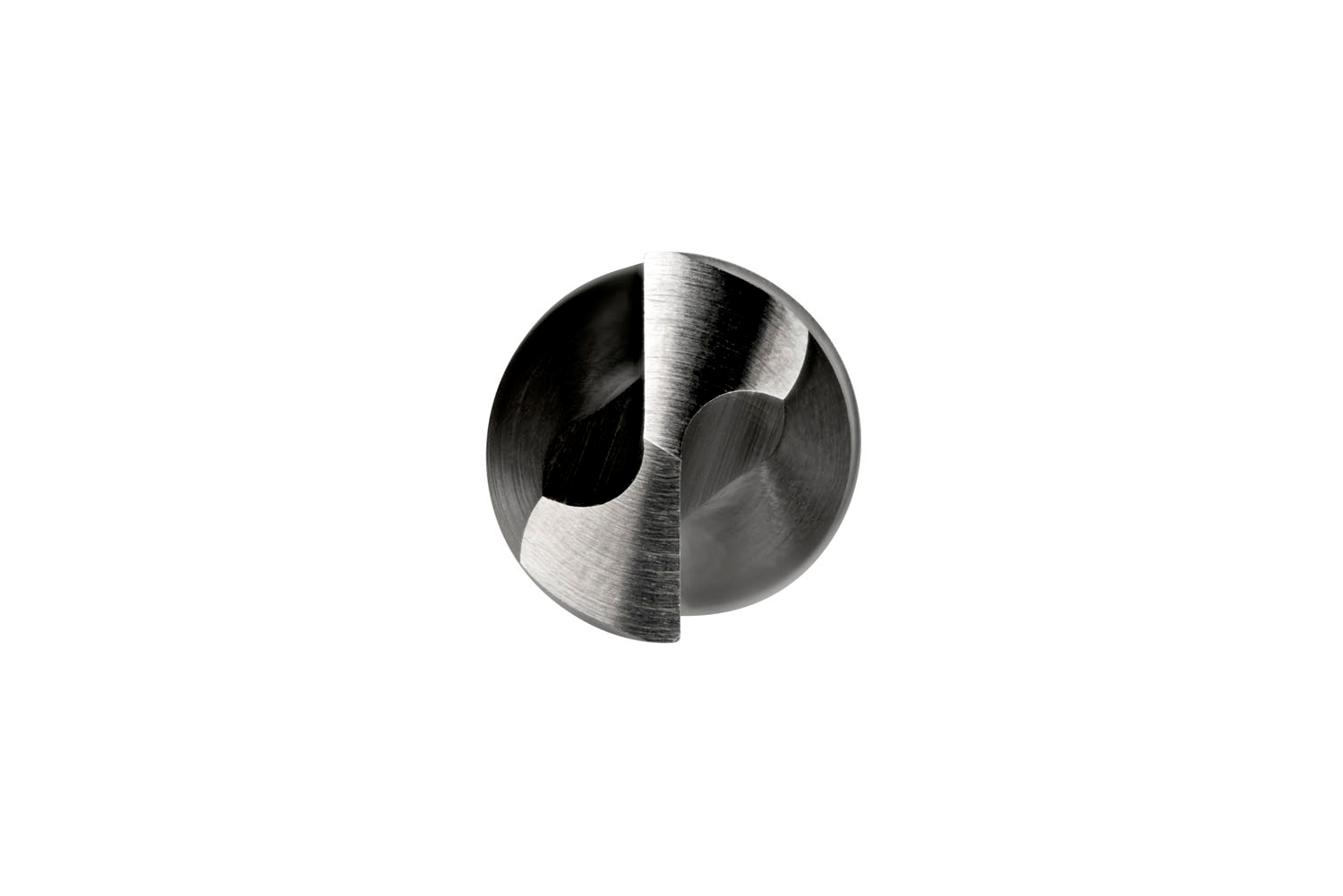

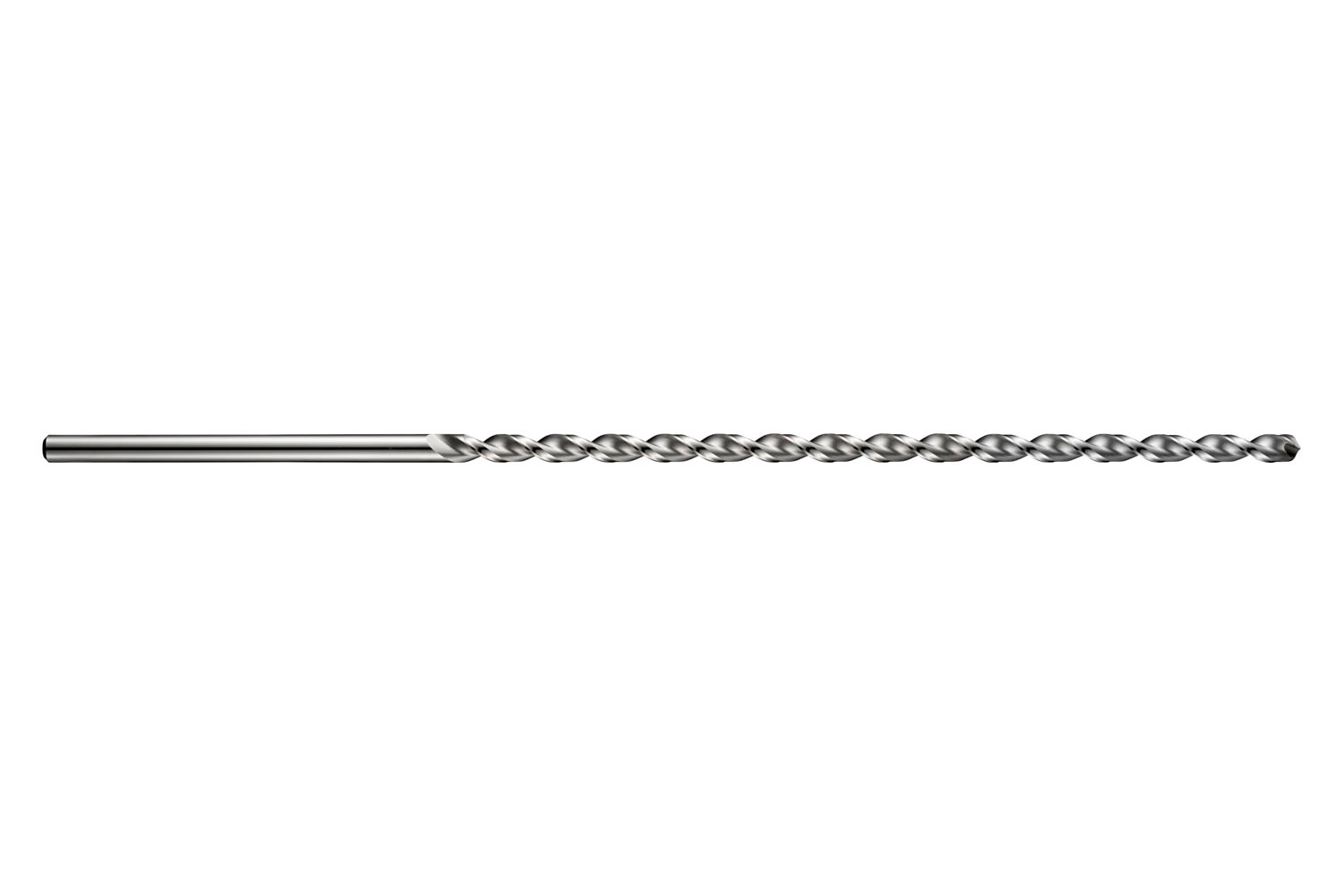

Extra long length PFX drill with straight shank, diameter 0.2500″ (1/4) with an overall length of 350mm and flute length of 235mm according to DIN 1869 / 3 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 25xD drilling without pecking in steel

Additional information

Weight 0.1529 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760347331
Product number (SAP): 86012415
Ordering code ANSI: A9781/4
Product Line: PFX
Gross weight – grams: 73.6
Cutting diameter – fractional inch (DC): 1/4
Cutting diameter – millimeter (DC): 6.35 mm
Cutting diameter – inch (DC): 0.25 inch
Length chip flute – millimeter (LCF): 235 mm
Overall length – millimeter (OAL): 350 mm
Connection diameter – millimeter (DCON MS): 6.35 mm
Length chip flute – inch (LCF): 9.252 inch
ISO: A9781/4

Brand

DORMER
