DORMER A97810.0X430 ADX / PFX Drills

Product Code: A97810.0X430

$338.77$307.97 Ex. GST

Product Code: A97810.0X430 SKU A97810.0X430 Categories , ,
DORMER A97810.0X430 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

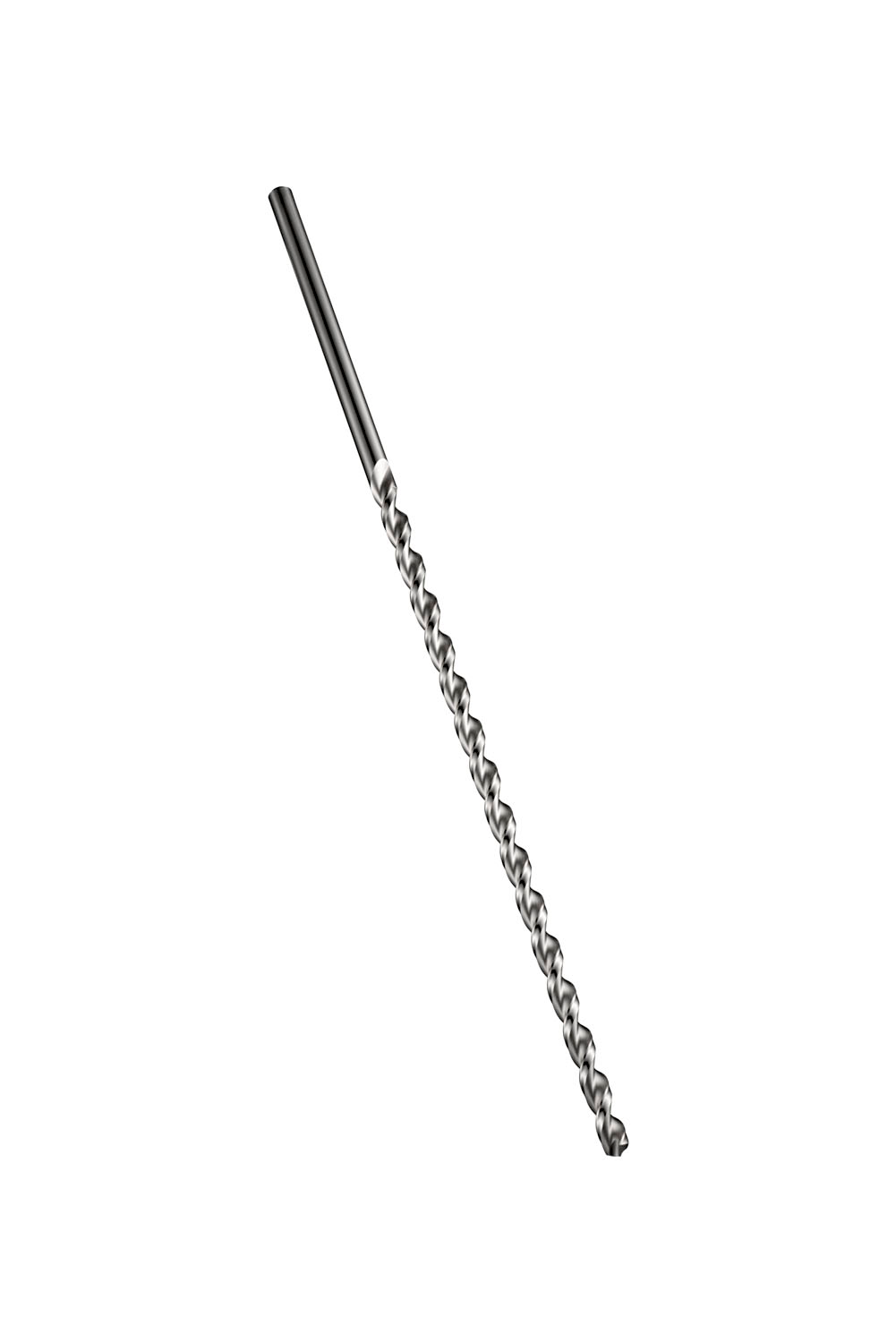

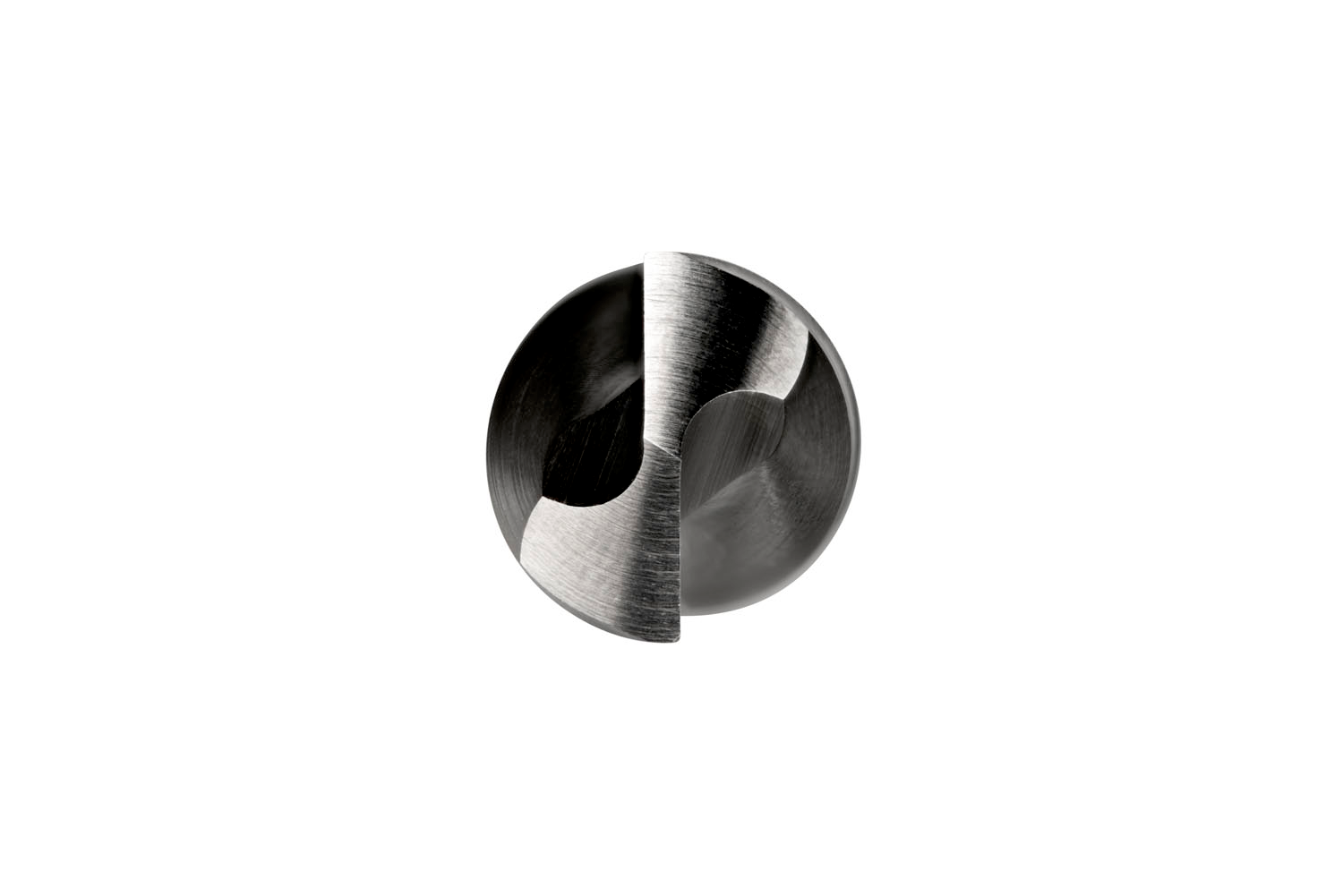

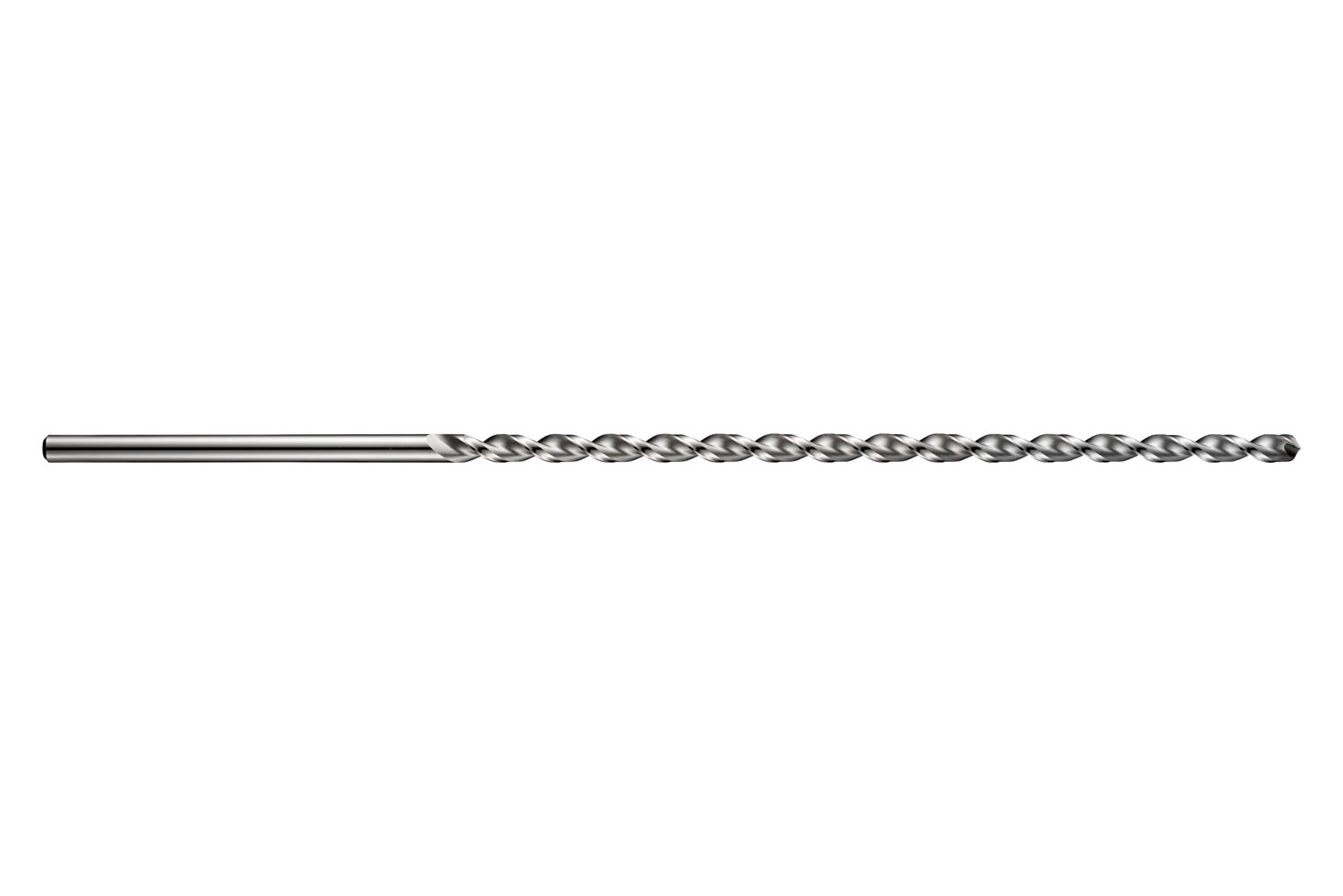

Extra long length PFX drill with straight shank, diameter 10mm with an overall length of 430mm and flute length of 295mm according to DIN 1869 / 3 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 25xD drilling without pecking in steel

Additional information

Weight 0.3289 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760148983
Product number (SAP): 86012416
Ordering code ANSI: A97810.0X430
Product Line: PFX
Gross weight – grams: 196
Cutting diameter – millimeter (DC): 10 mm
Cutting diameter – inch (DC): 0.3937 inch
Length chip flute – millimeter (LCF): 295 mm
Overall length – millimeter (OAL): 430 mm
Connection diameter – millimeter (DCON MS): 10 mm
Length chip flute – inch (LCF): 11.6142 inch
ISO: A97810.0X430

Brand

DORMER
