DORMER A9785.0X315 ADX / PFX Drills

Product Code: A9785.0X315

$110.47$100.43 Ex. GST

Product Code: A9785.0X315 SKU A9785.0X315 Categories , ,
DORMER A9785.0X315 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

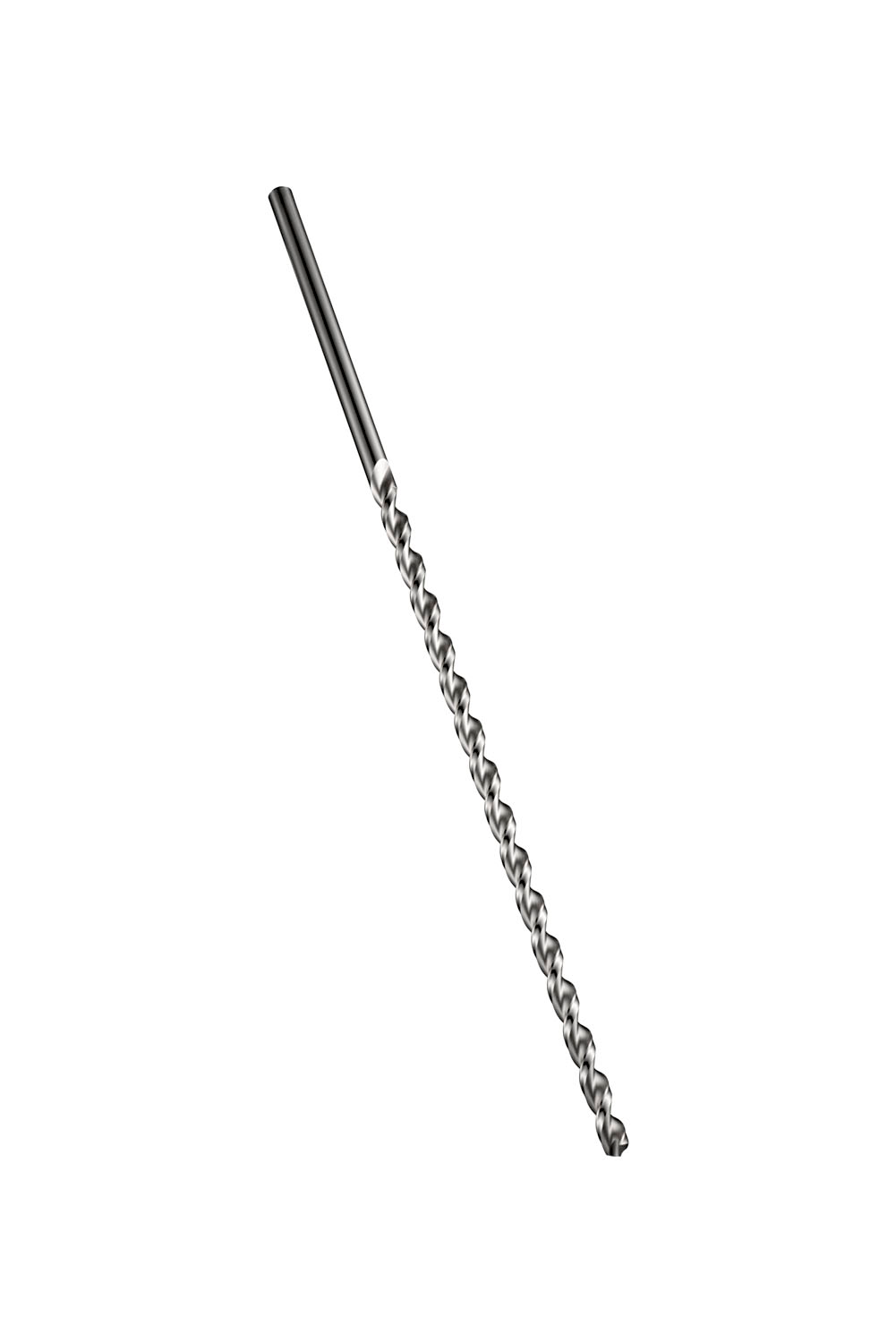

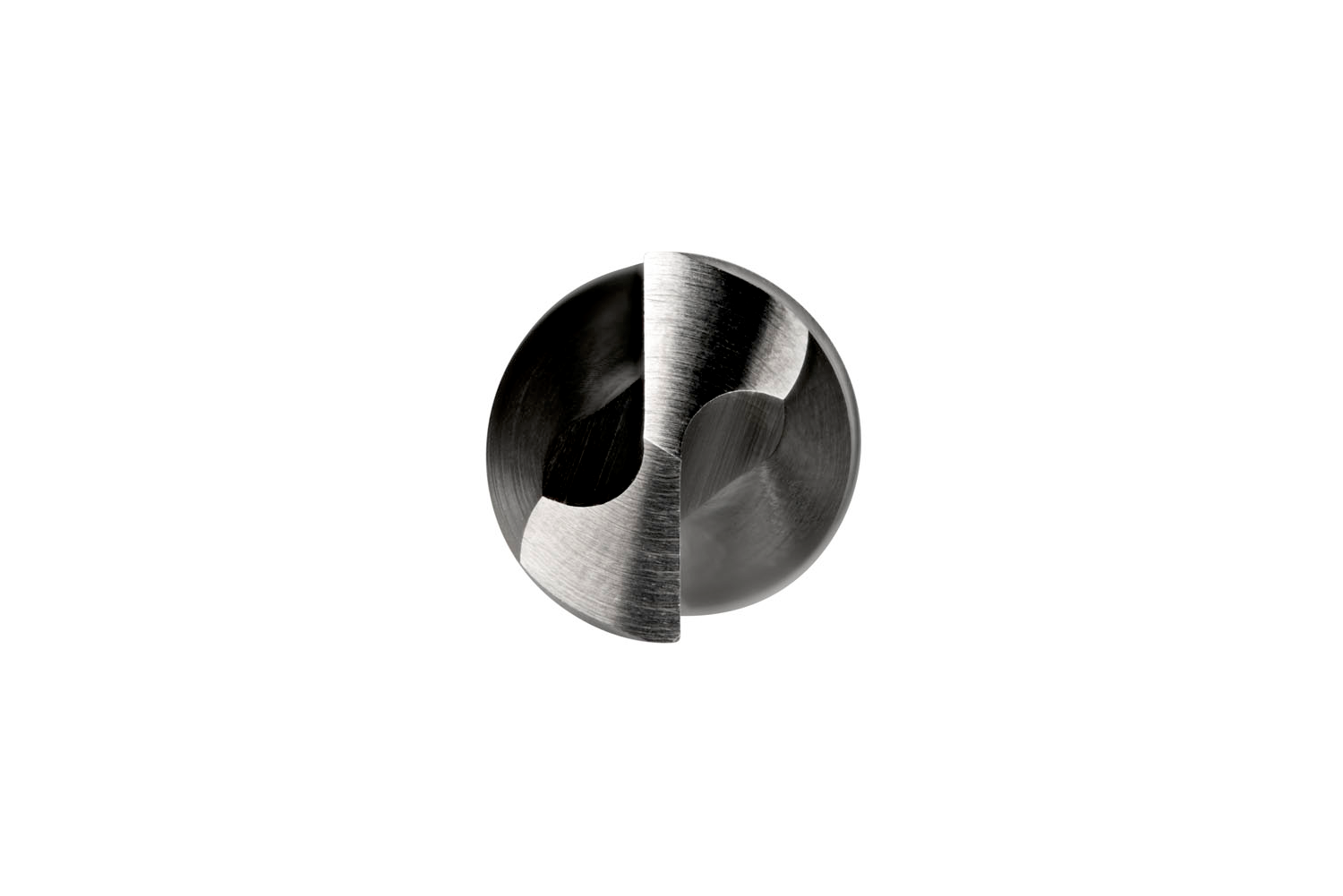

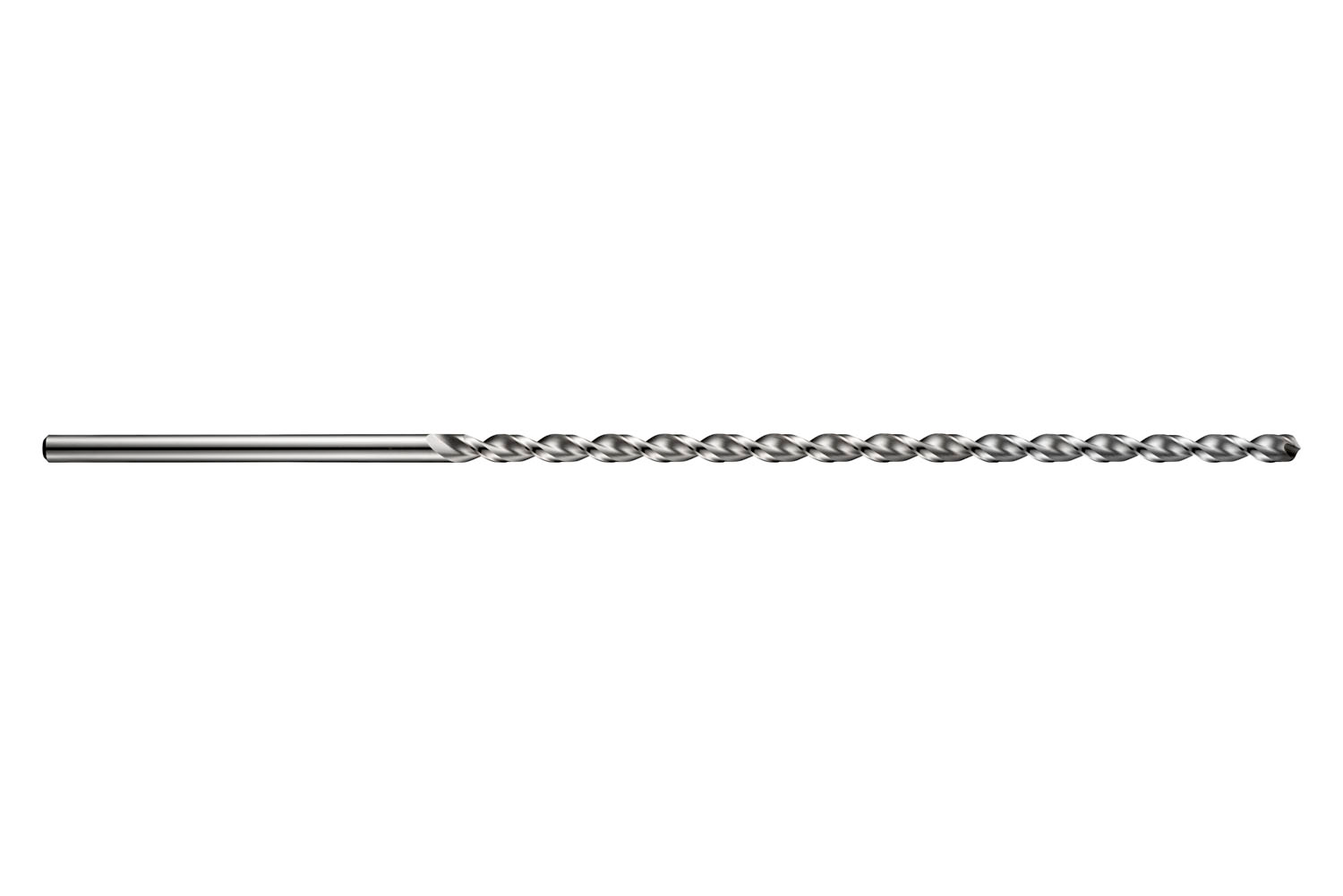

Extra long length PFX drill with straight shank, diameter 5mm with an overall length of 315mm and flute length of 210mm according to DIN 1869 / 3 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 25xD drilling without pecking in steel

Additional information

Weight 0.1073 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760148884
Product number (SAP): 86012421
Ordering code ANSI: A9785.0X315
Product Line: PFX
Gross weight – grams: 40.3
Cutting diameter – millimeter (DC): 5 mm
Cutting diameter – inch (DC): 0.1969 inch
Length chip flute – millimeter (LCF): 210 mm
Overall length – millimeter (OAL): 315 mm
Connection diameter – millimeter (DCON MS): 5 mm
Length chip flute – inch (LCF): 8.2677 inch
ISO: A9785.0X315

Brand

DORMER
