DORMER A9787.0X370 ADX / PFX Drills

Product Code: A9787.0X370

$189.21$172.01 Ex. GST

Product Code: A9787.0X370 SKU A9787.0X370 Categories , ,
DORMER A9787.0X370 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

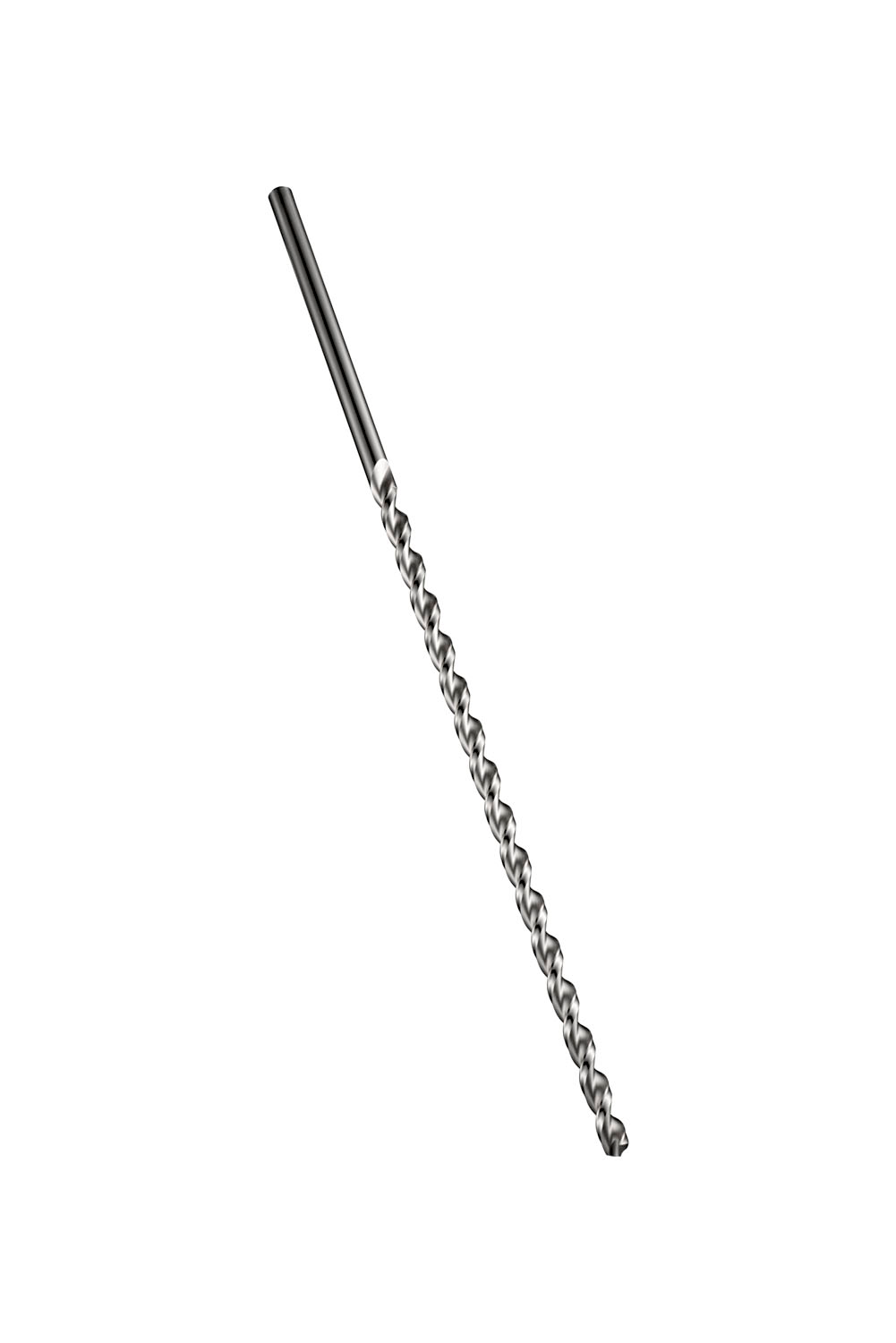

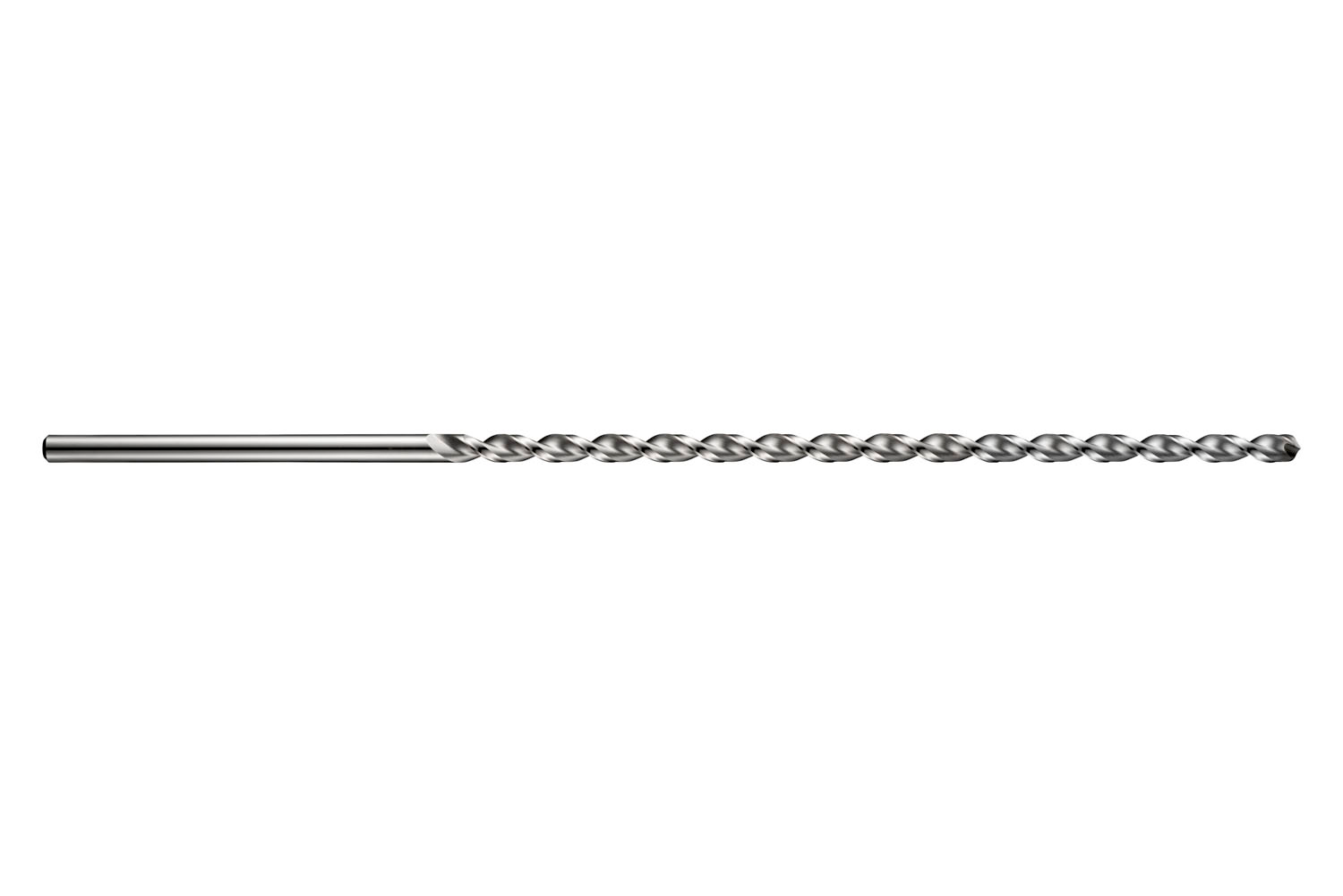

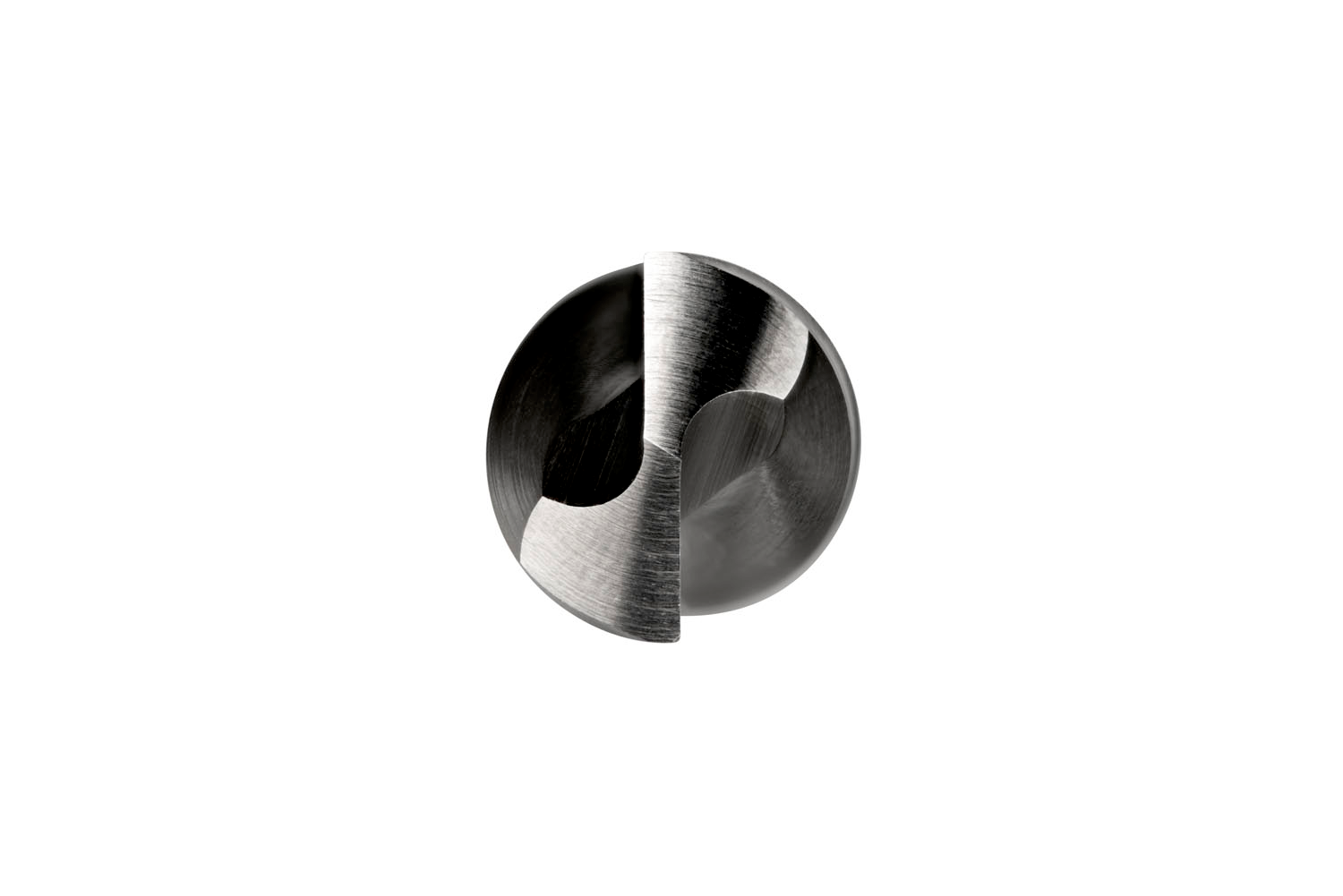

Extra long length PFX drill with straight shank, diameter 7mm with an overall length of 370mm and flute length of 250mm according to DIN 1869 / 3 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 25xD drilling without pecking in steel

Additional information

Weight 0.1837 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760148921
Product number (SAP): 86012425
Ordering code ANSI: A9787.0X370
Product Line: PFX
Gross weight – grams: 60

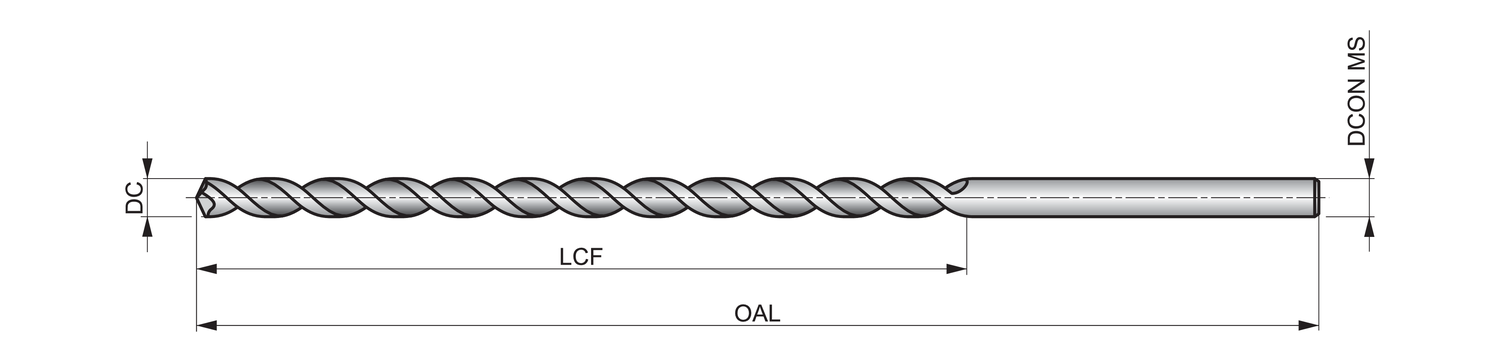

Cutting diameter – millimeter (DC): 7 mm
Cutting diameter – inch (DC): 0.2756 inch
Length chip flute – millimeter (LCF): 250 mm
Overall length – millimeter (OAL): 370 mm
Connection diameter – millimeter (DCON MS): 7 mm
Length chip flute – inch (LCF): 9.8425 inch
ISO: A9787.0X370

Brand

DORMER
