DORMER A9788.0X390 ADX / PFX Drills

Product Code: A9788.0X390

$233.40$212.18 Ex. GST

Product Code: A9788.0X390 SKU A9788.0X390 Categories , ,
DORMER A9788.0X390 ADX / PFX Drills

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

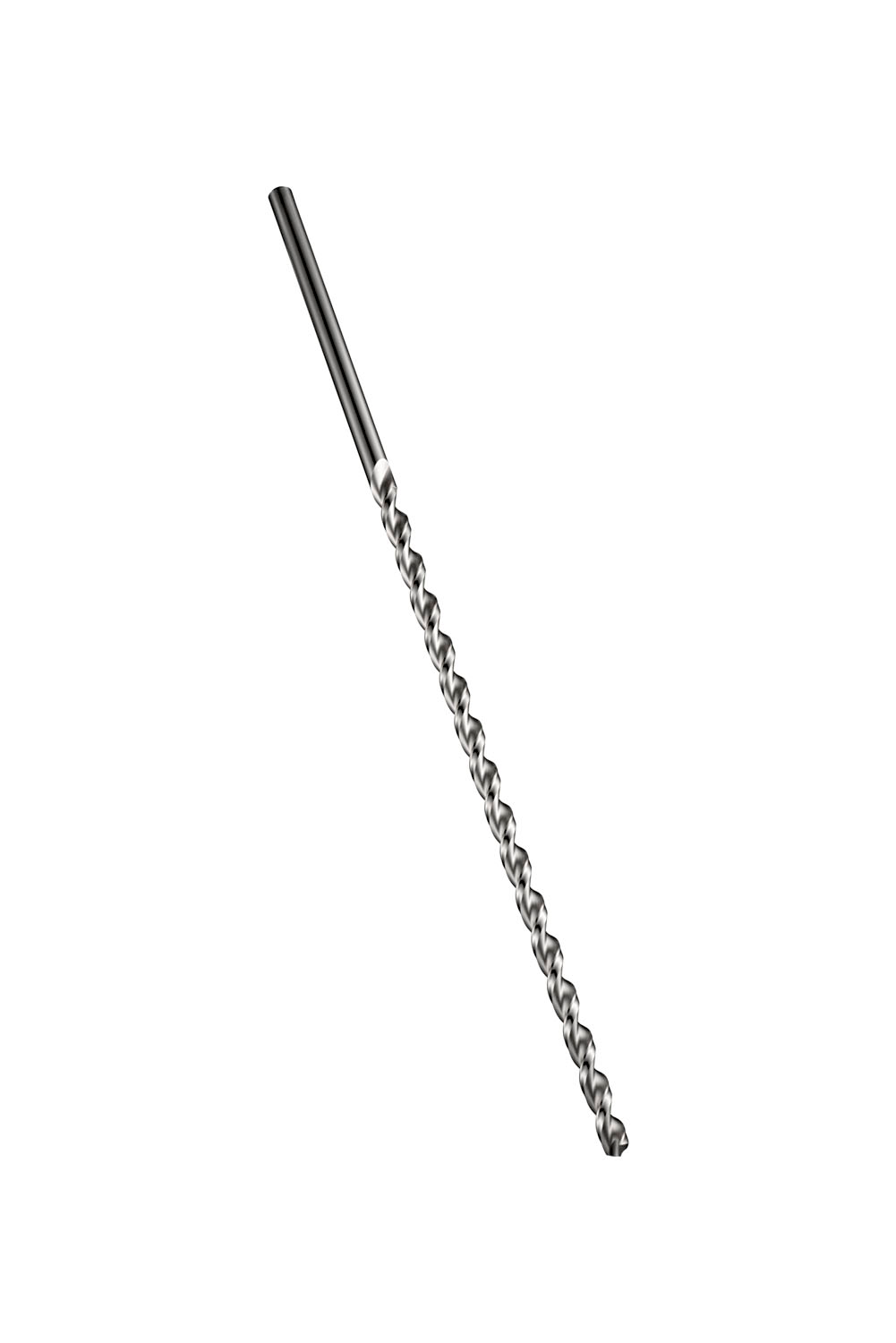

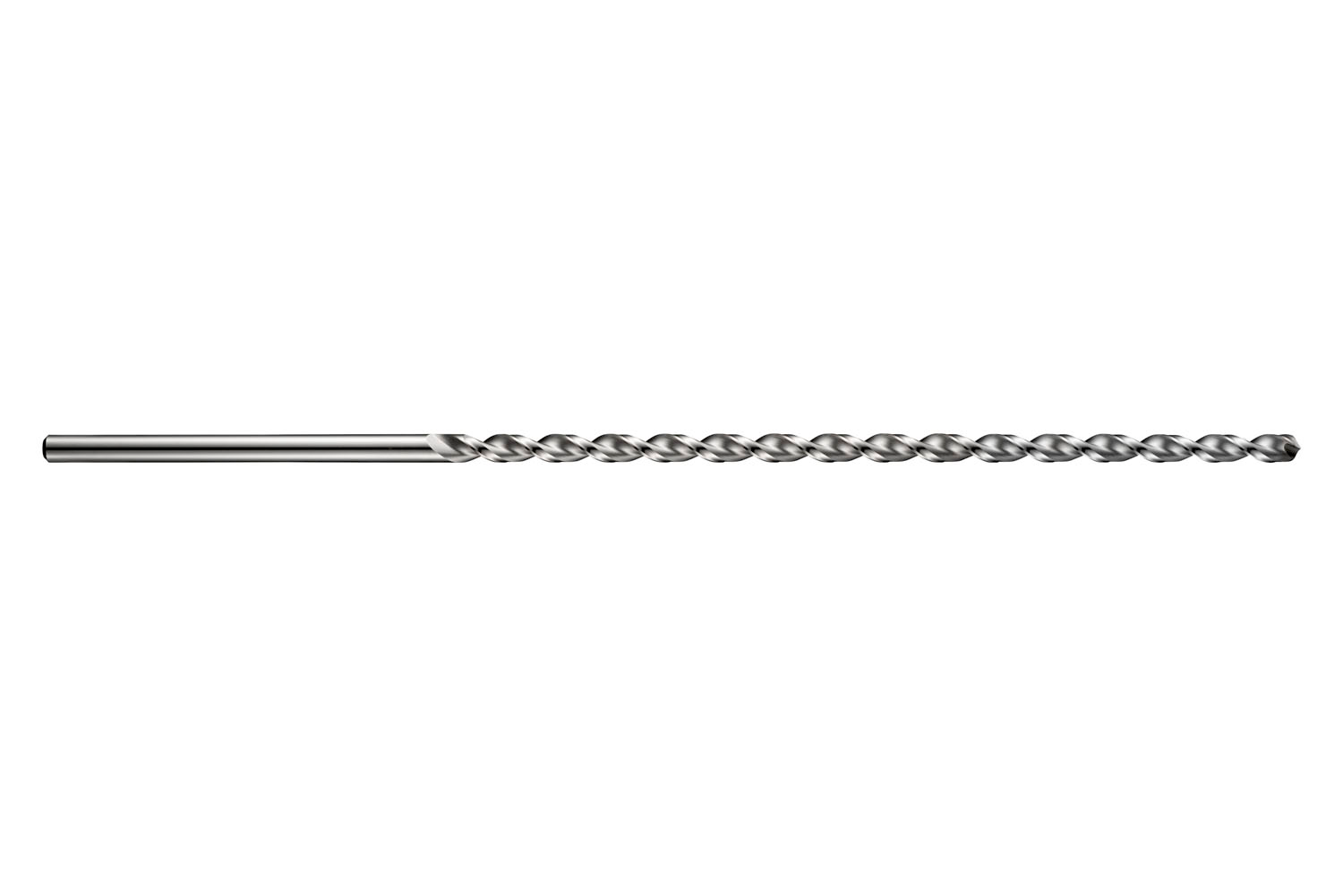

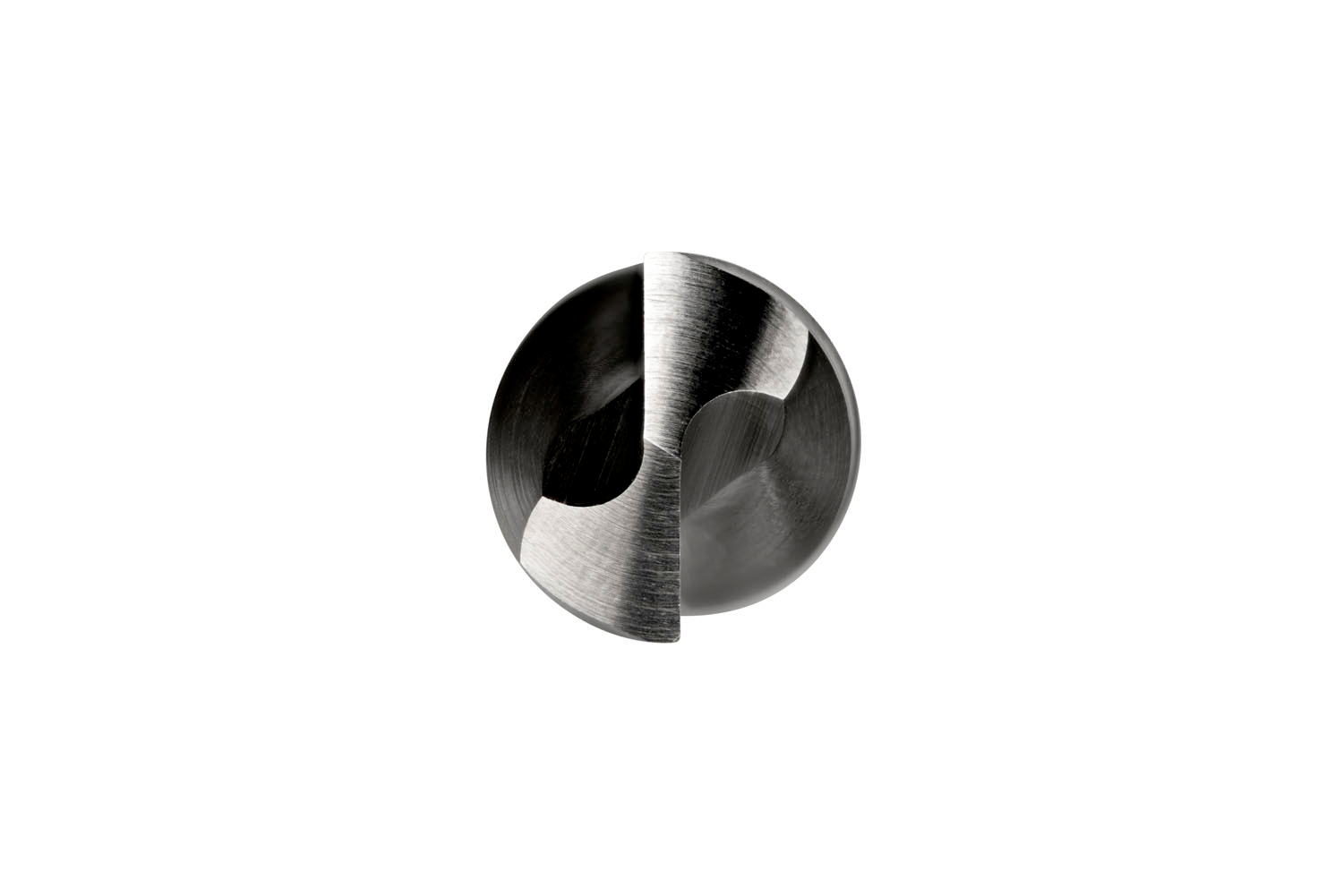

Extra long length PFX drill with straight shank, diameter 8mm with an overall length of 390mm and flute length of 265mm according to DIN 1869 / 3 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 25xD drilling without pecking in steel

Additional information

Weight 0.2266 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760148945
Product number (SAP): 86012427
Ordering code ANSI: A9788.0X390
Product Line: PFX
Gross weight – grams: 130
Cutting diameter – millimeter (DC): 8 mm
Cutting diameter – inch (DC): 0.315 inch
Length chip flute – millimeter (LCF): 265 mm
Overall length – millimeter (OAL): 390 mm
Connection diameter – millimeter (DCON MS): 8 mm
Length chip flute – inch (LCF): 10.4331 inch
ISO: A9788.0X390

Brand

DORMER
