DORMER B1001/4 HSS Reamers

Product Code: B1001/4

$60.05$54.59 Ex. GST

Product Code: B1001/4 SKU B1001/4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

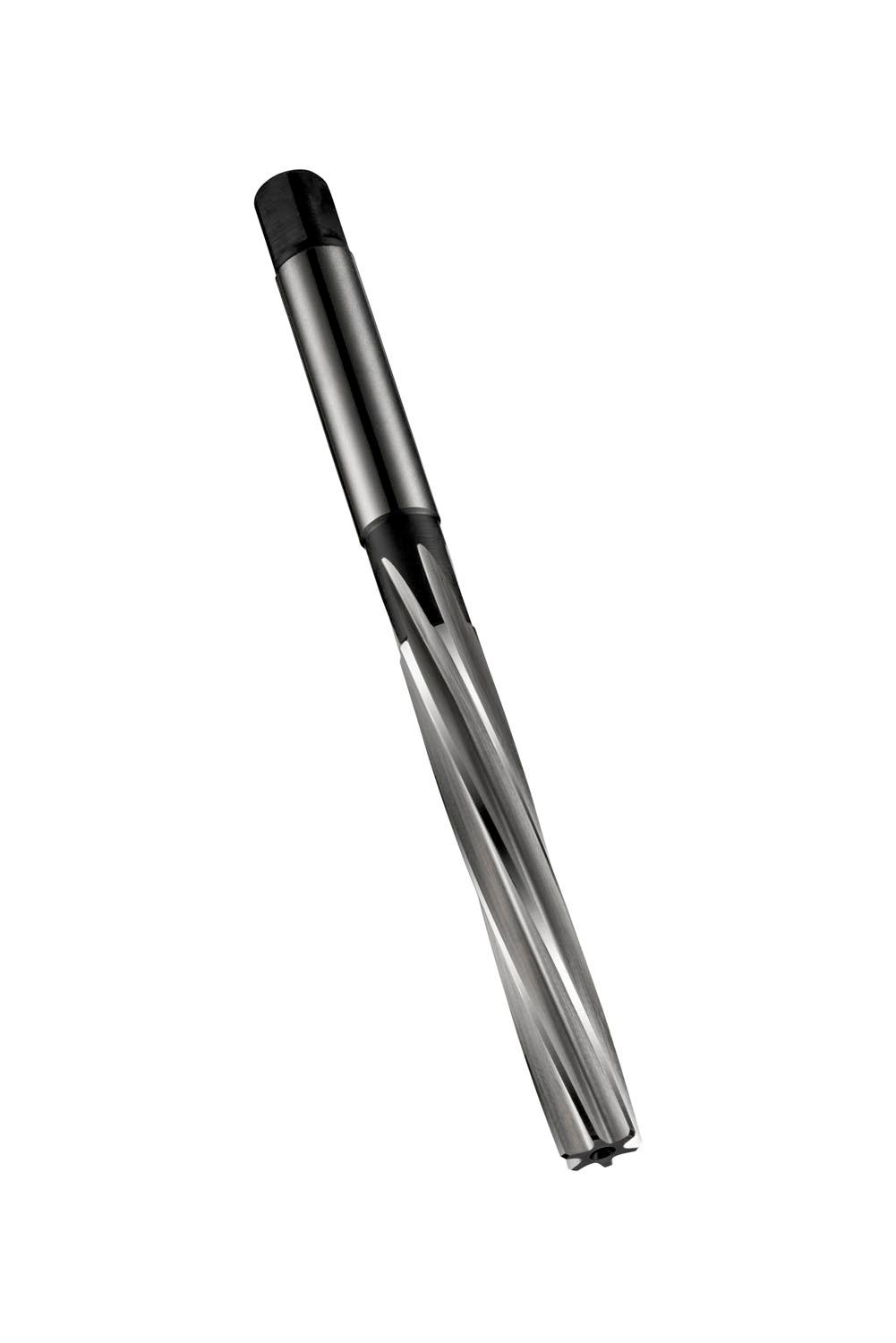

Hand reamer with left hand slow spiral flutes and a square drive, diameter 6.35mm (1/4″) with an overall length of 100mm, a flute length of 50mm and 13mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0583 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760179710
Product number (SAP): 86012436
Ordering code ANSI: B1001/4
Gross weight – grams: 24.5
Cutting diameter – fractional inch (DC): 1/4
Cutting diameter – millimeter (DC): 6.35 mm
Overall length – millimeter (OAL): 100 mm
Length chip flute – millimeter (LCF): 50 mm
Distance Reference Point PK – millimeters (LDC): 13 mm
Flute count (NOF): 6
Clamping width – millimeter (WSC): 4.9 mm
Connection diameter – millimeter (DCON MS): 6.35 mm
ISO: B1001/4

Brand

DORMER
