DORMER B1001 HSS Reamers

Product Code: B1001

$413.55$375.95 Ex. GST

Product Code: B1001 SKU B1001 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

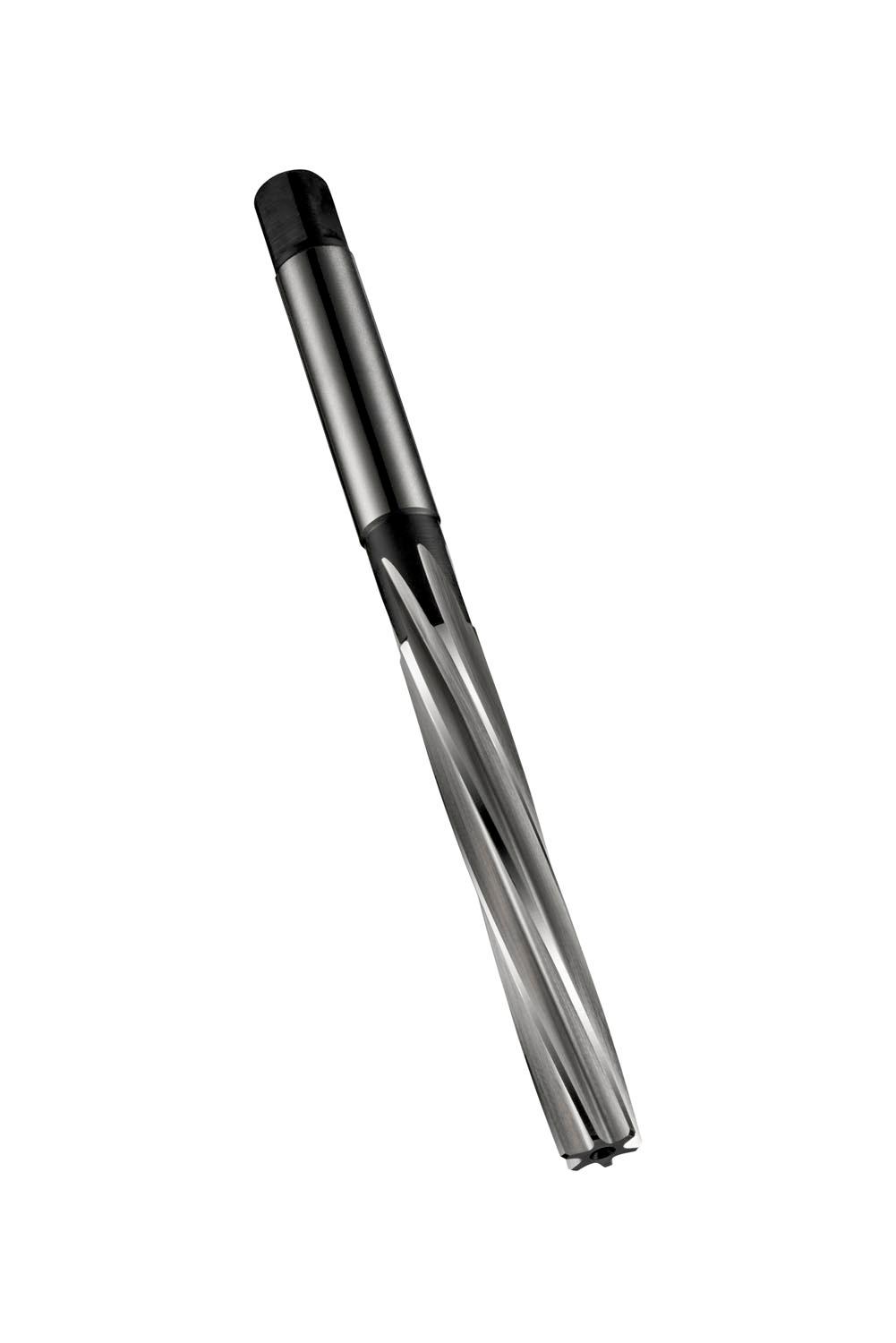

Hand reamer with left hand slow spiral flutes and a square drive, diameter 25.40mm (1″) with an overall length of 231mm, a flute length of 115mm and 29mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.4015 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760179970
Product number (SAP): 86012431
Ordering code ANSI: B1001
Gross weight – grams: 783.9
Cutting diameter – fractional inch (DC): 1"
Cutting diameter – millimeter (DC): 25.4 mm
Overall length – millimeter (OAL): 231 mm
Length chip flute – millimeter (LCF): 115 mm
Distance Reference Point PK – millimeters (LDC): 29 mm
Flute count (NOF): 8
Clamping width – millimeter (WSC): 20 mm
Connection diameter – millimeter (DCON MS): 25.4 mm
ISO: B1001

Brand

DORMER
