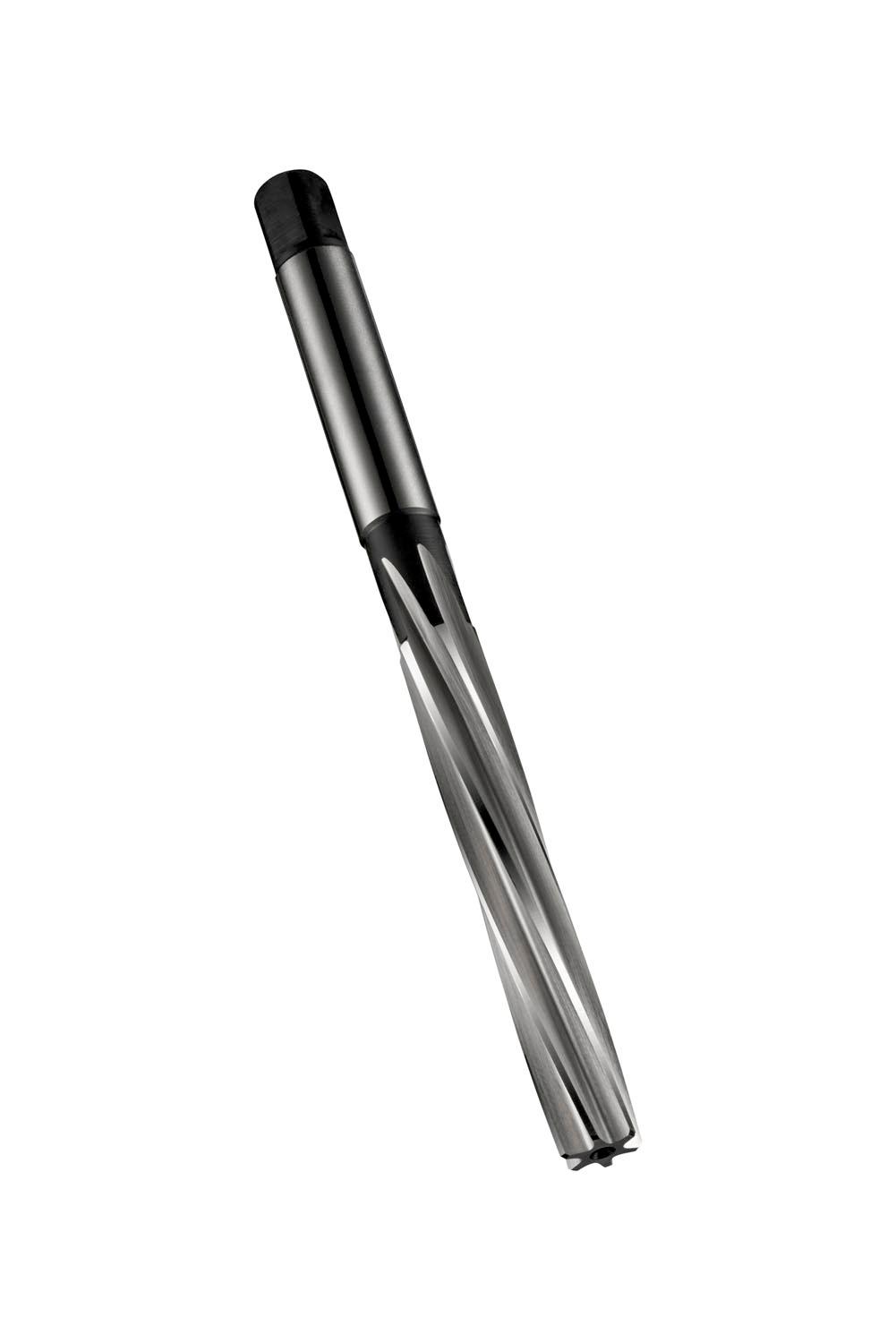

DORMER B10017.0 HSS Reamers

Product Code: B10017.0

$193.74$176.13 Ex. GST

Product Code: B10017.0 SKU B10017.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Hand reamer with left hand slow spiral flutes and a square drive, diameter 17.00mm with an overall length of 175mm, a flute length of 87mm and 22mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1881 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760048580
Product number (SAP): 86012457
Ordering code ANSI: B10017.0
Gross weight – grams: 260.1
Cutting diameter – millimeter (DC): 17 mm
Overall length – millimeter (OAL): 175 mm
Length chip flute – millimeter (LCF): 87 mm
Distance Reference Point PK – millimeters (LDC): 22 mm
Flute count (NOF): 8
Clamping width – millimeter (WSC): 13 mm
Connection diameter – millimeter (DCON MS): 17 mm
ISO: B10017.0

Brand

DORMER
