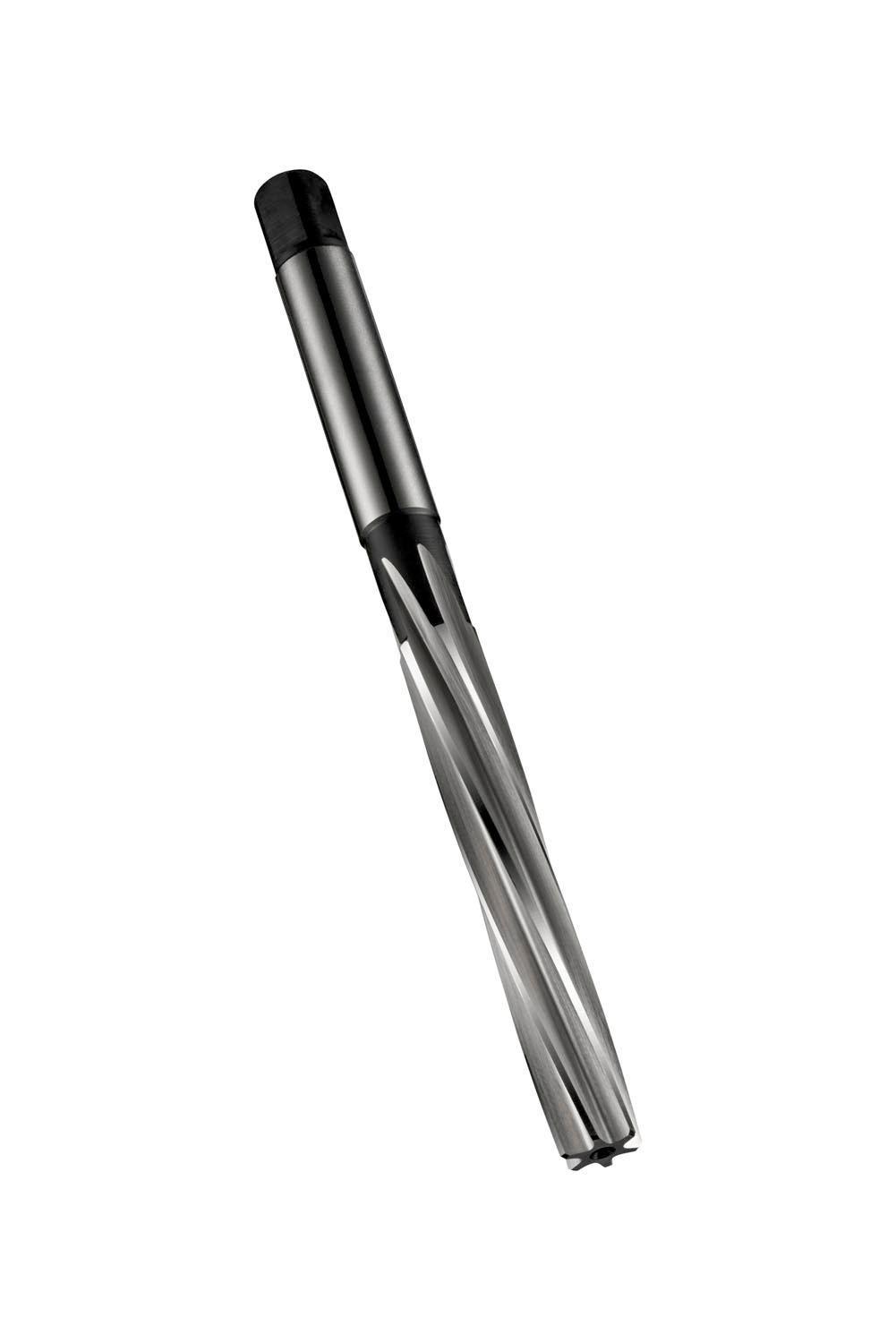

DORMER B1002.5 HSS Reamers

Product Code: B1002.5

$84.98$77.25 Ex. GST

Product Code: B1002.5 SKU B1002.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Hand reamer with left hand slow spiral flutes and a square drive, diameter 2.50mm with an overall length of 58mm, a flute length of 29mm and 7mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0825 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760048634
Product number (SAP): 86012465
Ordering code ANSI: B1002.5
Gross weight – grams: 4.4
Cutting diameter – millimeter (DC): 2.5 mm
Overall length – millimeter (OAL): 58 mm
Length chip flute – millimeter (LCF): 29 mm
Distance Reference Point PK – millimeters (LDC): 7 mm
Flute count (NOF): 4
Clamping width – millimeter (WSC): 2.1 mm
Connection diameter – millimeter (DCON MS): 2.5 mm
ISO: B1002.5

Brand

DORMER
