DORMER B10022.0 HSS Reamers

Product Code: B10022.0

$282.12$256.47 Ex. GST

Product Code: B10022.0 SKU B10022.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

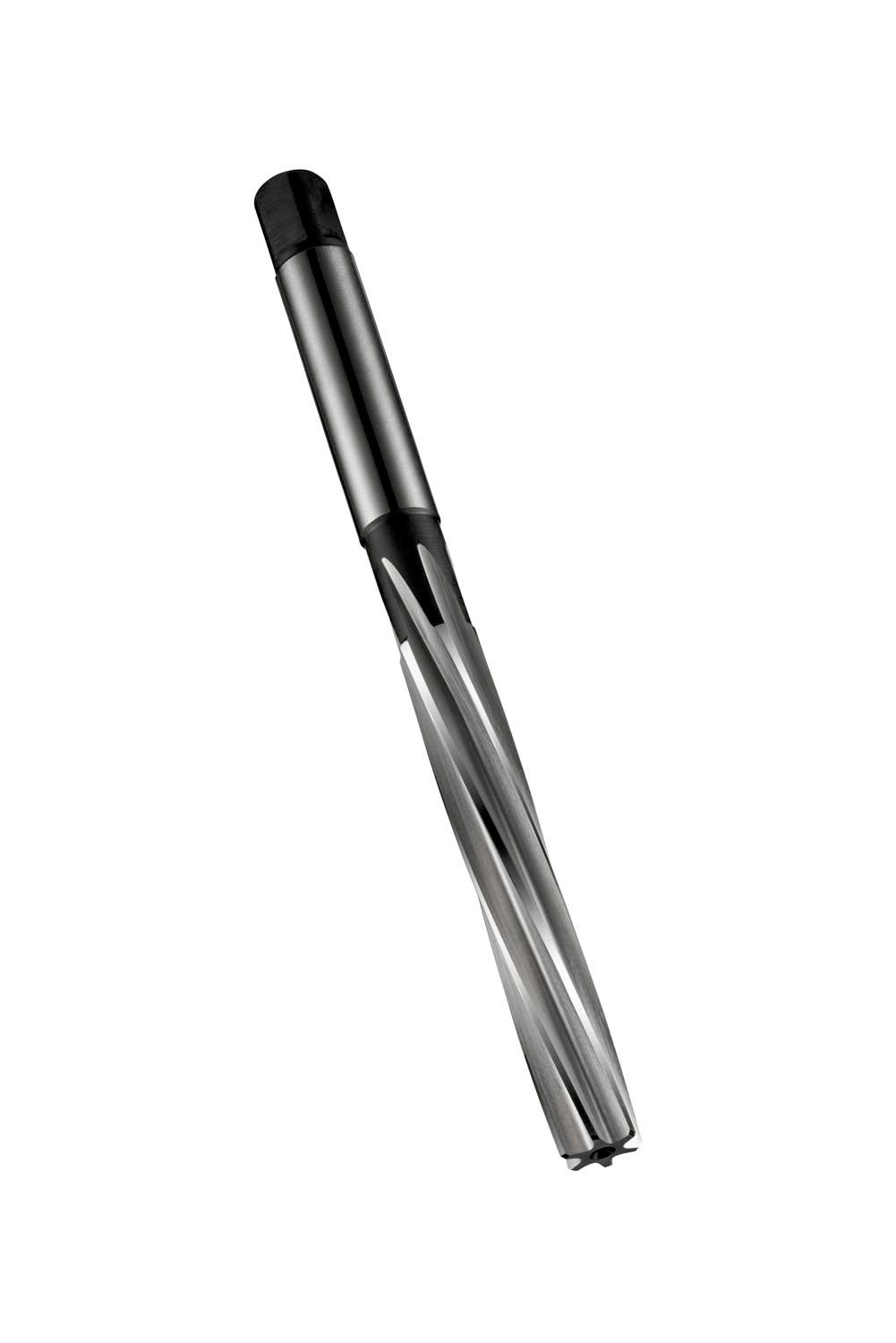

Hand reamer with left hand slow spiral flutes and a square drive, diameter 22.00mm with an overall length of 215mm, a flute length of 107mm and 27mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.2739 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760048665
Product number (SAP): 86012469
Ordering code ANSI: B10022.0
Gross weight – grams: 539.5
Cutting diameter – millimeter (DC): 22 mm
Overall length – millimeter (OAL): 215 mm
Length chip flute – millimeter (LCF): 107 mm
Distance Reference Point PK – millimeters (LDC): 27 mm
Flute count (NOF): 8
Clamping width – millimeter (WSC): 18 mm
Connection diameter – millimeter (DCON MS): 22 mm
ISO: B10022.0

Brand

DORMER
