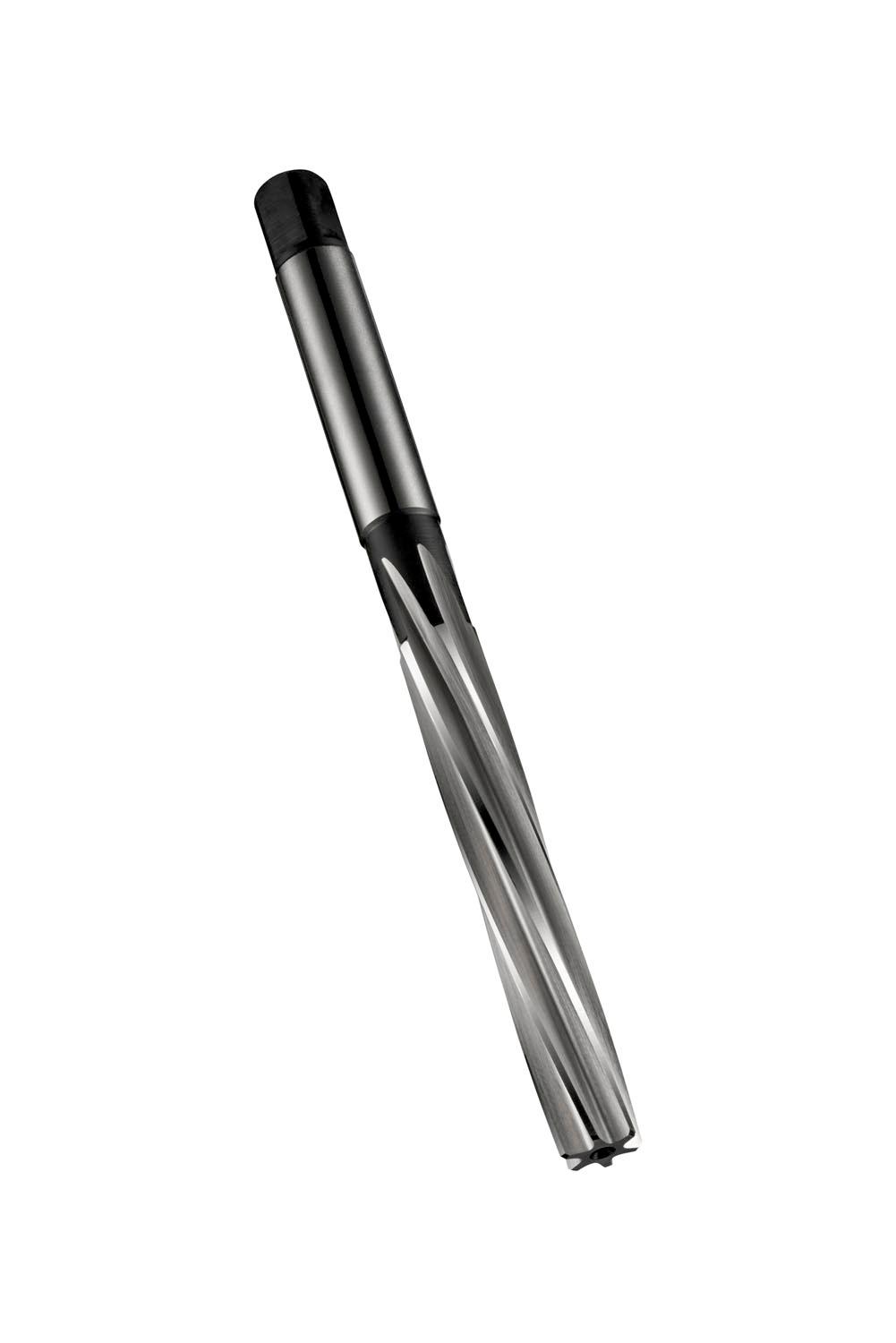

DORMER B1003.2 HSS Reamers

Product Code: B1003.2

$95.17$86.52 Ex. GST

Product Code: B1003.2 SKU B1003.2 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Hand reamer with left hand slow spiral flutes and a square drive, diameter 3.20mm with an overall length of 66mm, a flute length of 33mm and 8mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0924 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760048726
Product number (SAP): 86012480
Ordering code ANSI: B1003.2
Gross weight – grams: 6.5
Cutting diameter – millimeter (DC): 3.2 mm
Overall length – millimeter (OAL): 66 mm
Length chip flute – millimeter (LCF): 33 mm
Distance Reference Point PK – millimeters (LDC): 8 mm
Flute count (NOF): 6
Clamping width – millimeter (WSC): 2.4 mm
Connection diameter – millimeter (DCON MS): 3.2 mm
ISO: B1003.2

Brand

DORMER
