DORMER B1003/32 HSS Reamers

Product Code: B1003/32

$88.95$80.86 Ex. GST

Product Code: B1003/32 SKU B1003/32 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

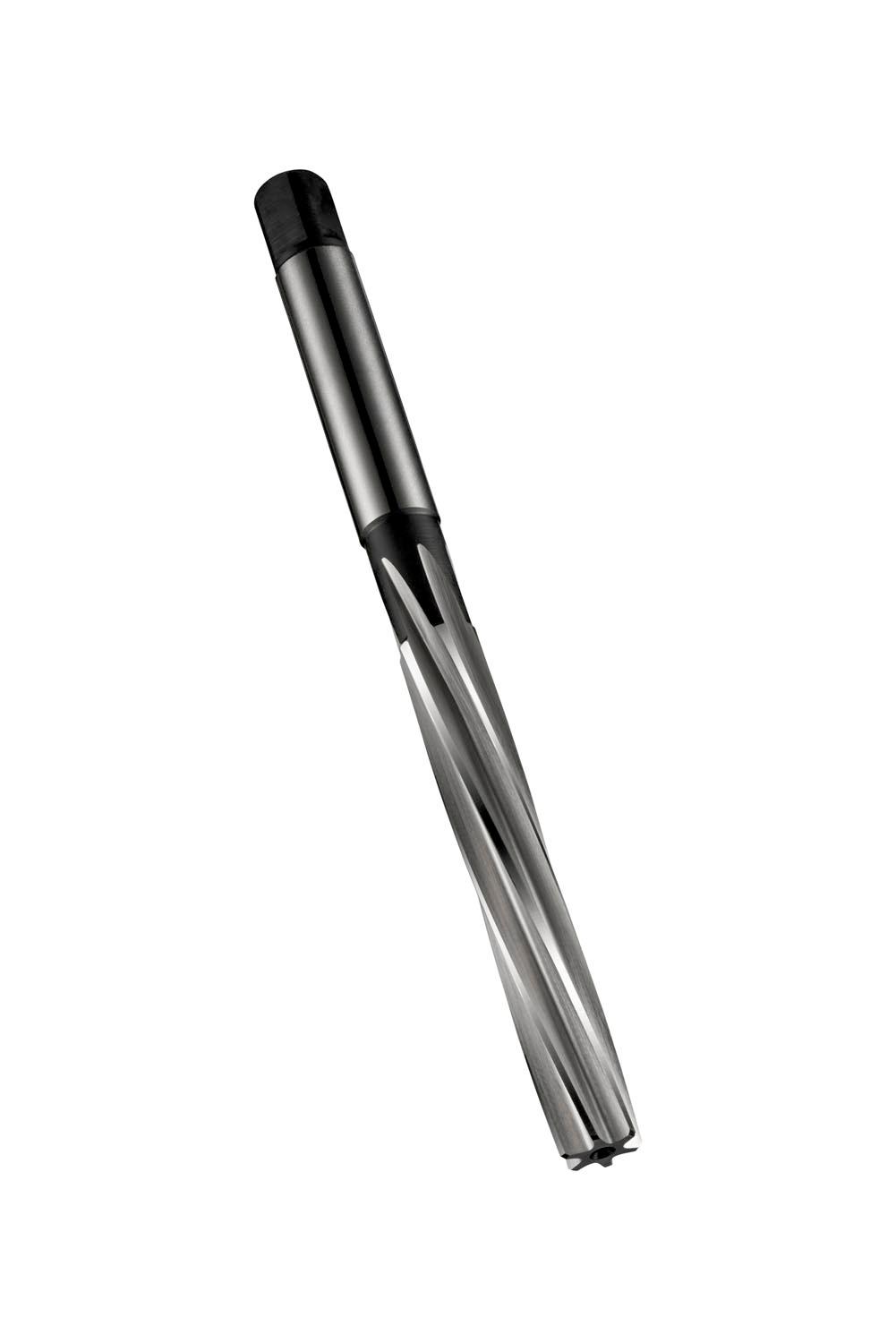

Hand reamer with left hand slow spiral flutes and a square drive, diameter 2.38mm (3/32″) with an overall length of 54mm, a flute length of 27mm and 7mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0864 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760179611
Product number (SAP): 86012483
Ordering code ANSI: B1003/32
Gross weight – grams: 4.6
Cutting diameter – fractional inch (DC): 3/32
Cutting diameter – millimeter (DC): 2.38 mm
Overall length – millimeter (OAL): 54 mm
Length chip flute – millimeter (LCF): 27 mm
Distance Reference Point PK – millimeters (LDC): 7 mm
Flute count (NOF): 4
Clamping width – millimeter (WSC): 1.8 mm
Connection diameter – millimeter (DCON MS): 2.38 mm
ISO: B1003/32

Brand

DORMER
