DORMER B1003/4 HSS Reamers

Product Code: B1003/4

$189.21$172.01 Ex. GST

Product Code: B1003/4 SKU B1003/4 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

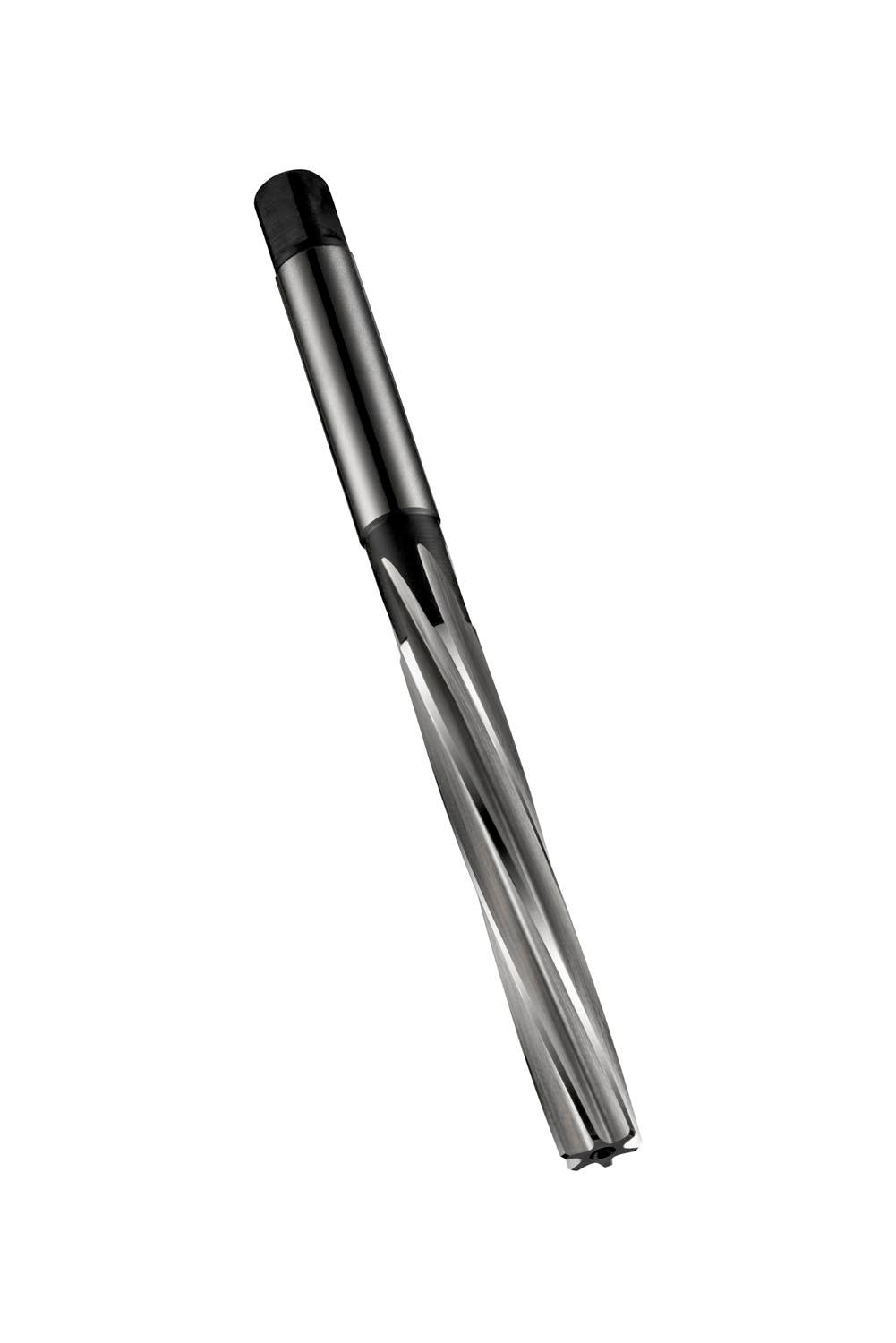

Hand reamer with left hand slow spiral flutes and a square drive, diameter 19.05mm (3/4″) with an overall length of 188mm, a flute length of 93mm and 25mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1837 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760179901
Product number (SAP): 86012484
Ordering code ANSI: B1003/4
Gross weight – grams: 347.6
Cutting diameter – fractional inch (DC): 3/4
Cutting diameter – millimeter (DC): 19.05 mm
Overall length – millimeter (OAL): 188 mm
Length chip flute – millimeter (LCF): 93 mm
Distance Reference Point PK – millimeters (LDC): 25 mm
Flute count (NOF): 8
Clamping width – millimeter (WSC): 14.5 mm
Connection diameter – millimeter (DCON MS): 19.05 mm
ISO: B1003/4

Brand

DORMER
