DORMER B10030.0 HSS Reamers

Product Code: B10030.0

$513.25$466.59 Ex. GST

Product Code: B10030.0 SKU B10030.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

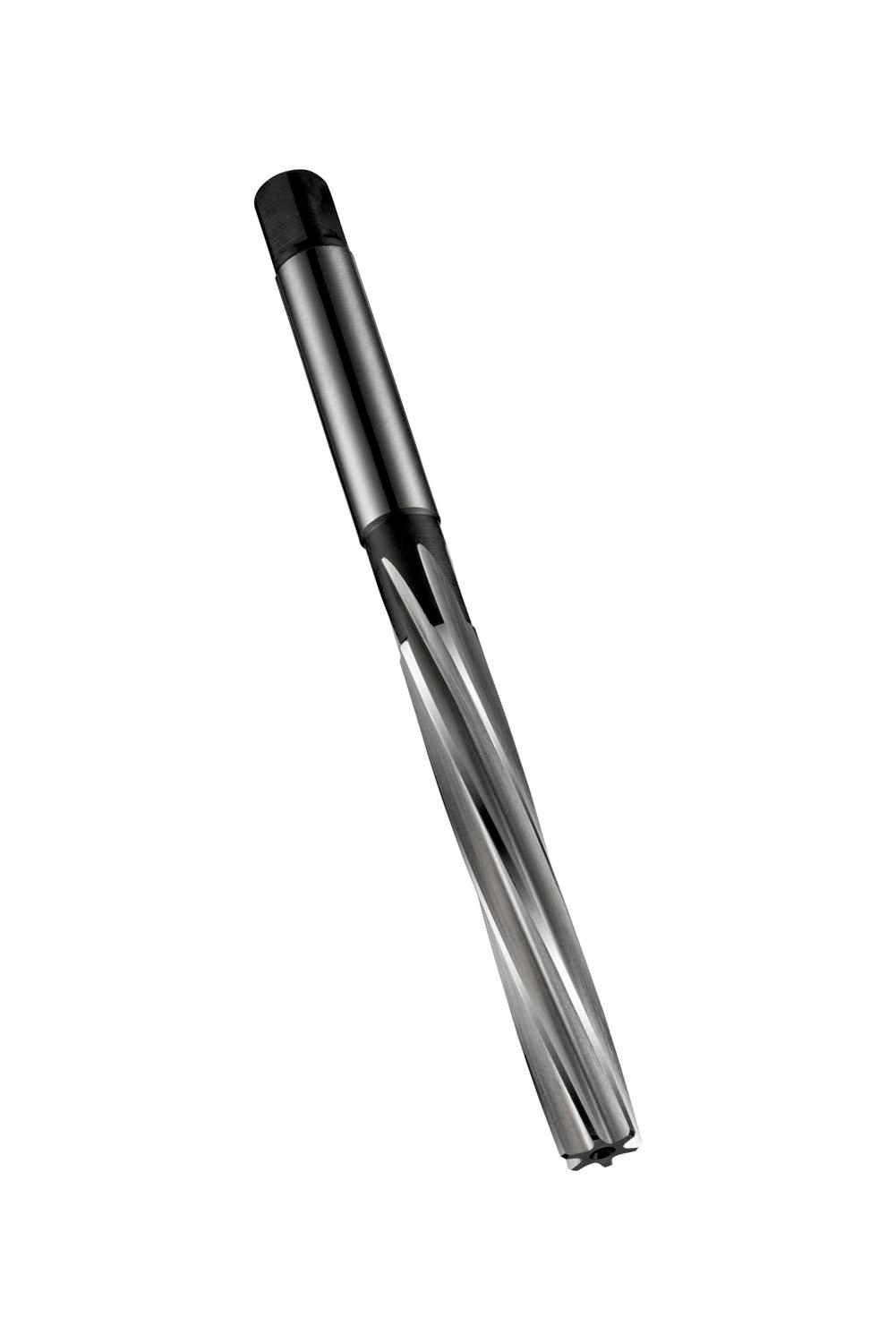

Hand reamer with left hand slow spiral flutes and a square drive, diameter 30.00mm with an overall length of 247mm, a flute length of 124mm and 31mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.4983 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760048740
Product number (SAP): 86012486
Ordering code ANSI: B10030.0
Gross weight – grams: 1166
Cutting diameter – millimeter (DC): 30 mm
Overall length – millimeter (OAL): 247 mm
Length chip flute – millimeter (LCF): 124 mm
Distance Reference Point PK – millimeters (LDC): 31 mm
Flute count (NOF): 10
Clamping width – millimeter (WSC): 24 mm
Connection diameter – millimeter (DCON MS): 30 mm
ISO: B10030.0

Brand

DORMER
