DORMER B1004.0 HSS Reamers

Product Code: B1004.0

$59.49$54.08 Ex. GST

Product Code: B1004.0 SKU B1004.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

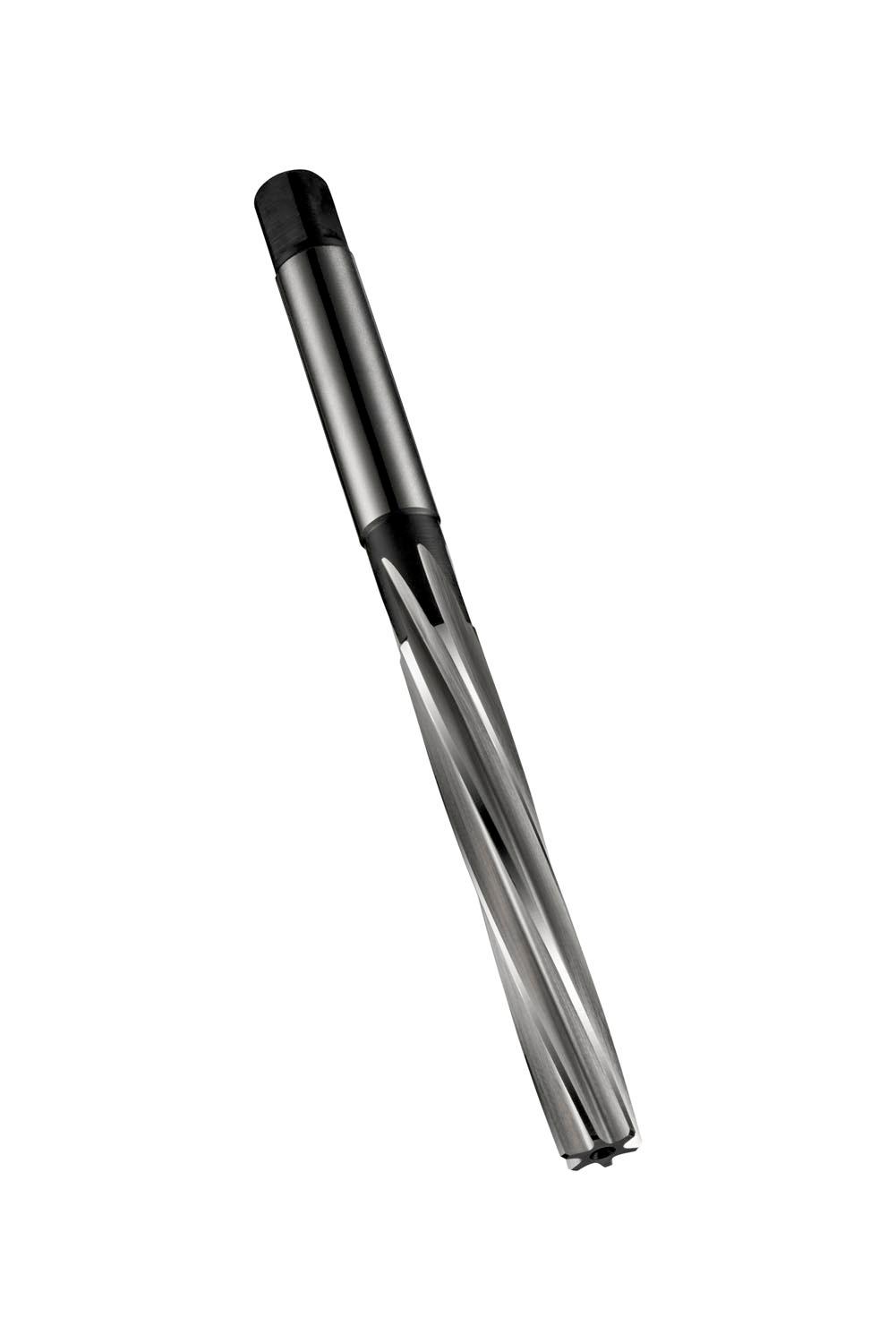

Hand reamer with left hand slow spiral flutes and a square drive, diameter 4.00mm with an overall length of 76mm, a flute length of 38mm and 10mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0578 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760048801
Product number (SAP): 86012496
Ordering code ANSI: B1004.0
Gross weight – grams: 9
Cutting diameter – millimeter (DC): 4 mm
Overall length – millimeter (OAL): 76 mm
Length chip flute – millimeter (LCF): 38 mm
Distance Reference Point PK – millimeters (LDC): 10 mm
Flute count (NOF): 6
Clamping width – millimeter (WSC): 3 mm
Connection diameter – millimeter (DCON MS): 4 mm
ISO: B1004.0

Brand

DORMER
