DORMER B1005.0 HSS Reamers

Product Code: B1005.0

$60.05$54.59 Ex. GST

Product Code: B1005.0 SKU B1005.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

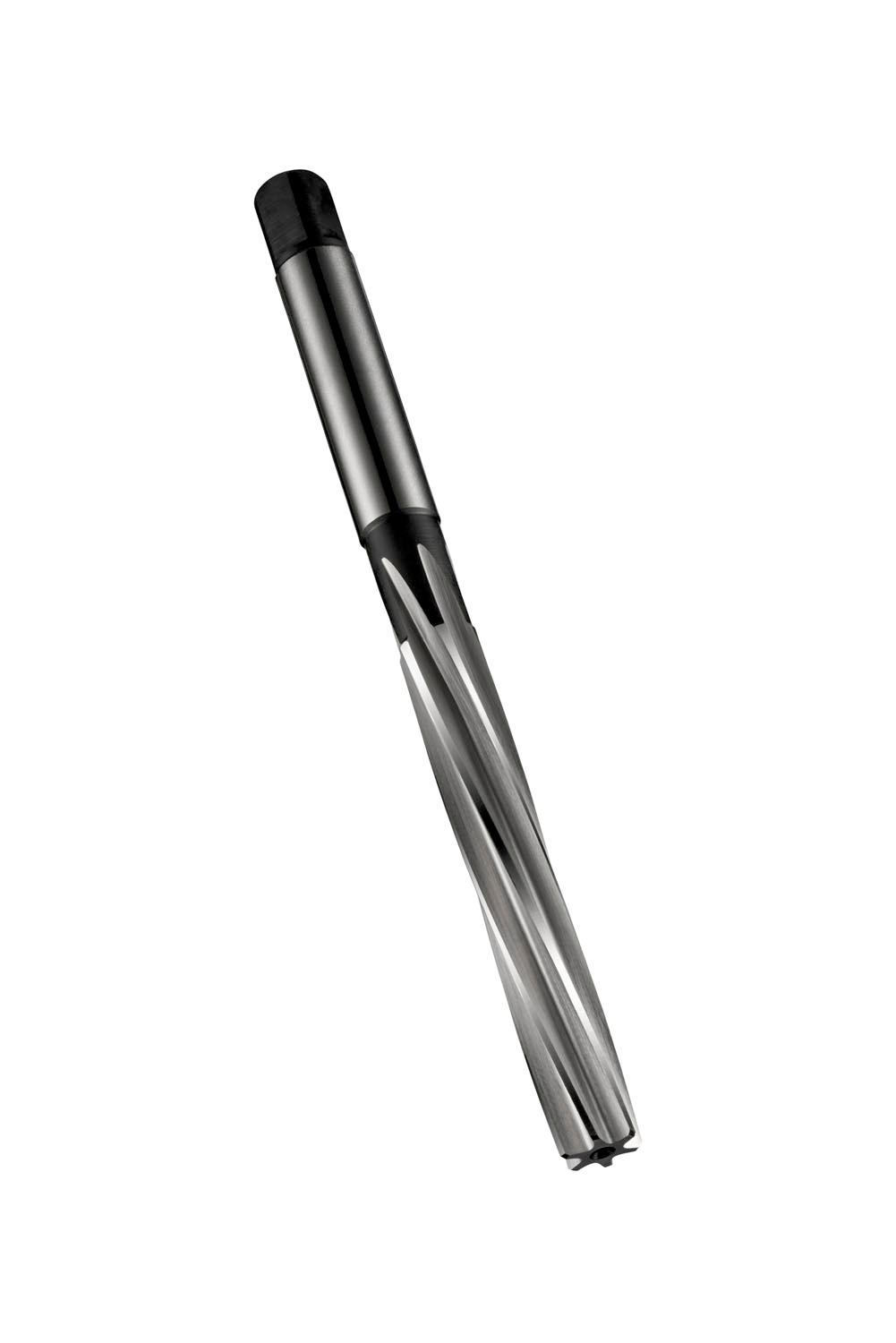

Hand reamer with left hand slow spiral flutes and a square drive, diameter 5.00mm with an overall length of 87mm, a flute length of 44mm and 11mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0583 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760048887
Product number (SAP): 86012500
Ordering code ANSI: B1005.0
Gross weight – grams: 15.9
Cutting diameter – millimeter (DC): 5 mm
Overall length – millimeter (OAL): 87 mm
Length chip flute – millimeter (LCF): 44 mm
Distance Reference Point PK – millimeters (LDC): 11 mm
Flute count (NOF): 6
Clamping width – millimeter (WSC): 3.8 mm
Connection diameter – millimeter (DCON MS): 5 mm
ISO: B1005.0

Brand

DORMER
