DORMER B1005/16 HSS Reamers

Product Code: B1005/16

$67.42$61.29 Ex. GST

Product Code: B1005/16 SKU B1005/16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

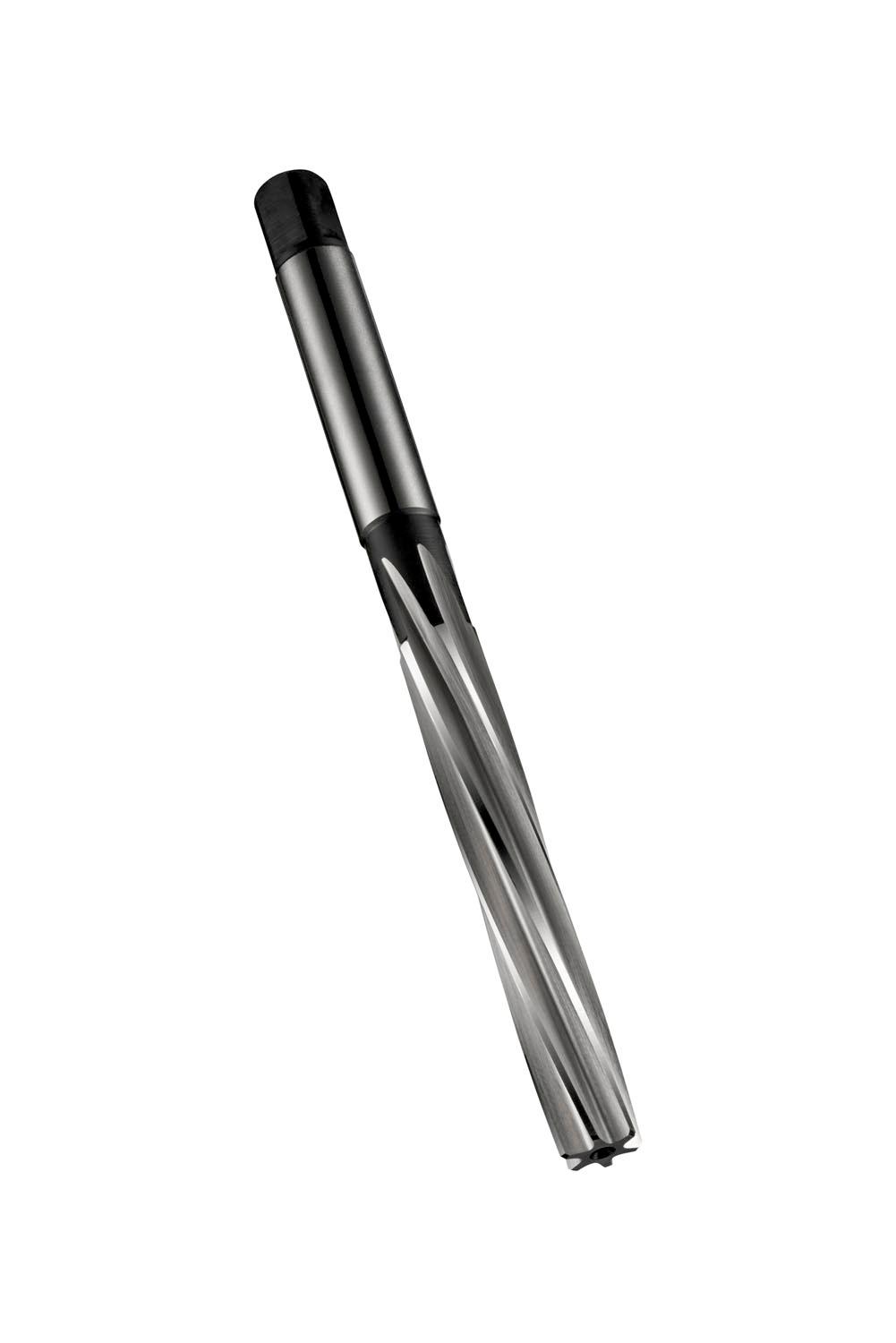

Hand reamer with left hand slow spiral flutes and a square drive, diameter 7.94mm (5/16″) with an overall length of 115mm, a flute length of 58mm and 15mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0655 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760179758
Product number (SAP): 86012502
Ordering code ANSI: B1005/16
Gross weight – grams: 37.3
Cutting diameter – fractional inch (DC): 5/16
Cutting diameter – millimeter (DC): 7.94 mm
Overall length – millimeter (OAL): 115 mm
Length chip flute – millimeter (LCF): 58 mm
Distance Reference Point PK – millimeters (LDC): 15 mm
Flute count (NOF): 6
Clamping width – millimeter (WSC): 6.2 mm
Connection diameter – millimeter (DCON MS): 7.94 mm
ISO: B1005/16

Brand

DORMER
