DORMER B1008.0 HSS Reamers

Description

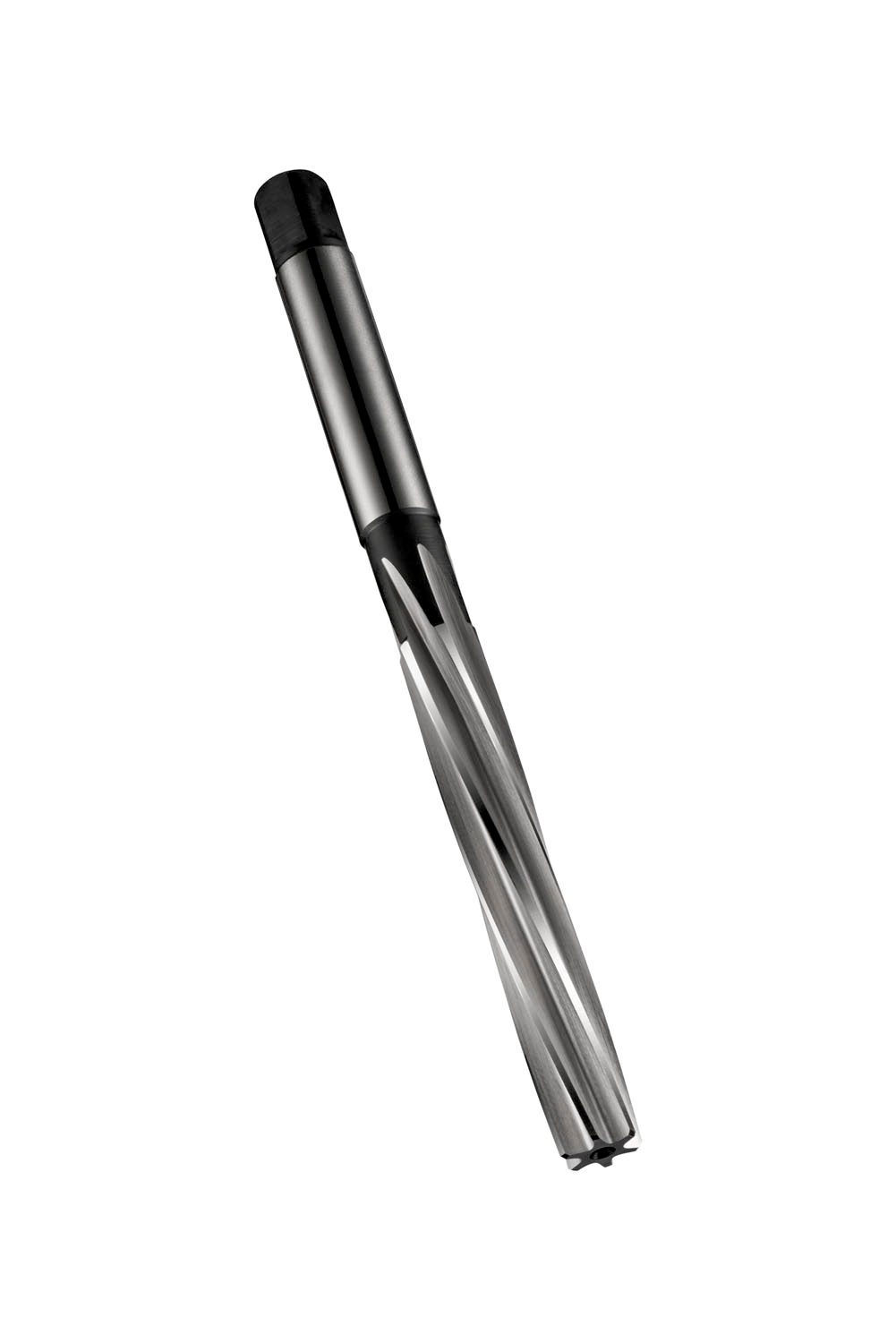

Hand reamer with left hand slow spiral flutes and a square drive, diameter 8.00mm with an overall length of 115mm, a flute length of 58mm and 15mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight	0.0677 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 7320760048931 Product number (SAP): 86012515 Ordering code ANSI: B1008.0 Gross weight – grams: 37.8 Cutting diameter – millimeter (DC): 8 mm Overall length – millimeter (OAL): 115 mm Length chip flute – millimeter (LCF): 58 mm Distance Reference Point PK – millimeters (LDC): 15 mm Flute count (NOF): 6 Clamping width – millimeter (WSC): 6.2 mm Connection diameter – millimeter (DCON MS): 8 mm ISO: B1008.0

Need Technical Advice?

Description

Additional information

Brand

DORMER
