DORMER B1008.5 HSS Reamers

Product Code: B1008.5

$88.37$80.34 Ex. GST

Product Code: B1008.5 SKU B1008.5 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

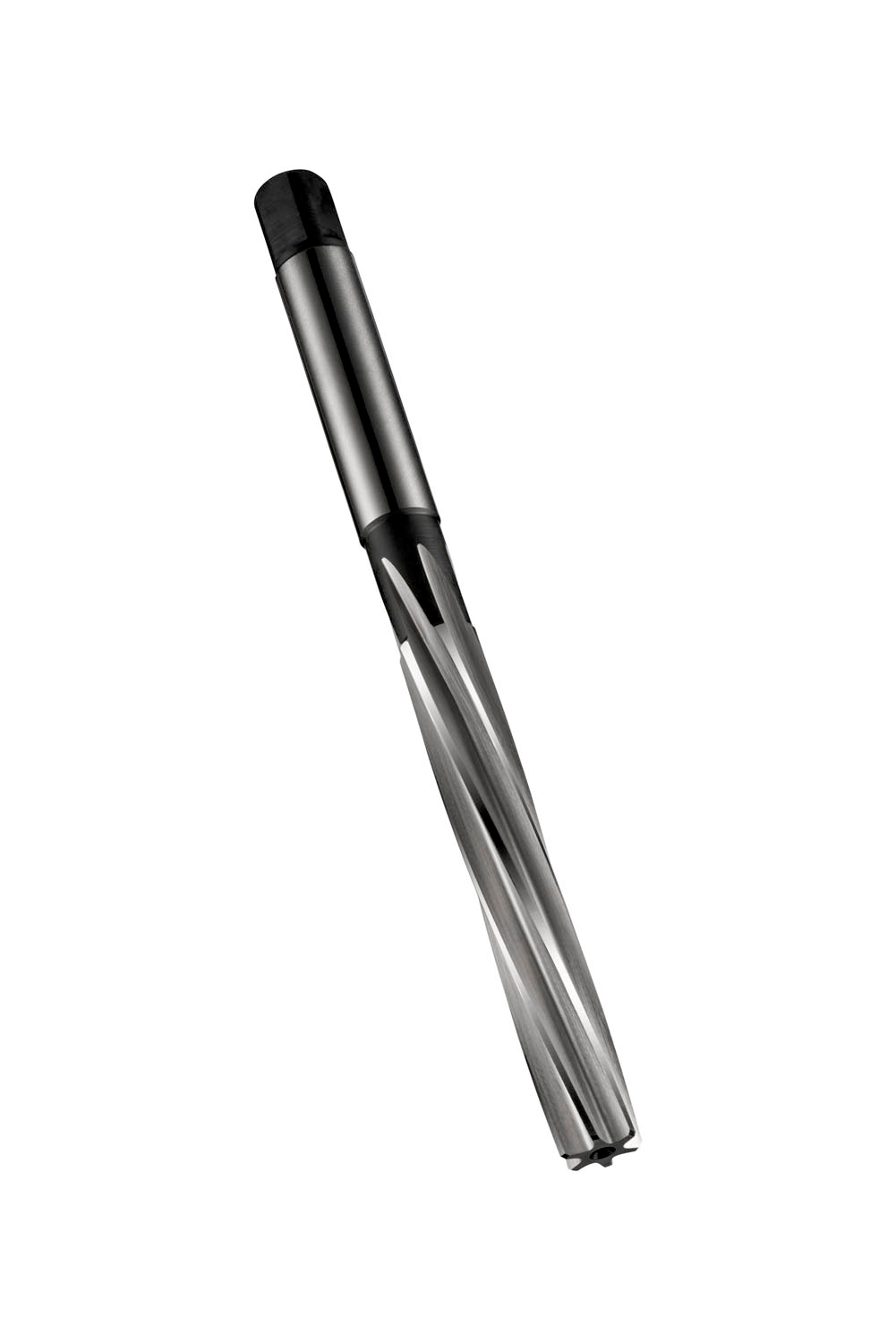

Hand reamer with left hand slow spiral flutes and a square drive, diameter 8.50mm with an overall length of 115mm, a flute length of 58mm and 15mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0858 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760140338
Product number (SAP): 86012516
Ordering code ANSI: B1008.5
Gross weight – grams: 60
Cutting diameter – millimeter (DC): 8.5 mm
Overall length – millimeter (OAL): 115 mm
Length chip flute – millimeter (LCF): 58 mm
Distance Reference Point PK – millimeters (LDC): 15 mm
Flute count (NOF): 6
Clamping width – millimeter (WSC): 7 mm
Connection diameter – millimeter (DCON MS): 8.5 mm
ISO: B1008.5

Brand

DORMER
