DORMER B1009.0 HSS Reamers

Product Code: B1009.0

$96.88$88.07 Ex. GST

Product Code: B1009.0 SKU B1009.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

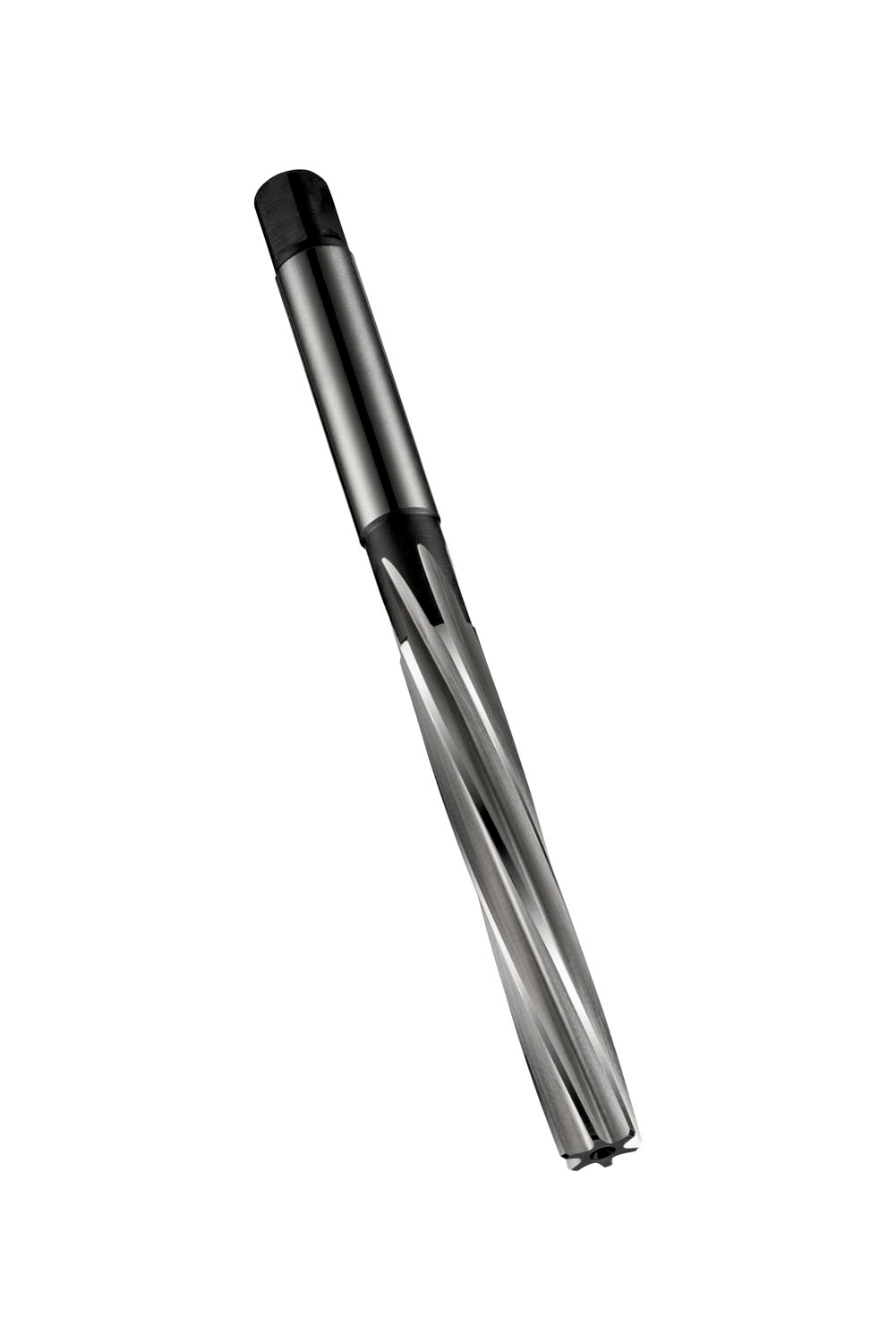

Hand reamer with left hand slow spiral flutes and a square drive, diameter 9.00mm with an overall length of 124mm, a flute length of 62mm and 16mm long taper lead, according to DIN 206 standard for reaming precise holes within H7 tolerance, HSS with bright-steam tempered finish for machining free machining and plain carbon steel, grey and ductile cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0941 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760048948
Product number (SAP): 86012517
Ordering code ANSI: B1009.0
Gross weight – grams: 50.1
Cutting diameter – millimeter (DC): 9 mm
Overall length – millimeter (OAL): 124 mm
Length chip flute – millimeter (LCF): 62 mm
Distance Reference Point PK – millimeters (LDC): 16 mm
Flute count (NOF): 6
Clamping width – millimeter (WSC): 7 mm
Connection diameter – millimeter (DCON MS): 9 mm
ISO: B1009.0

Brand

DORMER
