DORMER B1011/2 HSS Reamers

Product Code: B1011/2

$106.50$96.82 Ex. GST

Product Code: B1011/2 SKU B1011/2 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

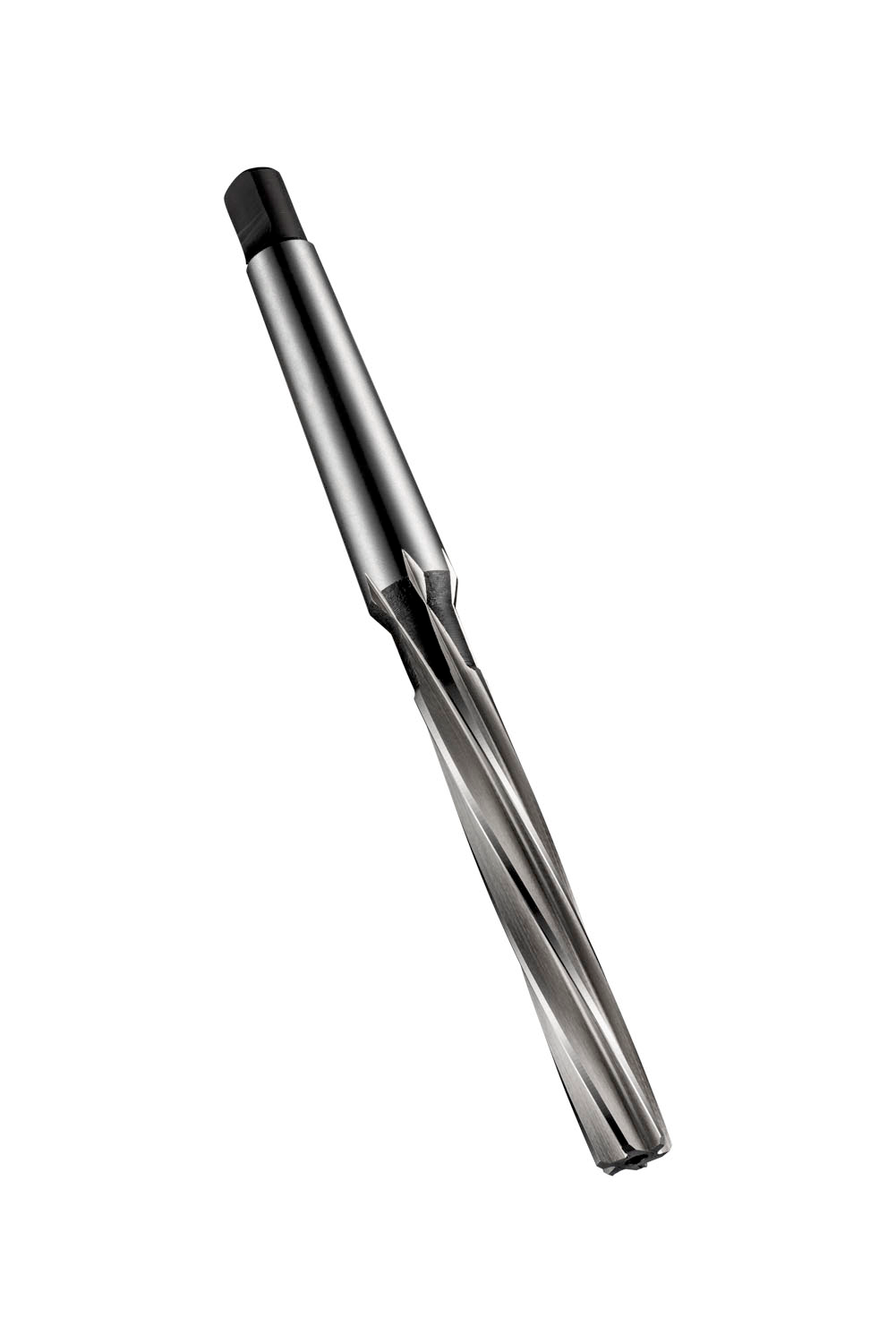

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 12.70mm (1/2″) with an overall length of 156mm and a flute length of 76mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1034 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760181263
Product number (SAP): 86012530
Ordering code ANSI: B1011/2
Gross weight – grams: 110
Cutting diameter – fractional inch (DC): 1/2
Cutting diameter – millimeter (DC): 12.7 mm
Overall length – millimeter (OAL): 156 mm
Length chip flute – millimeter (LCF): 76 mm
Flute count (NOF): 6
Connection size code machine side (CZC MS): MK 1
ISO: B1011/2

Brand

DORMER
