DORMER B1011 HSS Reamers

Product Code: B1011

$352.36$320.33 Ex. GST

Product Code: B1011 SKU B1011 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

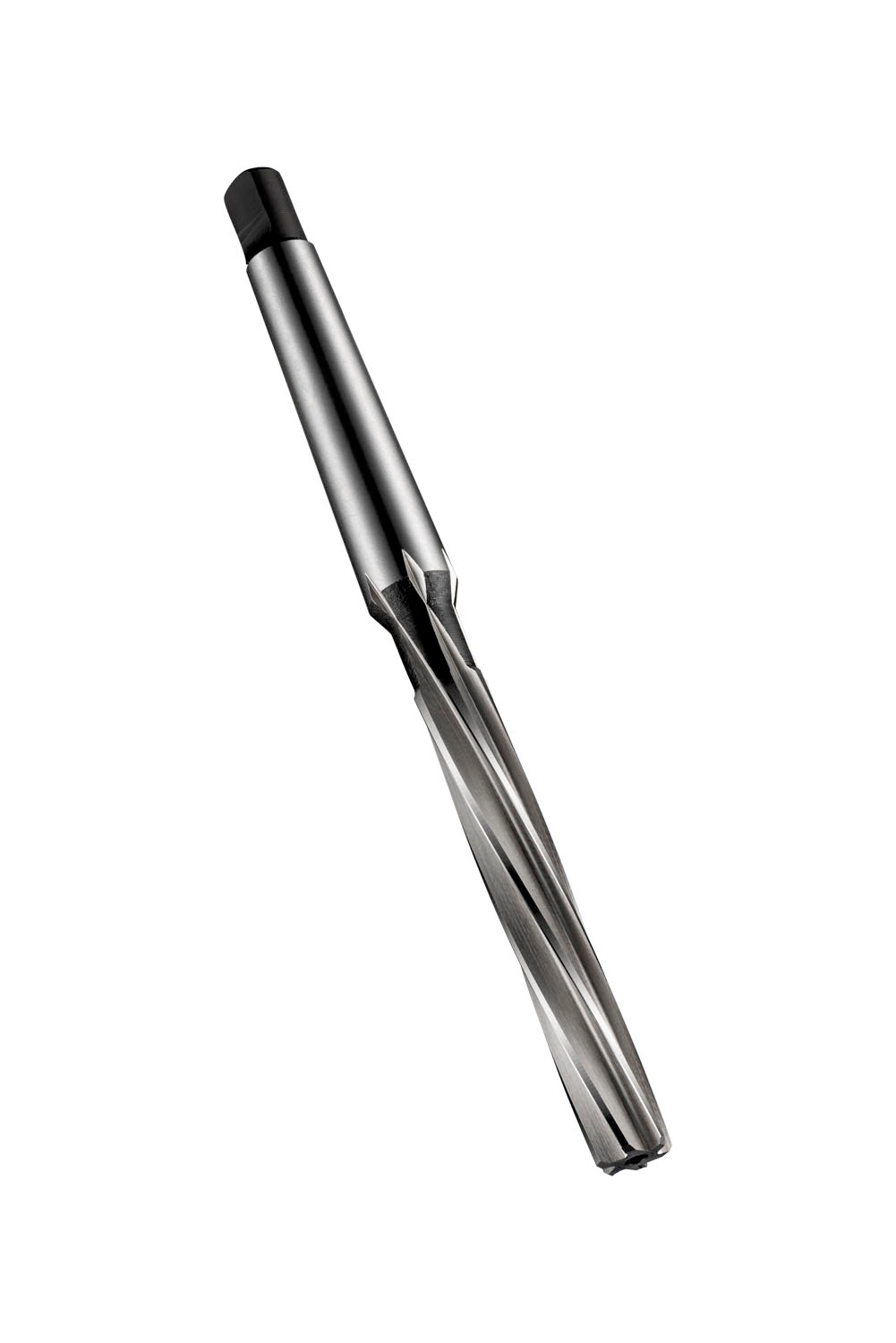

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 25.40mm (1″) with an overall length of 242mm and a flute length of 115mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.3421 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760181423
Product number (SAP): 86012522
Ordering code ANSI: B1011
Gross weight – grams: 696
Cutting diameter – fractional inch (DC): 1"
Cutting diameter – millimeter (DC): 25.4 mm
Overall length – millimeter (OAL): 242 mm
Length chip flute – millimeter (LCF): 115 mm
Flute count (NOF): 10
Connection size code machine side (CZC MS): MK 3
ISO: B1011

Brand

DORMER
