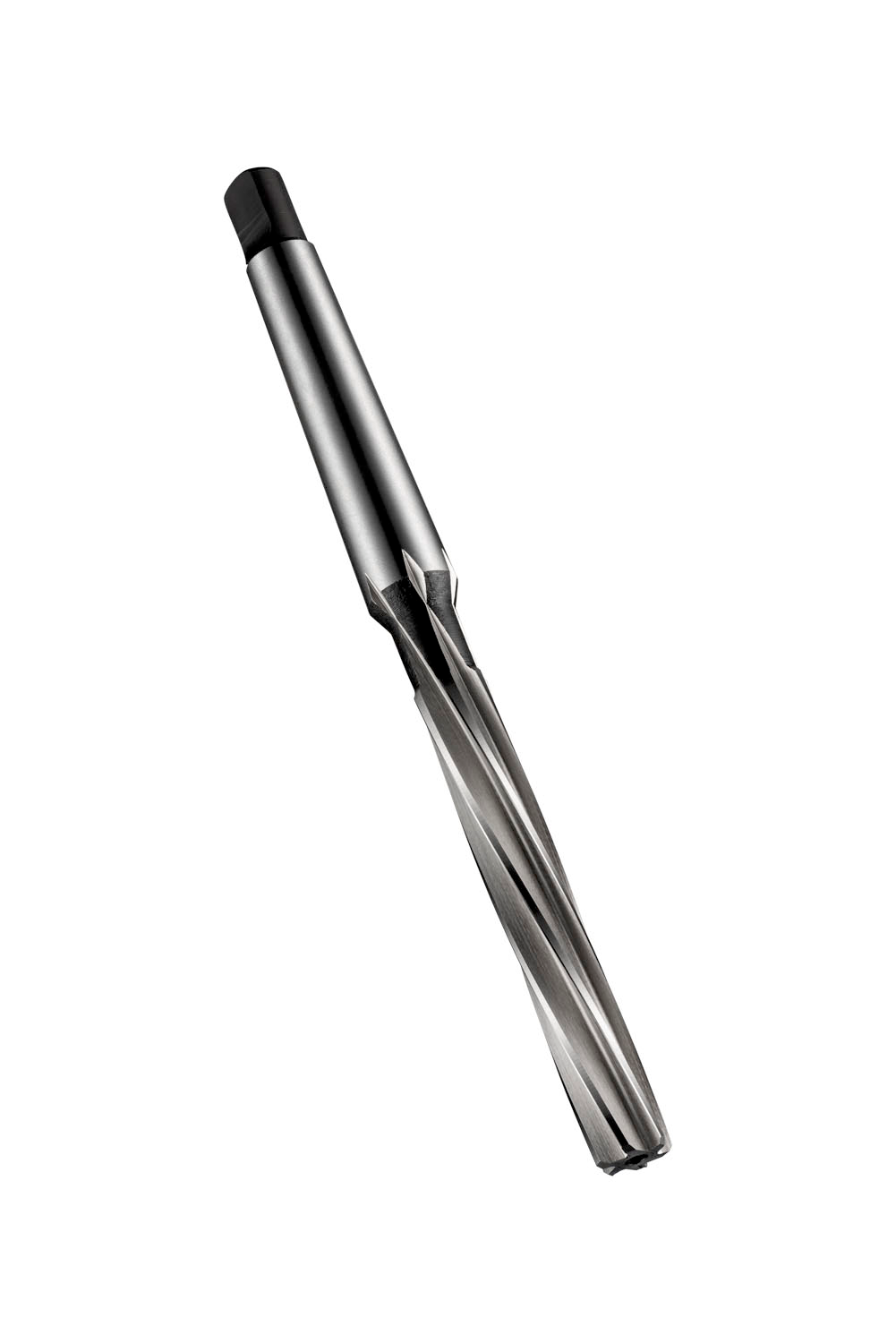

DORMER B10123.0 HSS Reamers

Product Code: B10123.0

$259.46$235.87 Ex. GST

Product Code: B10123.0 SKU B10123.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 23.00mm with an overall length of 207mm and a flute length of 107mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.2519 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760181904
Product number (SAP): 86012562
Ordering code ANSI: B10123.0
Gross weight – grams: 432.7
Cutting diameter – millimeter (DC): 23 mm
Overall length – millimeter (OAL): 207 mm
Length chip flute – millimeter (LCF): 107 mm
Flute count (NOF): 8
Connection size code machine side (CZC MS): MK 2
ISO: B10123.0

Brand

DORMER
