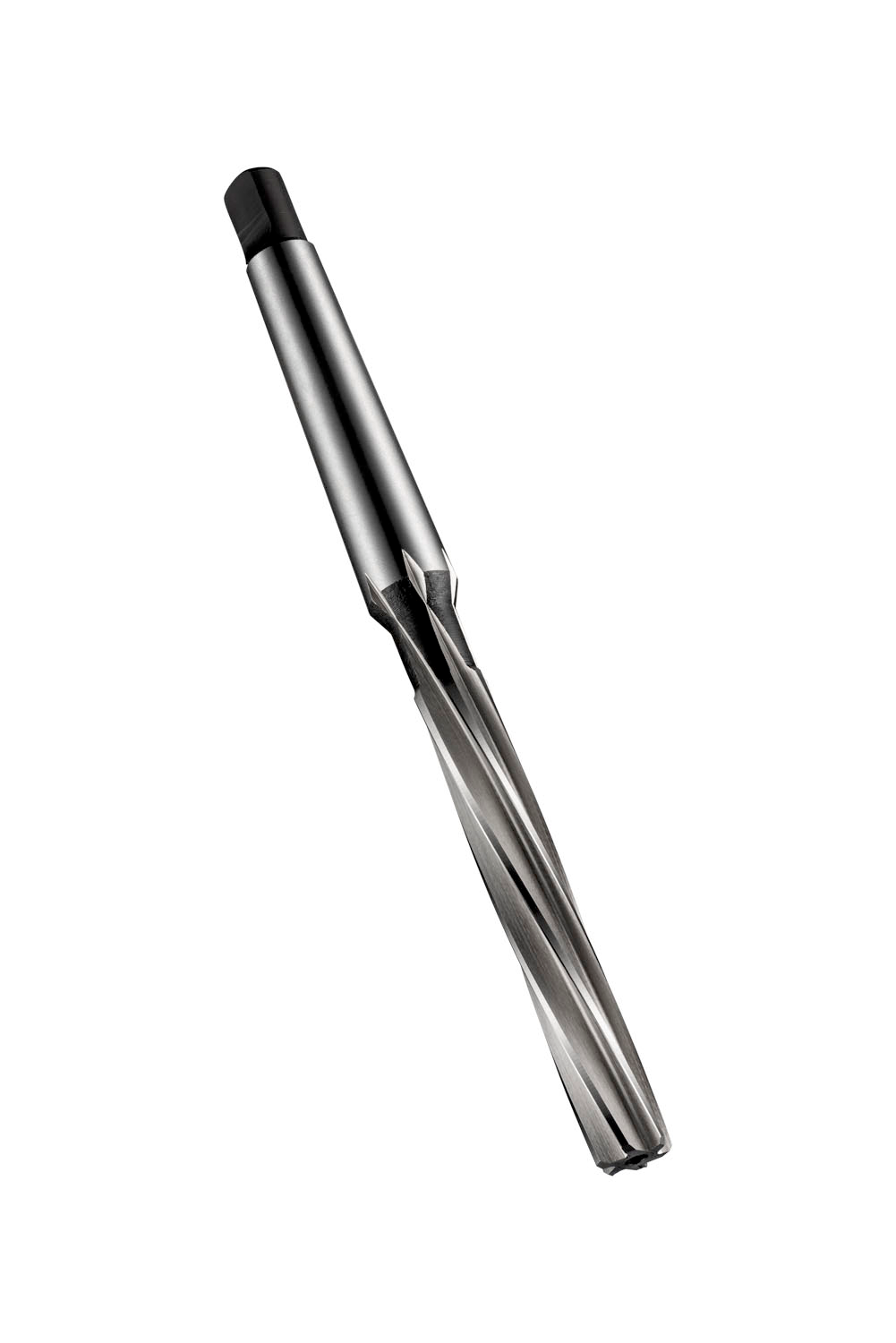

DORMER B10130.0 HSS Reamers

Product Code: B10130.0

$488.32$443.93 Ex. GST

Product Code: B10130.0 SKU B10130.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 30.00mm with an overall length of 251mm and a flute length of 124mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.4741 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760181973
Product number (SAP): 86012574
Ordering code ANSI: B10130.0
Gross weight – grams: 886.2
Cutting diameter – millimeter (DC): 30 mm
Overall length – millimeter (OAL): 251 mm
Length chip flute – millimeter (LCF): 124 mm
Flute count (NOF): 10
Connection size code machine side (CZC MS): MK 3
ISO: B10130.0

Brand

DORMER
