DORMER B10144.0 HSS Reamers

Product Code: B10144.0

$1,455.91$1,323.55 Ex. GST

Product Code: B10144.0 SKU B10144.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

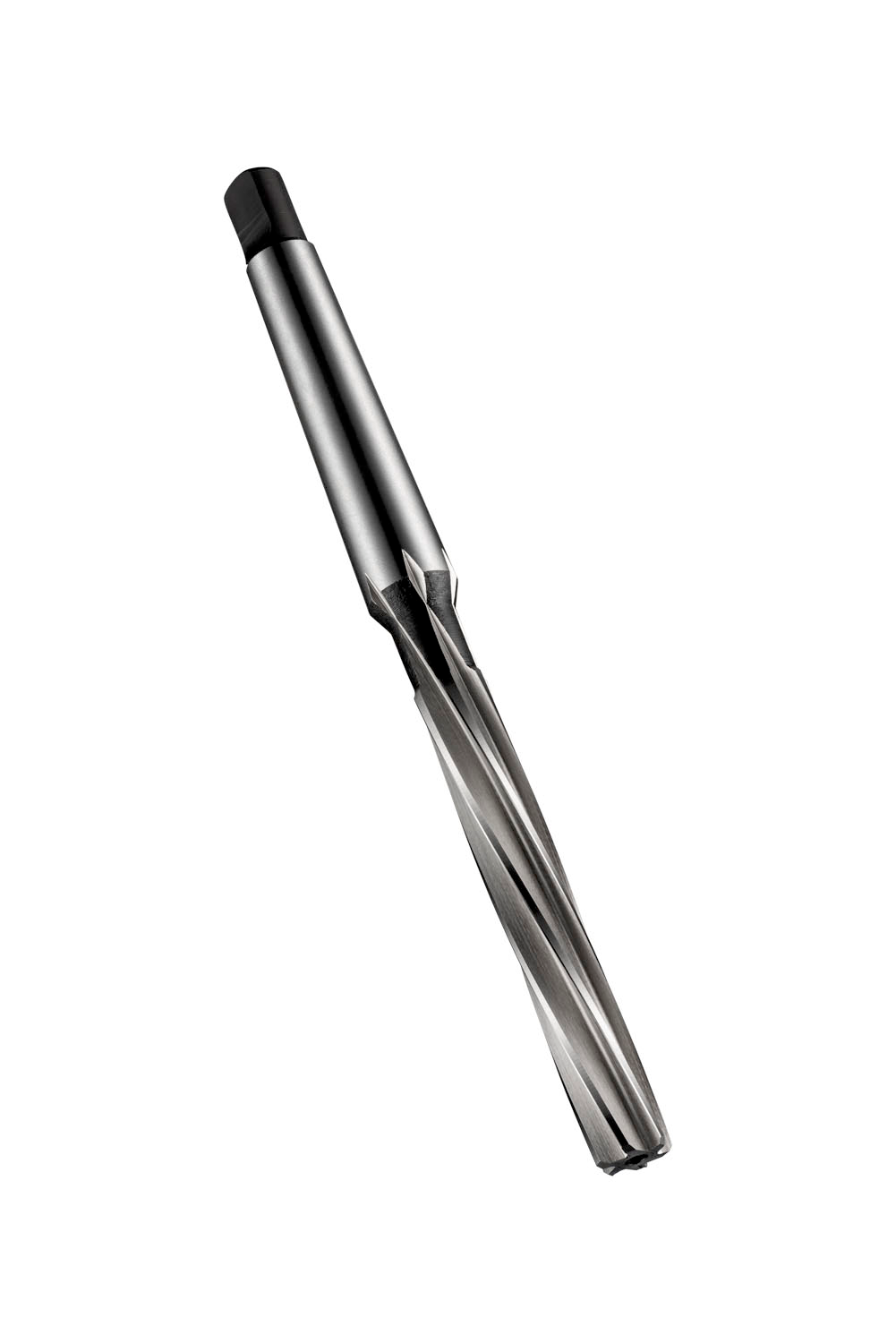

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 44.00mm with an overall length of 323mm and a flute length of 163mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 1.4135 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760182116
Product number (SAP): 86012590
Ordering code ANSI: B10144.0
Gross weight – grams: 2390
Cutting diameter – millimeter (DC): 44 mm
Overall length – millimeter (OAL): 323 mm
Length chip flute – millimeter (LCF): 163 mm
Flute count (NOF): 10
Connection size code machine side (CZC MS): MK 4
ISO: B10144.0

Brand

DORMER
