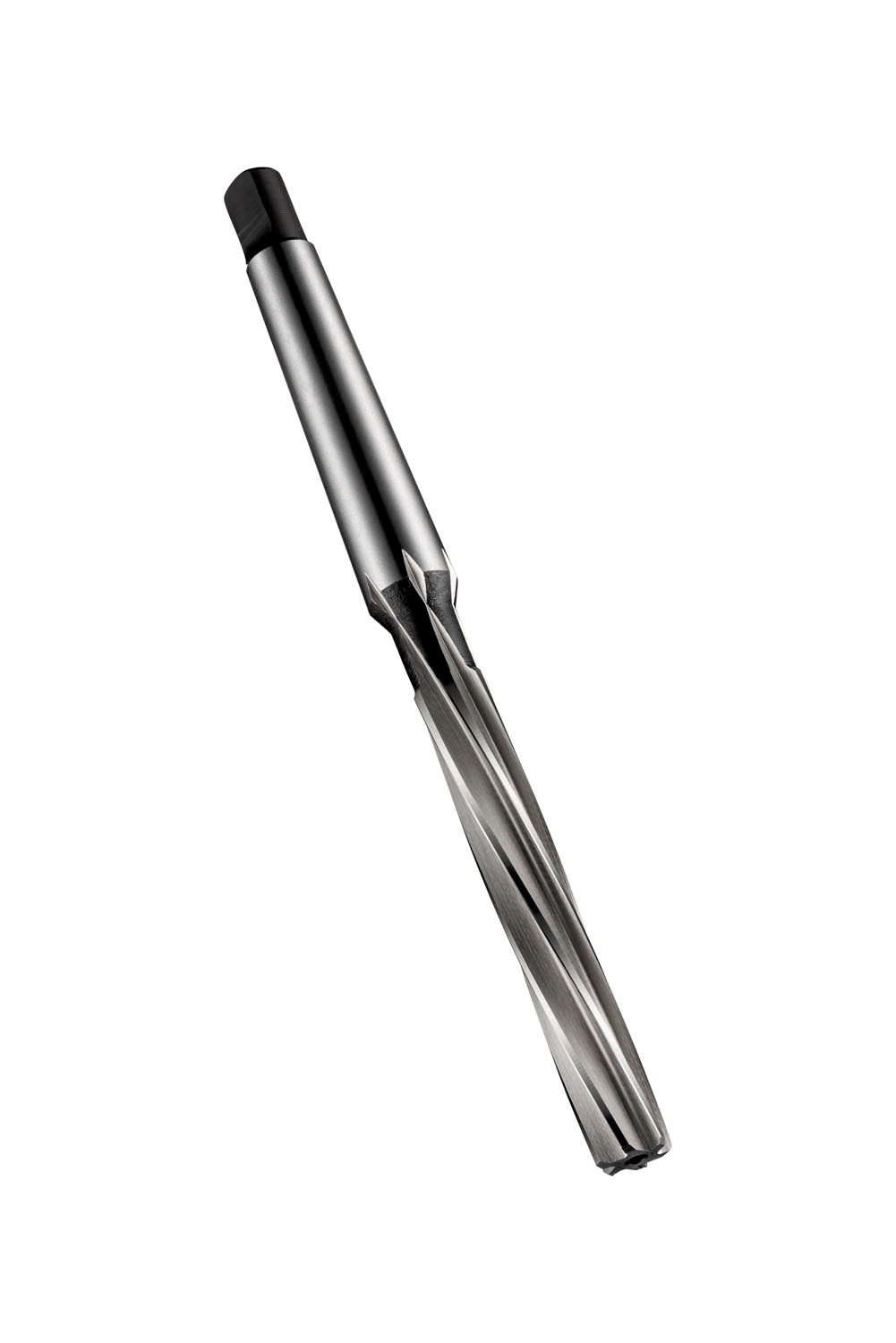

DORMER B1015.0 HSS Reamers

Product Code: B1015.0

$88.95$80.86 Ex. GST

Product Code: B1015.0 SKU B1015.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 5.00mm with an overall length of 124mm and a flute length of 44mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.0864 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760181607
Product number (SAP): 86012595
Ordering code ANSI: B1015.0
Gross weight – grams: 58.2
Cutting diameter – millimeter (DC): 5 mm
Overall length – millimeter (OAL): 124 mm
Length chip flute – millimeter (LCF): 44 mm
Flute count (NOF): 6
Connection size code machine side (CZC MS): MK 1
ISO: B1015.0

Brand

DORMER
