DORMER B10150.0 HSS Reamers

Product Code: B10150.0

$1,393.59$1,266.90 Ex. GST

Product Code: B10150.0 SKU B10150.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

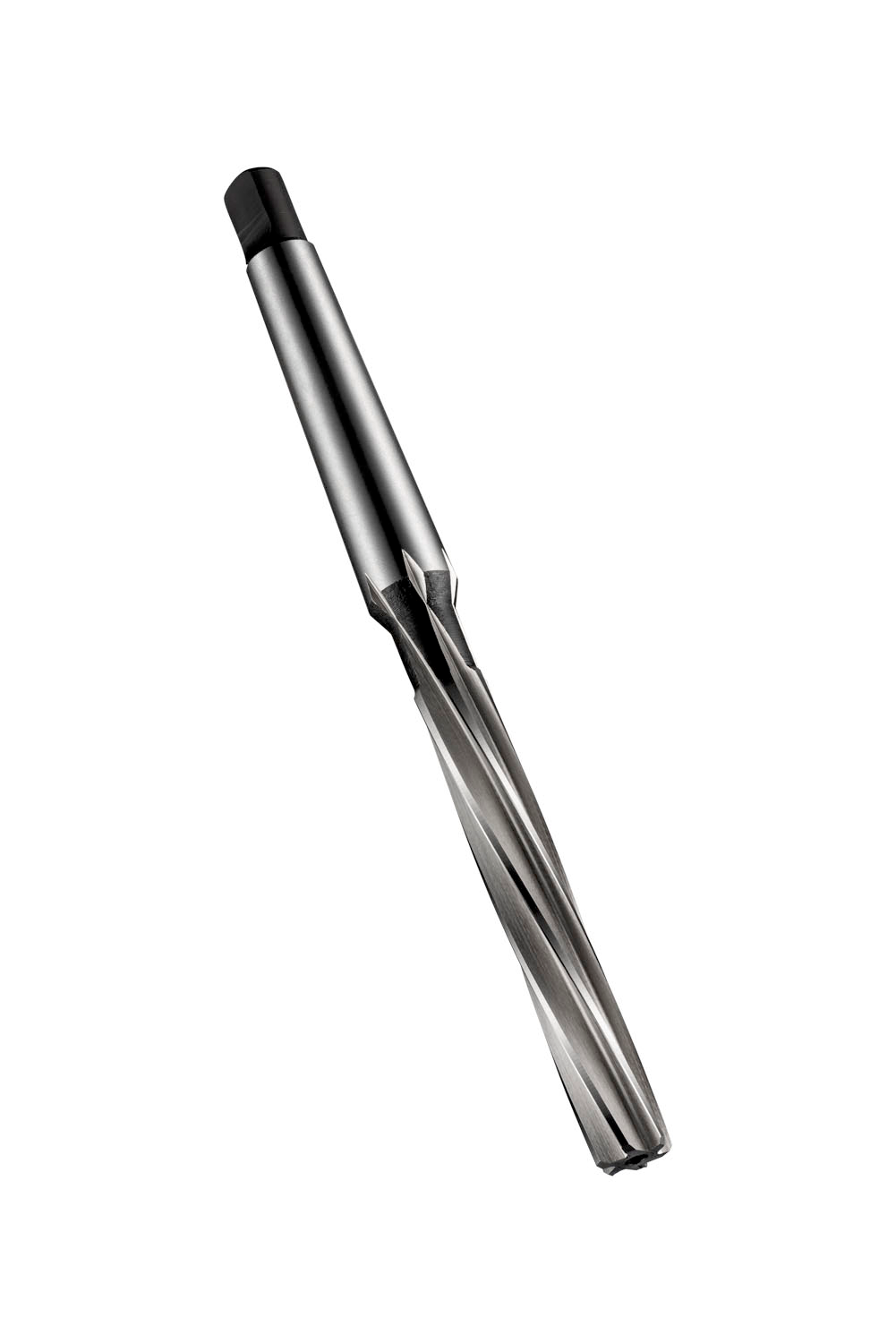

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 50.00mm with an overall length of 334mm and a flute length of 174mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 1.3530 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760182178
Product number (SAP): 86012600
Ordering code ANSI: B10150.0
Gross weight – grams: 3238.8
Cutting diameter – millimeter (DC): 50 mm
Overall length – millimeter (OAL): 334 mm
Length chip flute – millimeter (LCF): 174 mm
Flute count (NOF): 12
Connection size code machine side (CZC MS): MK 4
ISO: B10150.0

Brand

DORMER
