DORMER B1017/8 HSS Reamers

Product Code: B1017/8

$217.54$197.76 Ex. GST

Product Code: B1017/8 SKU B1017/8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 22.22mm (7/8″) with an overall length of 207mm and a flute length of 107mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.2112 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760181386
Product number (SAP): 86012607
Ordering code ANSI: B1017/8
Gross weight – grams: 396.1

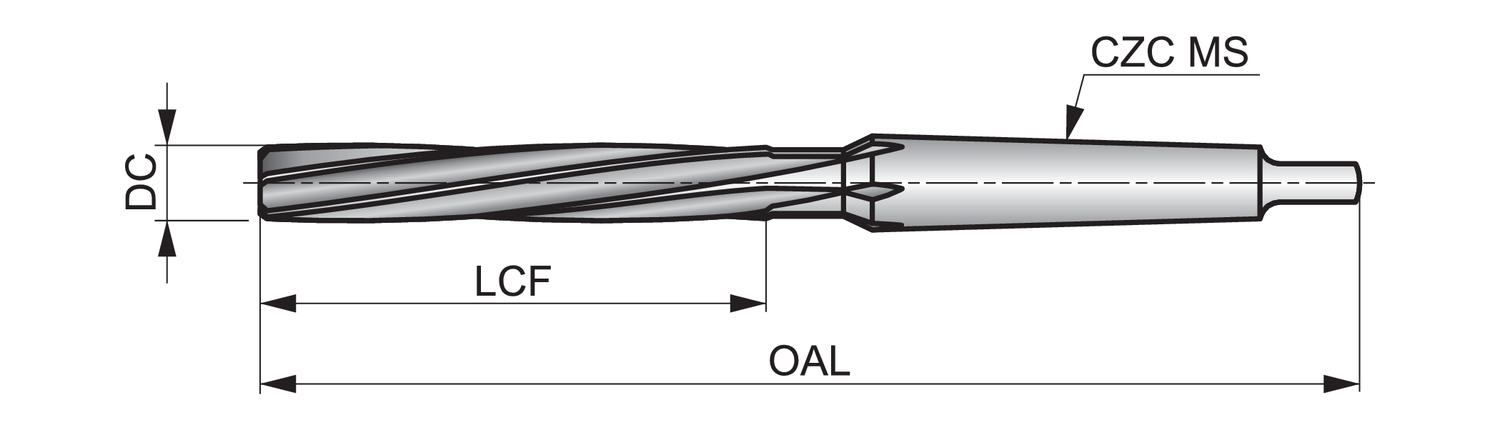

Cutting diameter – fractional inch (DC): 7/8
Cutting diameter – millimeter (DC): 22.22 mm
Overall length – millimeter (OAL): 207 mm
Length chip flute – millimeter (LCF): 107 mm
Flute count (NOF): 8
Connection size code machine side (CZC MS): MK 2
ISO: B1017/8

Brand

DORMER
