DORMER B1019/16 HSS Reamers

Product Code: B1019/16

$132.56$120.51 Ex. GST

Product Code: B1019/16 SKU B1019/16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

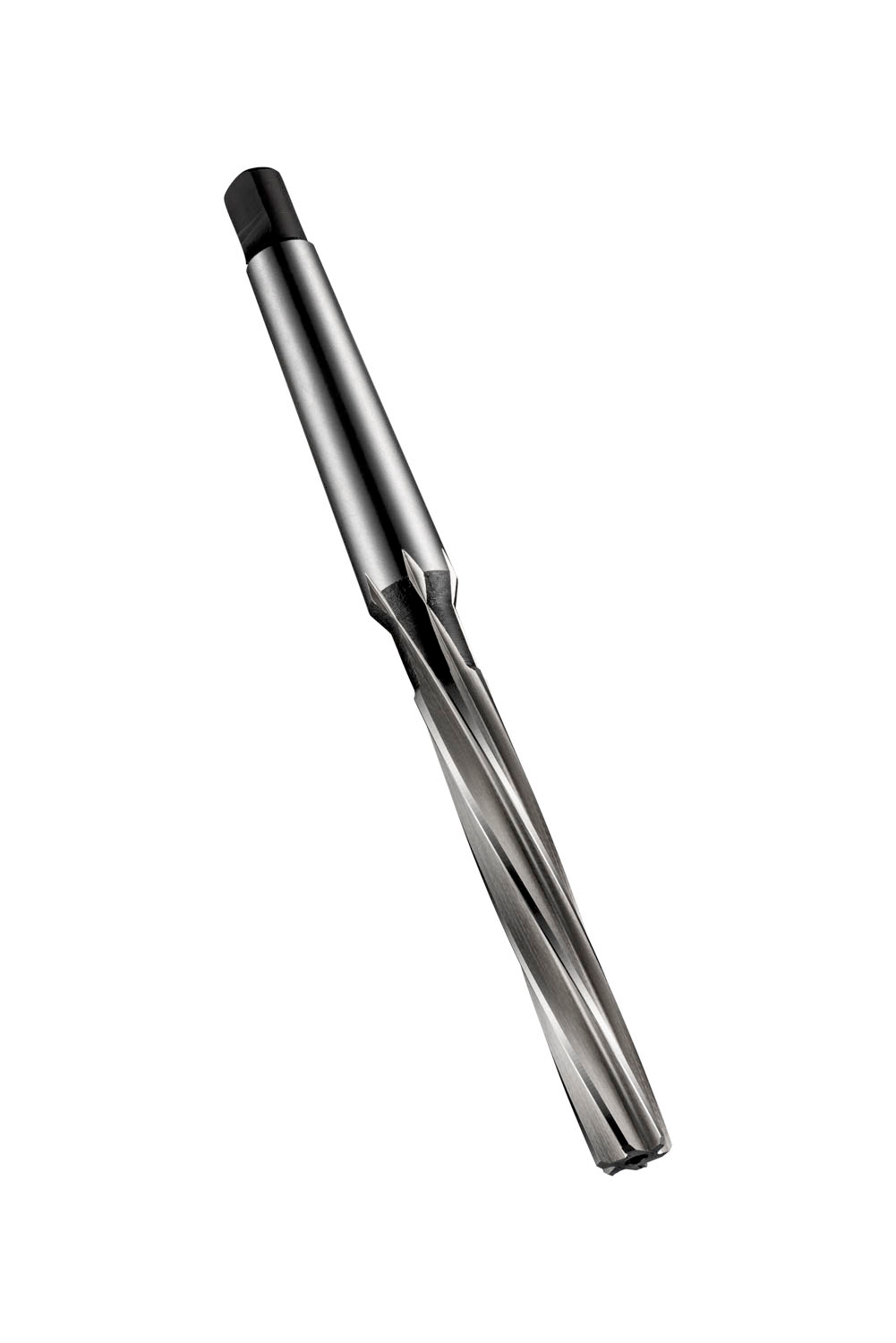

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 14.29mm (9/16″) with an overall length of 181mm and a flute length of 81mm, according to BS 328 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1287 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760181287
Product number (SAP): 86012612
Ordering code ANSI: B1019/16
Gross weight – grams: 221.8
Cutting diameter – fractional inch (DC): 9/16
Cutting diameter – millimeter (DC): 14.29 mm
Overall length – millimeter (OAL): 181 mm
Length chip flute – millimeter (LCF): 81 mm
Flute count (NOF): 8
Connection size code machine side (CZC MS): MK 2
ISO: B1019/16

Brand

DORMER
