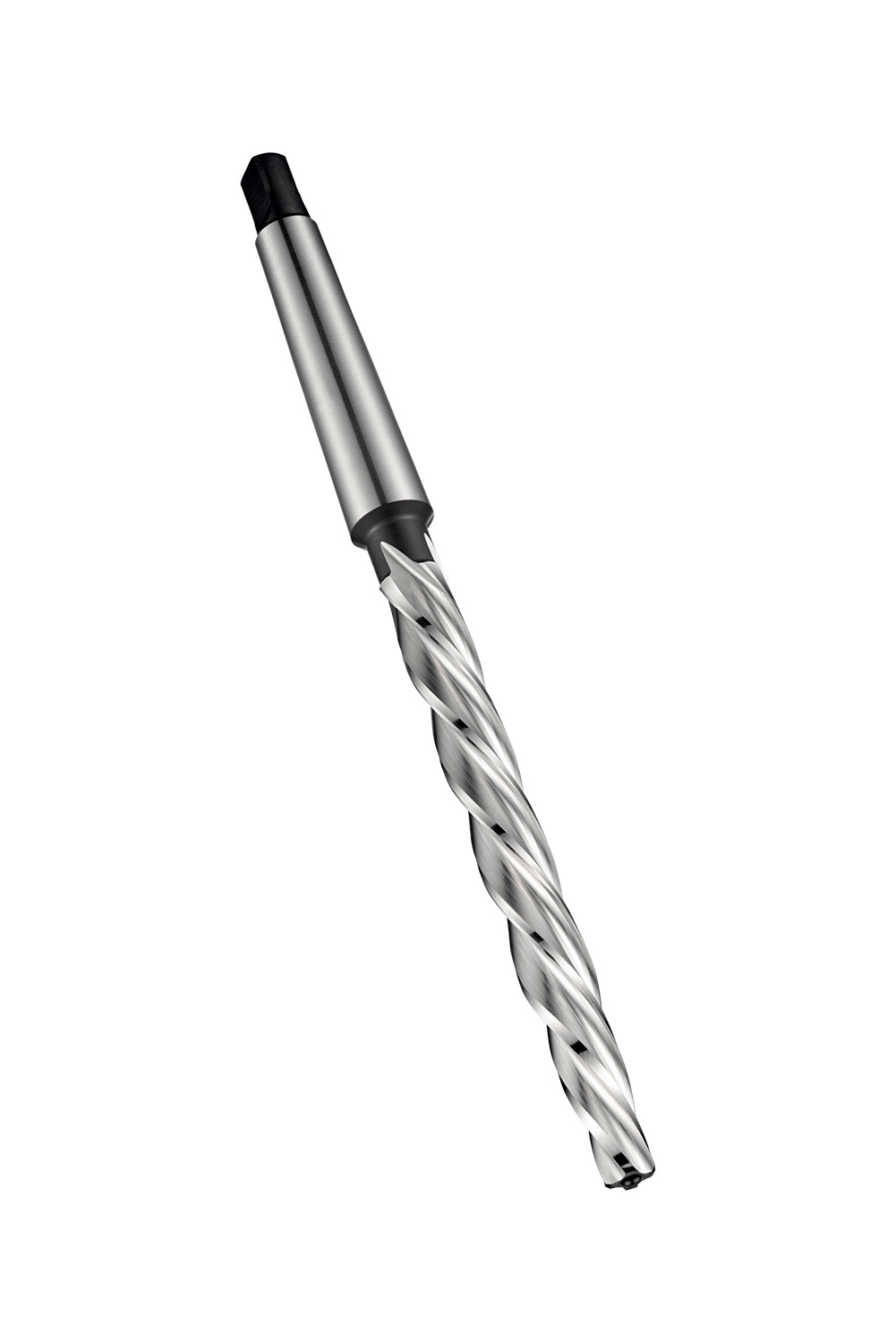

DORMER B12117.0 HSS Reamers

Product Code: B12117.0

$314.97$286.34 Ex. GST

Product Code: B12117.0 SKU B12117.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Bridge reamer with left hand fast spiral flutes and a Morse taper shank, nominal diameter 17.00mm with an overall length of 251mm, a flute length of 135mm and 51mm starting taper (1:10), according to DIN 311 standard for correcting misaligned holes in steel building structures within k11 tolerance, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.3058 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760049099
Product number (SAP): 86012621
Ordering code ANSI: B12117.0
Gross weight – grams: 460.2
Cutting diameter – millimeter (DC): 17 mm
Overall length – millimeter (OAL): 251 mm
Length chip flute – millimeter (LCF): 135 mm
Distance Reference Point PK – millimeters (LDC): 51 mm
Flute count (NOF): 4
Connection size code machine side (CZC MS): MK 3
ISO: B12117.0

Brand

DORMER
