DORMER B12121.0 HSS Reamers

Product Code: B12121.0

$419.21$381.10 Ex. GST

Product Code: B12121.0 SKU B12121.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

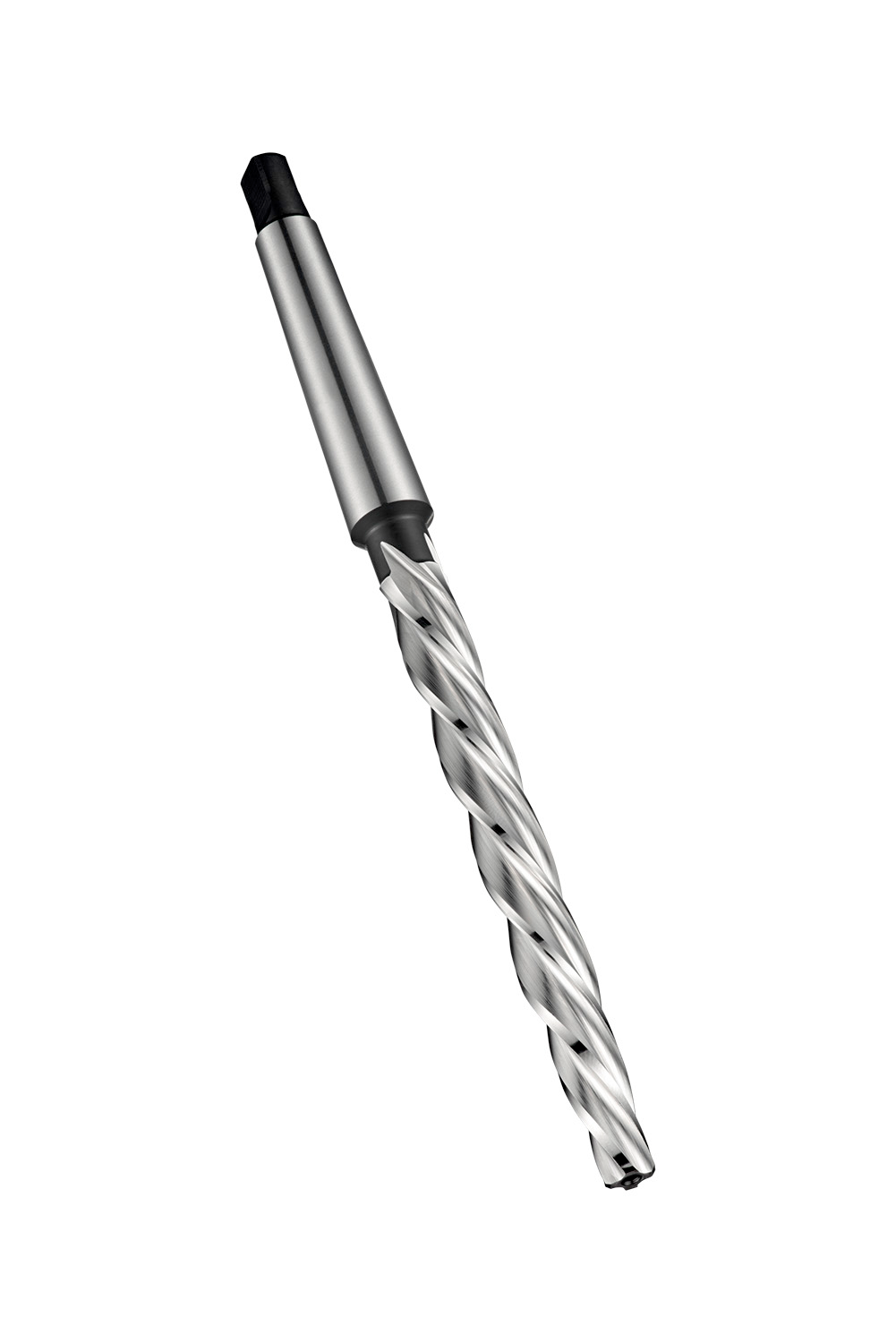

Bridge reamer with left hand fast spiral flutes and a Morse taper shank, nominal diameter 21.00mm with an overall length of 271mm, a flute length of 155mm and 62mm starting taper (1:10), according to DIN 311 standard for correcting misaligned holes in steel building structures within k11 tolerance, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.4070 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760049136
Product number (SAP): 86012625
Ordering code ANSI: B12121.0
Gross weight – grams: 556
Cutting diameter – millimeter (DC): 21 mm
Overall length – millimeter (OAL): 271 mm
Length chip flute – millimeter (LCF): 155 mm
Distance Reference Point PK – millimeters (LDC): 62 mm
Flute count (NOF): 4
Connection size code machine side (CZC MS): MK 3
ISO: B12121.0

Brand

DORMER
