DORMER B12125.0 HSS Reamers

Product Code: B12125.0

$563.10$511.91 Ex. GST

Product Code: B12125.0 SKU B12125.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

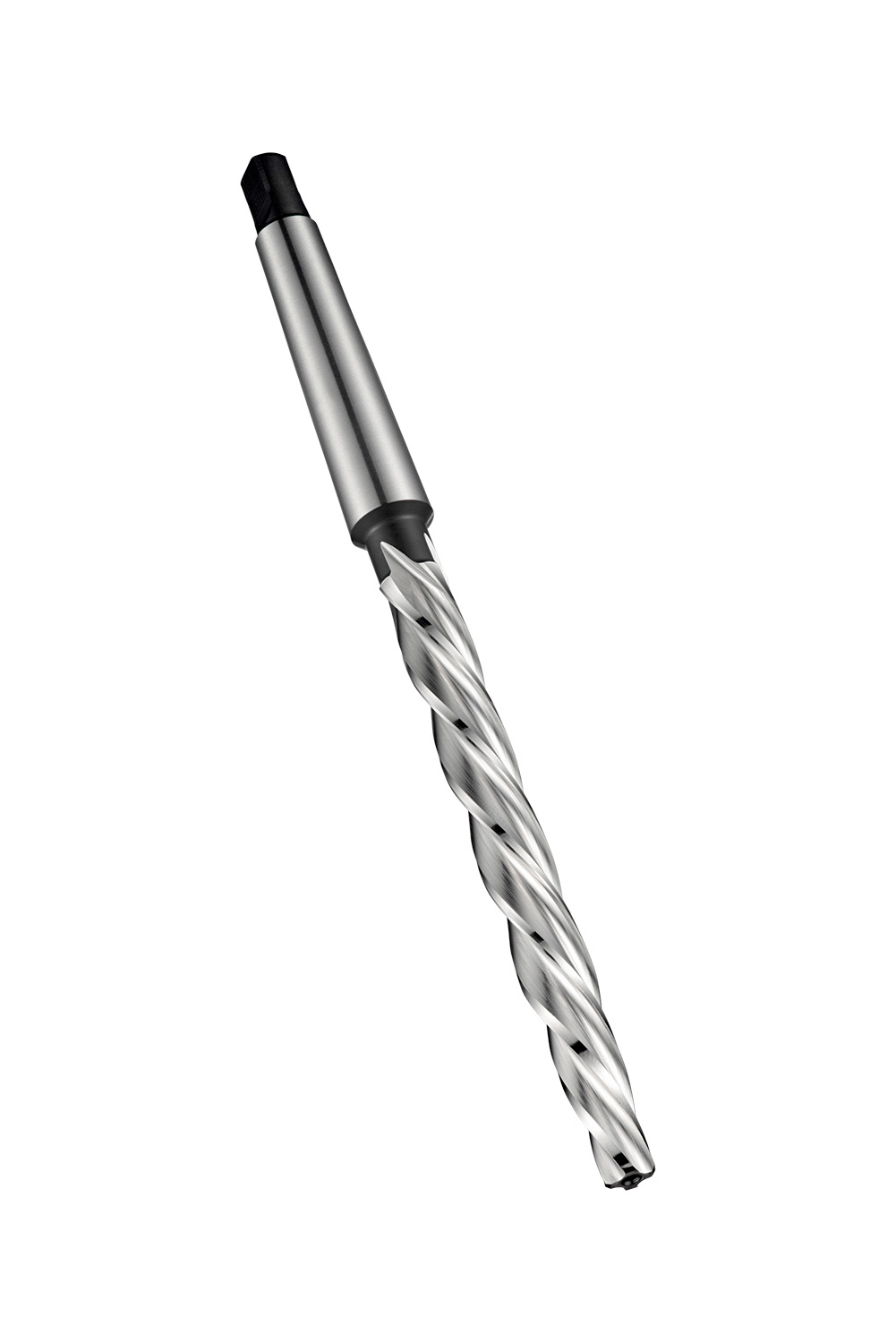

Bridge reamer with left hand fast spiral flutes and a Morse taper shank, nominal diameter 25.00mm with an overall length of 296mm, a flute length of 180mm and 72mm starting taper (1:10), according to DIN 311 standard for correcting misaligned holes in steel building structures within k11 tolerance, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.5467 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760049174
Product number (SAP): 86012629
Ordering code ANSI: B12125.0
Gross weight – grams: 698.7
Cutting diameter – millimeter (DC): 25 mm
Overall length – millimeter (OAL): 296 mm
Length chip flute – millimeter (LCF): 180 mm
Distance Reference Point PK – millimeters (LDC): 72 mm
Flute count (NOF): 4
Connection size code machine side (CZC MS): MK 3
ISO: B12125.0

Brand

DORMER
