DORMER B1221 HSS Reamers

Product Code: B1221

$1,268.96$1,153.60 Ex. GST

Product Code: B1221 SKU B1221 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

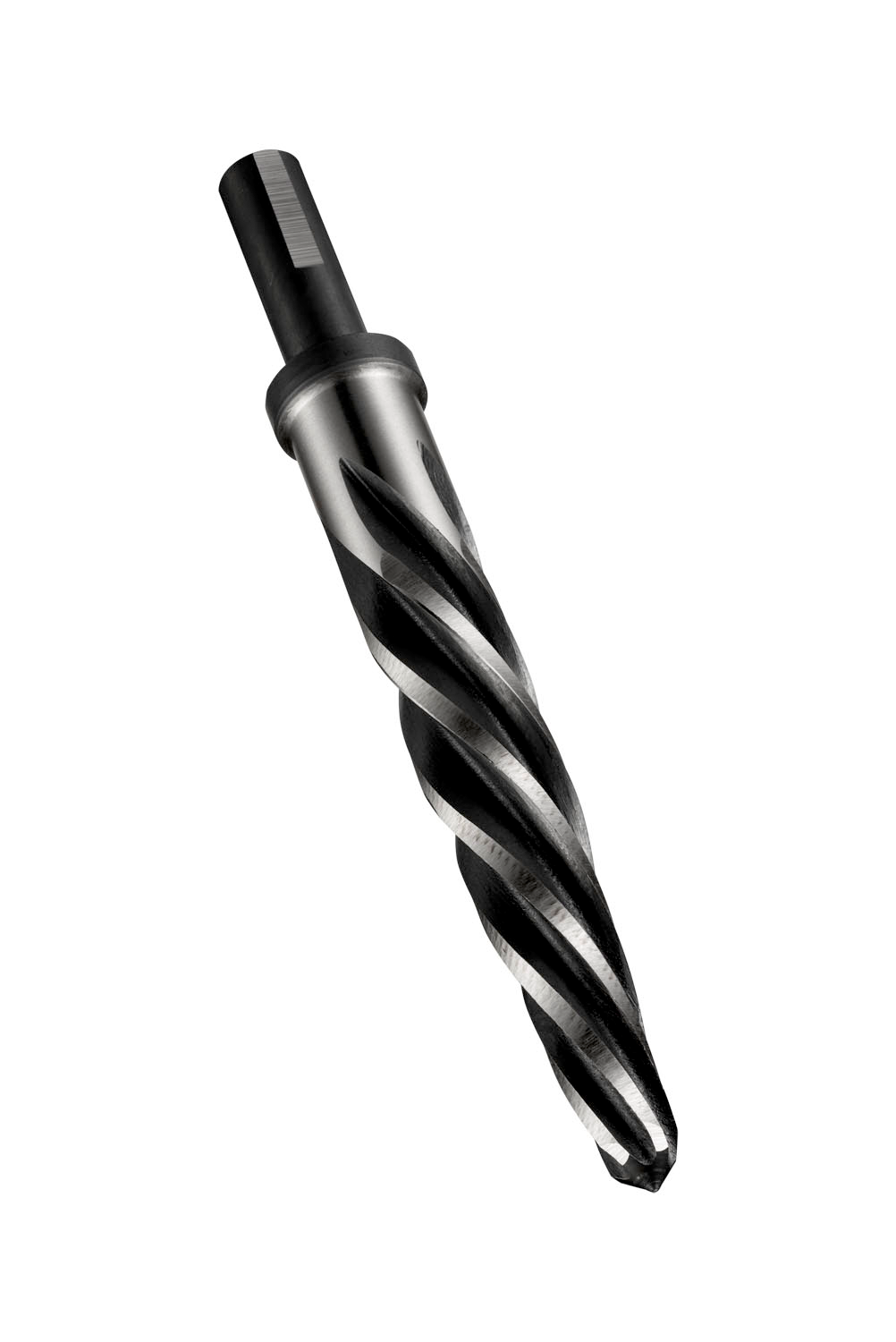

Car reamer with left hand slow spiral flutes and a reduced Tri-flats shank, nominal diameter 1.0000″ (1″) with an overall length of 6.7/8″, a flute length of 4.1/2″ and 3.7/8″ starting taper, according to ANSI standard for enlarging holes or correcting misalignments, HSS with steam tempered-bronze finish for machining free machining and plain carbon steel, copper or copper alloys

Additional information

Weight 1.2320 kg
barcode
Additional Information

Description: Value
EAN number: 7320760252345
Product number (SAP): 86012632
Ordering code ANSI: B1221
Gross weight – grams: 400
Cutting diameter – fractional inch (DC): 1"
Cutting diameter – inch (DC): 1 inch
Overall length – fractional inch (OAL): 6.7/8
Length chip flute – fractional inch (LCF): 4.1/2
Flute count (NOF): 5
Connection diameter – fractional inch (DCON MS): 1/2
ISO: B1221

Brand

DORMER
