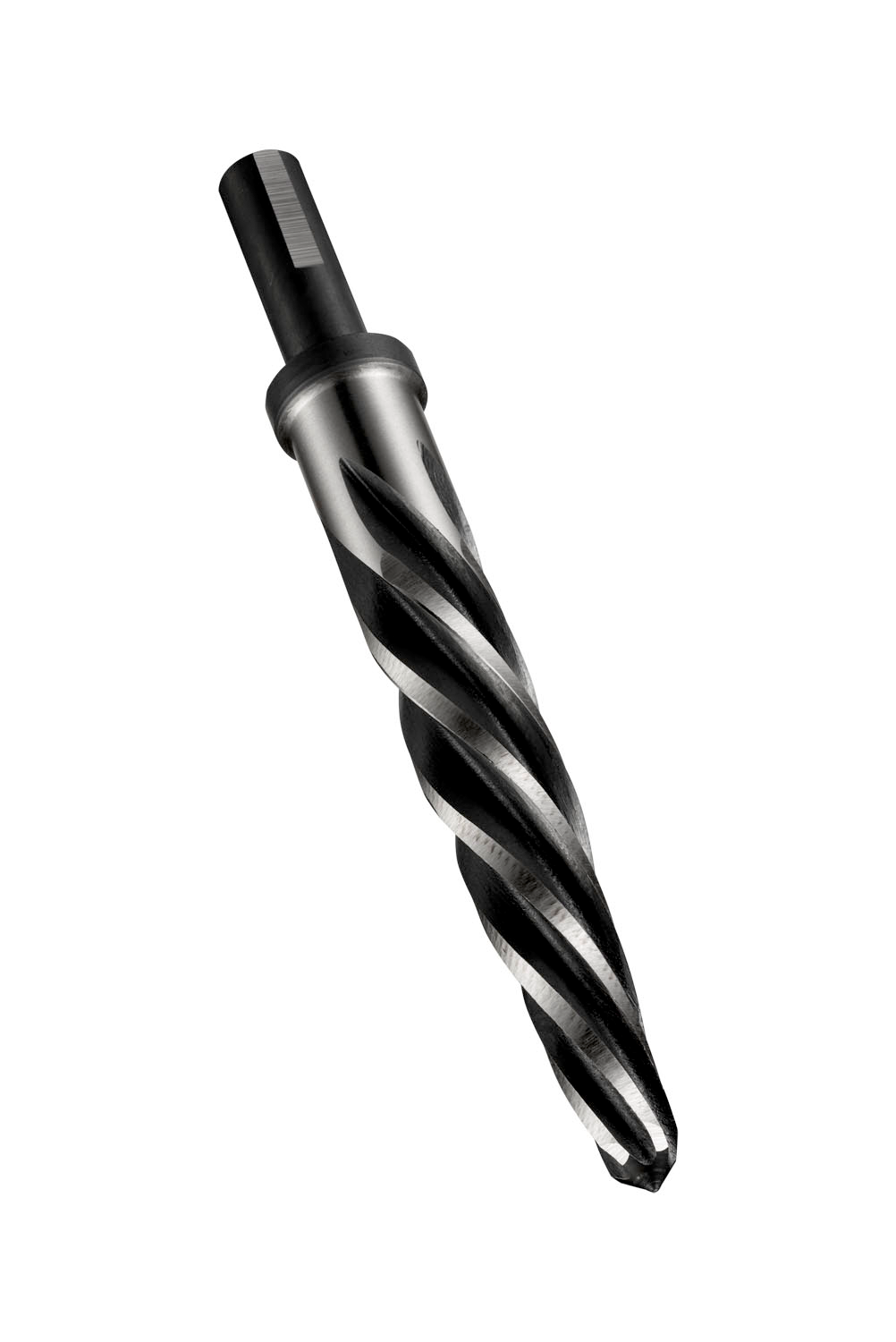

DORMER B1223/8 HSS Reamers

Product Code: B1223/8

$292.31$265.74 Ex. GST

Product Code: B1223/8 SKU B1223/8 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Car reamer with left hand slow spiral flutes and a reduced Tri-flats shank, nominal diameter 0.3750″ (3/8″) with an overall length of 4.5/8″, a flute length of 2.1/2″ and 2″ starting taper, according to ANSI standard for enlarging holes or correcting misalignments, HSS with steam tempered-bronze finish for machining free machining and plain carbon steel, copper or copper alloys

Additional information

Weight 0.2838 kg
barcode
Additional Information

Description: Value
EAN number: 7320760426296
Product number (SAP): 86012639
Ordering code ANSI: B1223/8
Gross weight – grams: 62
Cutting diameter – fractional inch (DC): 3/8
Cutting diameter – inch (DC): 0.375 inch
Overall length – fractional inch (OAL): 4.5/8
Length chip flute – fractional inch (LCF): 2.1/2
Flute count (NOF): 4
Connection diameter – fractional inch (DCON MS): 3/8
ISO: B1223/8

Brand

DORMER
