DORMER B1229/16 HSS Reamers

Product Code: B1229/16

$420.34$382.13 Ex. GST

Product Code: B1229/16 SKU B1229/16 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

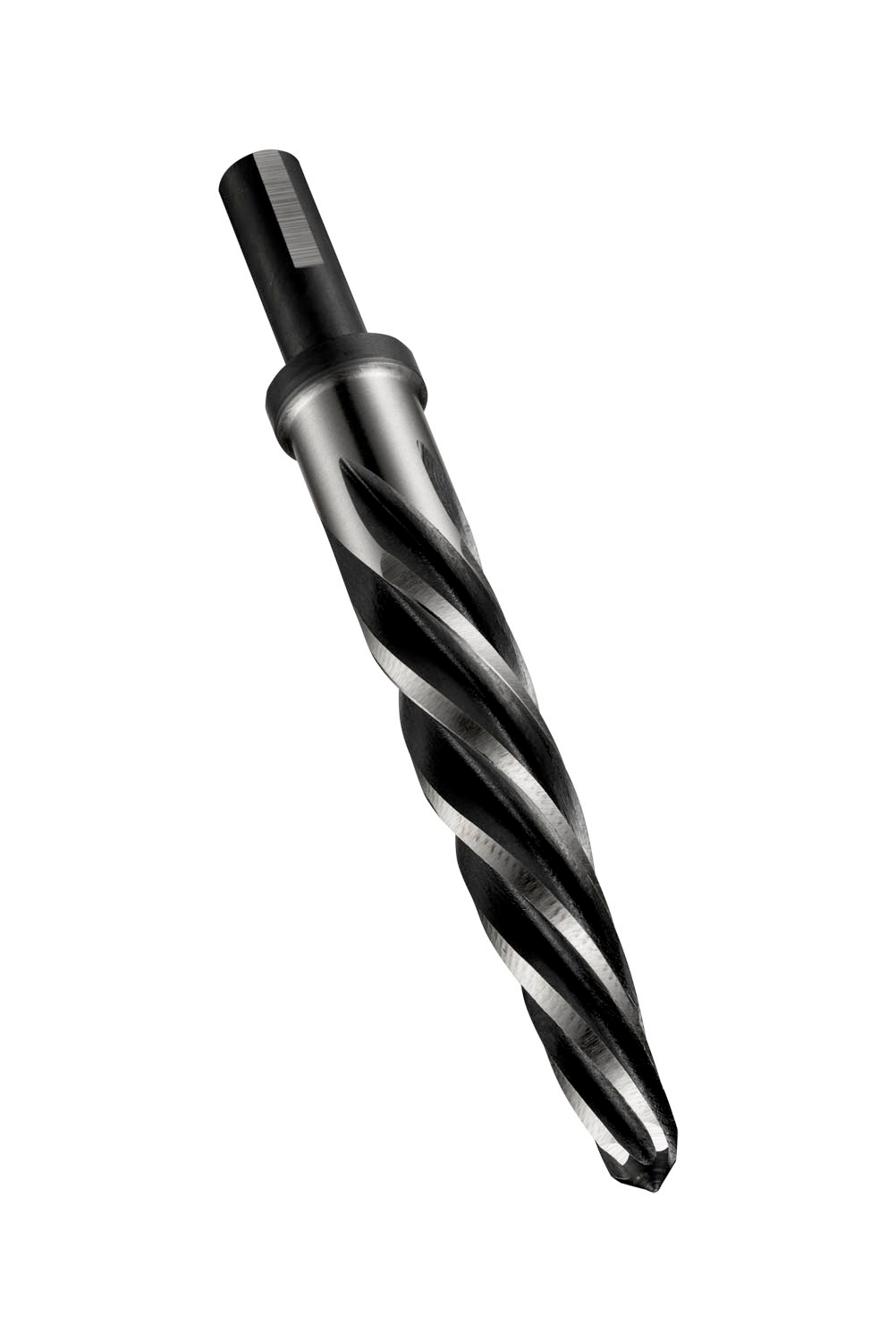

Car reamer with left hand slow spiral flutes and a reduced Tri-flats shank, nominal diameter 0.5625″ (9/16″) with an overall length of 5.7/8″, a flute length of 3.3/4″ and 3.3/16″ starting taper, according to ANSI standard for enlarging holes or correcting misalignments, HSS with steam tempered-bronze finish for machining free machining and plain carbon steel, copper or copper alloys

Additional information

Weight 0.4081 kg
barcode
Additional Information

Description: Value
EAN number: 7320760252437
Product number (SAP): 86012642
Ordering code ANSI: B1229/16
Gross weight – grams: 142
Cutting diameter – fractional inch (DC): 9/16
Cutting diameter – inch (DC): 0.5625 inch
Overall length – fractional inch (OAL): 5.7/8
Length chip flute – fractional inch (LCF): 3.3/4
Flute count (NOF): 5
Connection diameter – fractional inch (DCON MS): 1/2
ISO: B1229/16

Brand

DORMER
