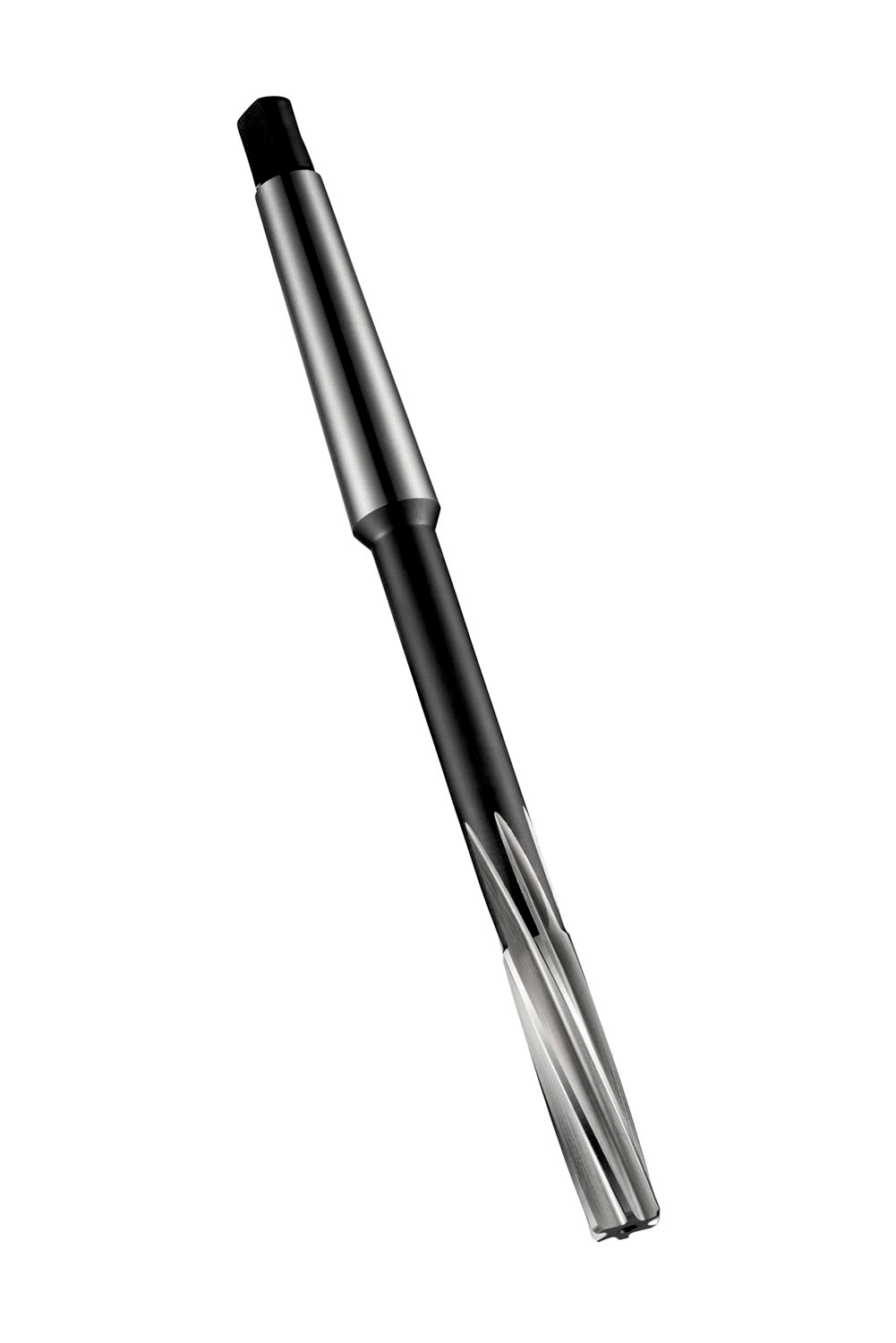

DORMER B16111.0 HSS Reamers

Product Code: B16111.0

$160.89$146.26 Ex. GST

Product Code: B16111.0 SKU B16111.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 11.00mm with an overall length of 175mm, a flute length of 41mm and 109.5mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1562 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760049778
Product number (SAP): 86012663
Ordering code ANSI: B16111.0
Gross weight – grams: 112
Cutting diameter – millimeter (DC): 11 mm
Overall length – millimeter (OAL): 175 mm
Length chip flute – millimeter (LCF): 41 mm
Body length – millimeter (LB): 109.5 mm
Flute count (NOF): 6
Connection size code machine side (CZC MS): MK 1
ISO: B16111.0

Brand

DORMER
