DORMER B16115.0 HSS Reamers

Product Code: B16115.0

$182.41$165.83 Ex. GST

Product Code: B16115.0 SKU B16115.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

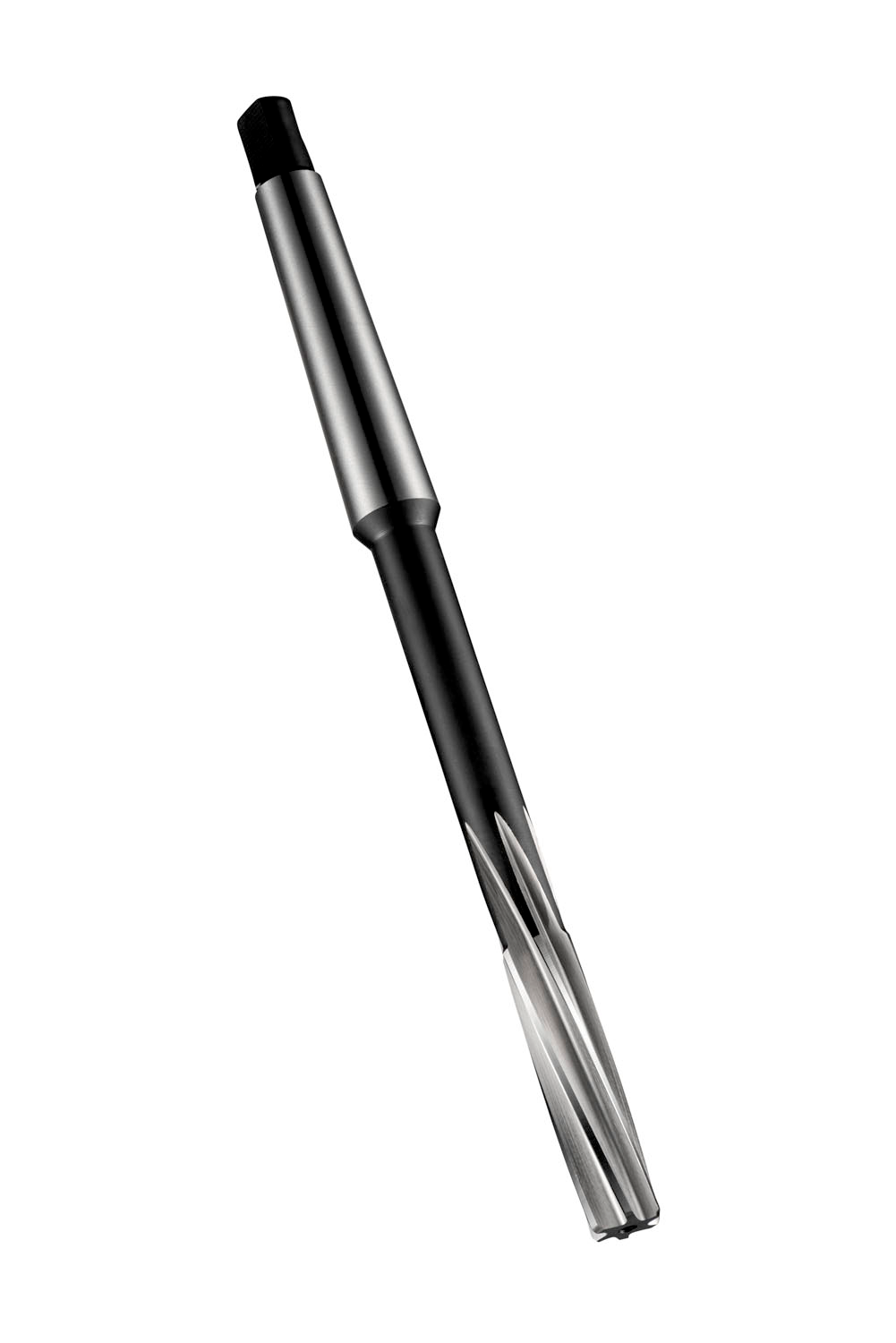

Machine reamer with left hand slow spiral flutes and a Morse taper shank, diameter 15.00mm with an overall length of 204mm, a flute length of 50mm and 124mm reach with neck relief, according to DIN 208 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys

Additional information

Weight 0.1771 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760049365
Product number (SAP): 86012667
Ordering code ANSI: B16115.0
Gross weight – grams: 271.6
Cutting diameter – millimeter (DC): 15 mm
Overall length – millimeter (OAL): 204 mm
Length chip flute – millimeter (LCF): 50 mm
Body length – millimeter (LB): 124 mm
Flute count (NOF): 8
Connection size code machine side (CZC MS): MK 2
ISO: B16115.0

Brand

DORMER
